Quick Details
-
Rated Lifting Moment:
-
400 Kn.m
-
Span:
-
36m
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CABR/M
-
Weight (KG):
-
0 kg
-
Color:
-
Optional
Quick Details
-
Rated Loading Capacity:
-
1.1-4t
-
Max. Lifting Height:
-
24M
-
Application:
-
Construction
-
Rated Lifting Moment:
-
400 Kn.m
-
Span:
-
36m
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CABR/M
-
Weight (KG):
-
0 kg
-
Color:
-
Optional
Product Description
QTK series self erected tower crane has the following features:

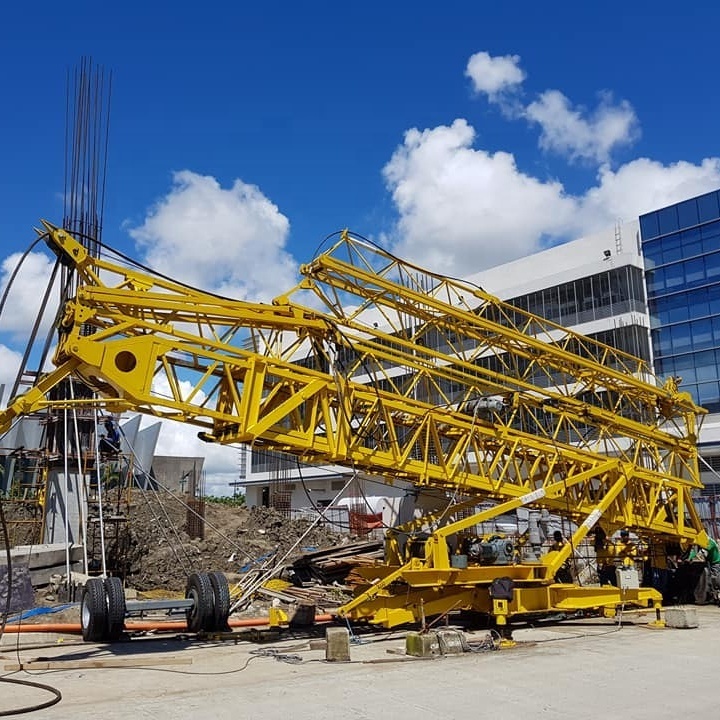

1.The main feature of self erected crane is easy to be quickly erected and be completely delivered. When the
self erected crane
is folded, it can be delivered to the construction site by a truck,then it can be self assembled(including outer tower mast's erecting, inner tower mast's stretching from outer mast, jib's unfolding and counter weight installation) within a certain time by its own mechanism with the assistance of one mobile crane and two workers.
2.The inner tower mast can lock or unlock automatically when it has stretched or retracted in accurate position.
3.Jib can unfold or fold in the air automatically in the process of tower masts' stretching or retracting.
4.S elf erected crane is erected by a winch and a whole set of wire rope pulley system.
5. Self erected crane can change from rail travelling to fixed supports and vice versa according to requirements.
6.The hoisting system of self erected crane has a variable-pole-speed motor.It can shift working speed with load.
7 The slewing system of self erected crane has a hydraulic clutch and brake to ensure smooth start.
8.The safety devices of self erected crane are complete,sensitive and reliable.
2.The inner tower mast can lock or unlock automatically when it has stretched or retracted in accurate position.
3.Jib can unfold or fold in the air automatically in the process of tower masts' stretching or retracting.
4.S elf erected crane is erected by a winch and a whole set of wire rope pulley system.
5. Self erected crane can change from rail travelling to fixed supports and vice versa according to requirements.
6.The hoisting system of self erected crane has a variable-pole-speed motor.It can shift working speed with load.
7 The slewing system of self erected crane has a hydraulic clutch and brake to ensure smooth start.
8.The safety devices of self erected crane are complete,sensitive and reliable.
QTK25
QTK40
Specification
|
|
Unit
|
QTK25
|
QTK40
|
|
Rated Lifting Capacity
|
t
|
1~3
|
1.1~4
|
|
Working Radius
|
m
|
3~25
|
4~36
|
|
Lifting Height
|
m
|
23
|
24
|
|
Gauge *Axle Base
|
m
|
3.2*3.2
|
3.8*3.8
|
|
Max. working wind scale
|
|
6
|
6
|
|
Dead Weight
|
t
|
10.5
|
14.63
|
|
Counter Weight
|
t
|
14.4
|
25.74
|
|
Tail Radius
|
m
|
3
|
3.2
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
