- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Other Country
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz (others are available)
-
Dimension(L*W*H):
-
6000*2900*3300
-
Weight:
-
3000 kg
-
Name:
-
Single Column Auto Cutting Machine
-
Function:
-
Cutting Granite or Marble Block
-
Keyword:
-
CNC Cutting Machine
-
Model:
-
QZQ-1600/1800
-
Color:
-
Yellow
-
Control system:
-
PLC(imported Brand)
-
Cutting materials:
-
Stone Marble Granite Block
-
Feature:
-
High Cutting Efficiency, Easy Operation
-
Main motor power:
-
22kw
-
Blade diameter:
-
1600+940/1800mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
22kw
-
Cutting thickness (max):
-
450mm
-
Place of Origin:
-
Other Country
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz (others are available)
-
Dimension(L*W*H):
-
6000*2900*3300
-
Weight:
-
3000 kg
-
Name:
-
Single Column Auto Cutting Machine
-
Function:
-
Cutting Granite or Marble Block
-
Keyword:
-
CNC Cutting Machine
-
Model:
-
QZQ-1600/1800
-
Color:
-
Yellow
-
Control system:
-
PLC(imported Brand)
-
Cutting materials:
-
Stone Marble Granite Block
-
Feature:
-
High Cutting Efficiency, Easy Operation
-
Main motor power:
-
22kw
-
Blade diameter:
-
1600+940/1800mm
Product Description

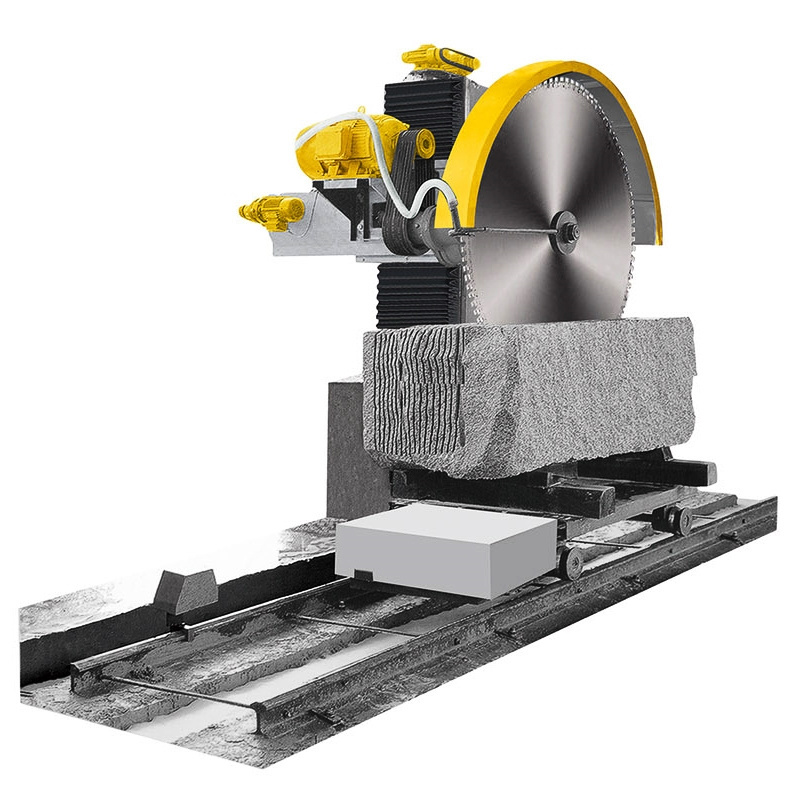

QZQ-1600 Single Column Auto Cutting Machine
This machine combines advantages of several types of stone cutting machines. Single column supporting structure, and two-stage variable speed gear for headstock to make cutting more smoothly. Its main advantages are cutting automatically according to pre-set cutting depth and slicing thickness, low energy comsuption, high cutting efficiency, easy operation and maintenance.
Technical Parameters
|
Model |
Unit |
QZQ-1600 |
QZQ-1800 |
|
Max. diameter of blade |
mm |
φ1600 |
φ1800 |
|
Max. No. of blades |
pcs |
2 |
1 |
|
Recommended Blade Combination |
mm |
φ1600 + φ940 |
φ1800 |
|
Main motor power |
kw |
22 |
22 |
|
General power |
kw |
25.15 |
25.15 |
|
Max. processing sizes (L x W x H) |
mm |
3000 x 1200 x 650 |
3000 x 1200 x 750 |
|
Max. lifting stroke |
mm |
900 |
900 |
|
Overall dimensions (L x W x H) |
mm |
6000 x 2900 x 3300 |
6000 x 2900 x 3300 |
|
Water consumption |
m³/h |
6 |
6 |
|
Total weight |
kg |
3000 |
3000 |
