Quick Details
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Shanghai,China
-
Brand Name:
-
DingZun
-
Model Number:
-
Y-01
-
Product name:
-
UL1332 FEP High Voltage Wire UL758 Series
-
Rated Temperature:
-
200C
-
Rated Voltage:
-
600V
-
Keyword:
-
1332 fep high voltage wire heating
-
MOQ:
-
300M
-
Feature:
-
copper conductor wire thin flexible
-
OEM:
-
we can produce any your designs
-
Inspection:
-
strict inspection personnel and protection
-
Sample:
-
can be provided for evaluating
-
Port:
-
Shanghai
Quick Details
-
Application:
-
instrumentation
-
Conductor Material:
-
silver copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Shanghai,China
-
Brand Name:
-
DingZun
-
Model Number:
-
Y-01
-
Product name:
-
UL1332 FEP High Voltage Wire UL758 Series
-
Rated Temperature:
-
200C
-
Rated Voltage:
-
600V
-
Keyword:
-
1332 fep high voltage wire heating
-
MOQ:
-
300M
-
Feature:
-
copper conductor wire thin flexible
-
OEM:
-
we can produce any your designs
-
Inspection:
-
strict inspection personnel and protection
-
Sample:
-
can be provided for evaluating
-
Port:
-
Shanghai

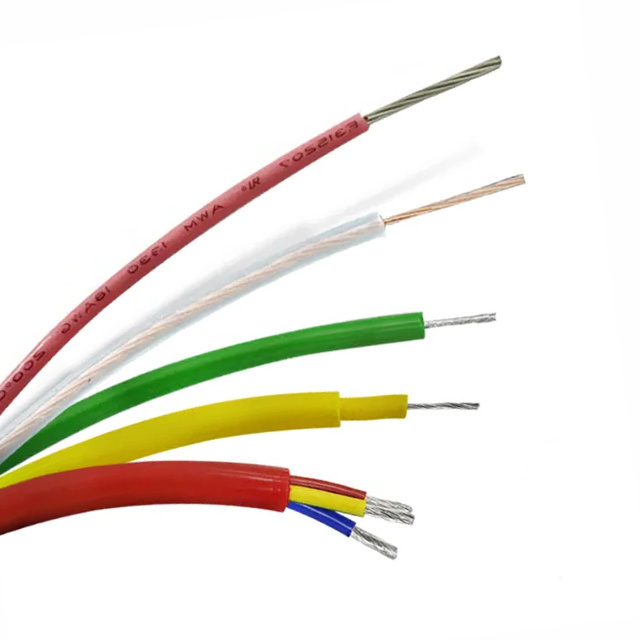

Product Description
|
Product name
|
UL1332 High Voltage Wire Heating Wire
|
|
Brand Name
|
Dingzun
|
|
Rated Temperature
|
-65℃∽+200℃
|
|
Rated Voltage
|
600V
|
|
Conductor
|
Siliver Copper
|
|
Size
|
NOT SPECIFIED
|
|
Insulation
|
FEP
|
|
Type
|
Stranded
|
|
Application
|
HIGH TEMPERATURE APPLIANCES
|
Specification
|
Conductor
|
|
|
Insulation
|
|
Max.Cond Resistance
|
Unit length
|
|||
|
Size
(AWG) |
Construction
(No./mm) |
Diameter
(mm) |
Nominal Thickness
(mm) |
Diameter
(mm) |
(Ω/KM)
|
(M)(Ft)
|
|||
|
30
|
1/0.26
|
0.26
|
0.305
|
0.87
|
361
|
610/2000
|
|||
|
|
7/0.10
|
0.3
|
|
0.91
|
|
|
|||
|
28
|
1/0.32
|
0.32
|
0.305
|
0.93
|
227
|
610/2000
|
|||
|
|
7/0.12
|
0.36
|
|
1.38
|
|
|
|||
|
26
|
7/0.16
|
0.48
|
0.305
|
1.09
|
143
|
610/2000
|
|||
|
|
19/0.10
|
0.48
|
|
1.11
|
|
|
|||
|
24
|
1/0.50
|
0.5
|
0.305
|
1.11
|
89.3
|
610/2000
|
|||
|
|
7/0.20
|
0.6
|
|
1.21
|
|
|
|||
|
|
19/0.12
|
0.6
|
|
1.21
|
|
|
|||
|
22
|
1/0.65
|
0.65
|
0.33
|
1.31
|
56.4
|
305/1000
|
|||
|
|
7/0.254
|
0.76
|
|
1.42
|
|
|
|||
|
|
19/0.15
|
0.75
|
|
1.41
|
|
|
|||
|
20
|
1/0.81
|
0.81
|
0.33
|
1.47
|
35.2
|
305/1000
|
|||
|
|
7/0.31
|
0.93
|
|
1.59
|
|
|
|||
|
|
19/0.19
|
0.93
|
|
1.59
|
|
|
|||
|
18
|
1/1.02
|
1.02
|
0.33
|
1.68
|
22.2
|
305/1000
|
|||
|
|
7/0.39
|
1.17
|
|
1.83
|
|
|
|||
|
|
19/0.235
|
1.17
|
|
1.83
|
|
|
|||
|
16
|
1/1.30
|
1.3
|
0.33
|
1.96
|
14
|
305/1000
|
|||
|
|
7/0.49
|
1.47
|
|
2.13
|
|
|
|||
|
|
19/0.30
|
1.5
|
|
2.16
|
|
|
|||
|
14
|
19/0.37
|
1.85
|
0.33
|
2.51
|
8.78
|
305/1000
|
|||
|
12
|
19/0.47
|
2.35
|
0.33
|
3.01
|
5.53
|
305/1000
|
|||
|
10
|
19/0.61
|
3.05
|
0.33
|
3.71
|
3.476
|
305/1000
|
|||
