Quick Details
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
80 kN
-
Theoretical Shot Volume(cm³):
-
788 cm³
-
Injection Rate (g/s):
-
210 g/s
-
Injection Weight (g):
-
709 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
56 mm
-
Weight (KG):
-
9000
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
560 mm
-
Model Number:
-
BST-3000A
-
Brand Name:
-
BST MACHINE
-
Power (kW):
-
40 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Product name:
-
plstic toy manufacturing machine
-
Machine weight:
-
9t
-
Oil tank capacity:
-
370L
-
Name:
-
machinery for making plastic toy
-
Keyword:
-
machine make plastic toy
-
Injection pressure:
-
176-160Mpa
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Certification:
-
ISO9001/CE /TUV
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
580mm
-
Distance between Tie Bars(Height)(mm):
-
580mm
-
Ejector Number:
-
9
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
80 kN
-
Theoretical Shot Volume(cm³):
-
788 cm³
-
Injection Rate (g/s):
-
210 g/s
-
Injection Weight (g):
-
709 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
56 mm
-
Weight (KG):
-
9000
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
560 mm
-
Model Number:
-
BST-3000A
-
Brand Name:
-
BST MACHINE
-
Power (kW):
-
40 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Product name:
-
plstic toy manufacturing machine
-
Machine weight:
-
9t
-
Oil tank capacity:
-
370L
-
Name:
-
machinery for making plastic toy
-
Keyword:
-
machine make plastic toy
-
Injection pressure:
-
176-160Mpa
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Certification:
-
ISO9001/CE /TUV
plastic toy manufacturing machine/machinery for making plastic toy/toy for kids

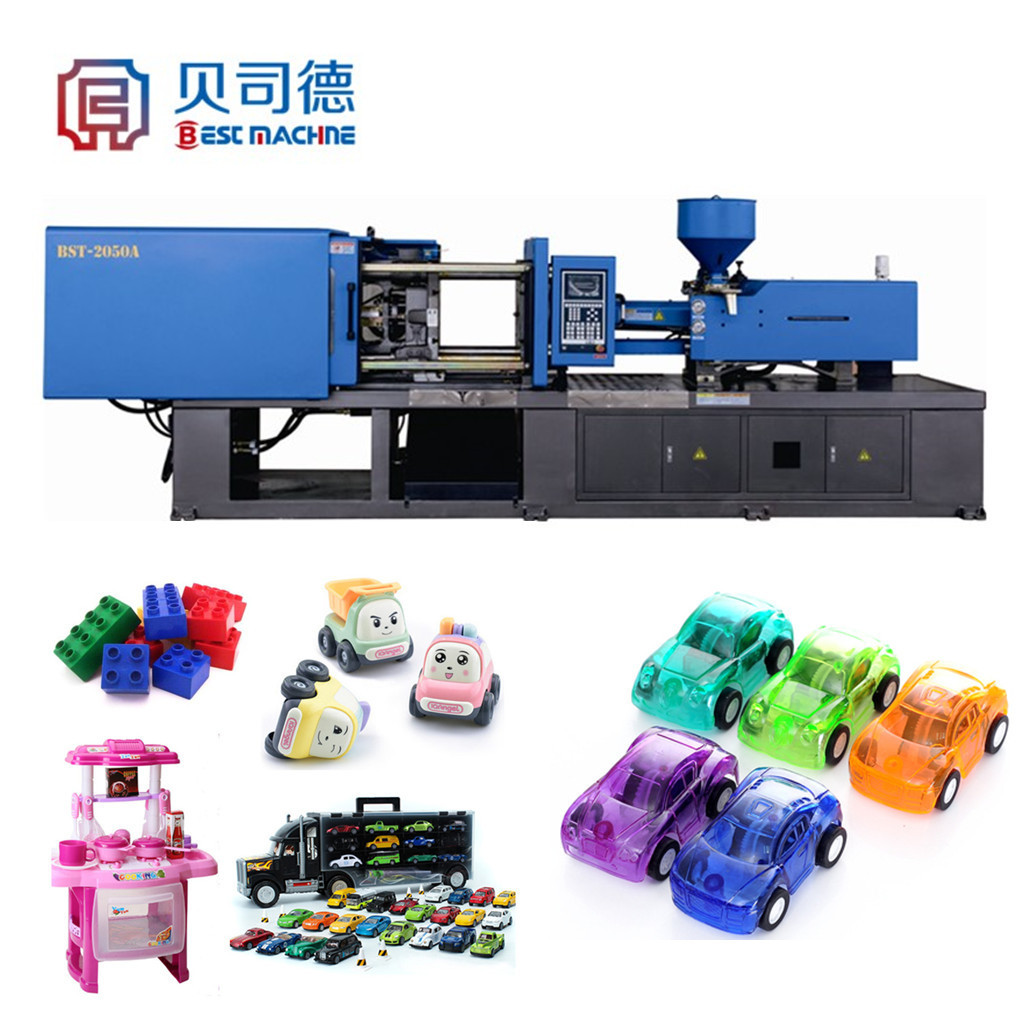

Product Pictures
plstic toy manufacturing machine
Product Description
1. advantages
Strong Technical design ability, Stable quality, and large production capability, Famous brand.
CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.
HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference the rotating speed of the servo motor. in this way , the control of injection moulding is not only acurate but also fast, and the repeatability of the products high as well.
2. Technical parameters
| MODEL | |||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 56 | 58 |
| Shot size(theoretical) | Cm³ | 788 | 845 |
| Shot weight | g | 709 | 760 |
| Injection pressure | Mpa | 178 | 166 |
| Injection rate | g/s | 210 | 226 |
| Screw L/D ratio | L/D | 21.6 | 21 |
| Screw speed | r.p.m | 0-180 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING | |||
| Clamp tonnage | KN | 3000 | |
| Toggle stroke | mm | 560 | |
| Mould Thickness | mm | 220-600 | |
| Space between tie-bars | mm | 580*580 | |
| Ejector stroke | mm | 160 | |
| Ejector tonnage | KN | 80 | |
| Ejector number | Piece | 9 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 15.5 | |
| Max. pump pressure | Mpa | 16 | |
| Pump motor power | KW | 25 | |
| Valve Size | mm | 16 | |
| Machine dimension | m | 6.5*1.8*1.8 | |
| Machine weight | t | 9 | |
| Oil tank capacity | L | 370 | |
3.Production description
Features
- Adopting advanced microcomputer control system , it has stable performance .
- Heated by infrared lamp tube , it has strong penetration power . The blanks are heated while spinning . The track revolutes . It heats evenly , quickly and reliably .
- The width and height of the lamp tubes and reflectors in the heating area are adjustable in order to heat blanks of different structures . It has thermostat to ensure constant temperature in the heating channel .
- Each mechnical action has self-locking device . When one procedure fails , the program will automatically switch to safe status . All actions are driven by cylinders without oil pump . It is featured with non-pollution and low noise .
- While designing the air channel , we devide action and blowing into three parts to meet the need of blowing and action for different air pressure .
- Adopting high pressure and double-crank link for die locking , it can strongly lock dies .
- Manual operation and automatic operation are available .
4.Auxiliary equipment
