Quick Details
-
Voltage:
-
380V/220V
-
Power:
-
22000W
-
Dimension(L*W*H):
-
5200mm*1900mm*2100mm
-
Weight:
-
5239 kg
-
Marketing Type:
-
Hot Product
-
paper layer:
-
3-26layers
-
inner diameter:
-
30-200(mm)
-
thickness:
-
2-15(mm)
-
speed:
-
0-35(m/min)
-
Fixed length mode:
-
Numerical control
-
Cutting method:
-
Circular knife CNC automatic
-
Gluing method:
-
Double-sided glue
-
way to control:
-
numerical control
-
Linear guide:
-
square
-
Drive hub:
-
four-wheel drive
Quick Details
-
Production Capacity:
-
0-35m/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tiansheng
-
Voltage:
-
380V/220V
-
Power:
-
22000W
-
Dimension(L*W*H):
-
5200mm*1900mm*2100mm
-
Weight:
-
5239 kg
-
Marketing Type:
-
Hot Product
-
paper layer:
-
3-26layers
-
inner diameter:
-
30-200(mm)
-
thickness:
-
2-15(mm)
-
speed:
-
0-35(m/min)
-
Fixed length mode:
-
Numerical control
-
Cutting method:
-
Circular knife CNC automatic
-
Gluing method:
-
Double-sided glue
-
way to control:
-
numerical control
-
Linear guide:
-
square
-
Drive hub:
-
four-wheel drive

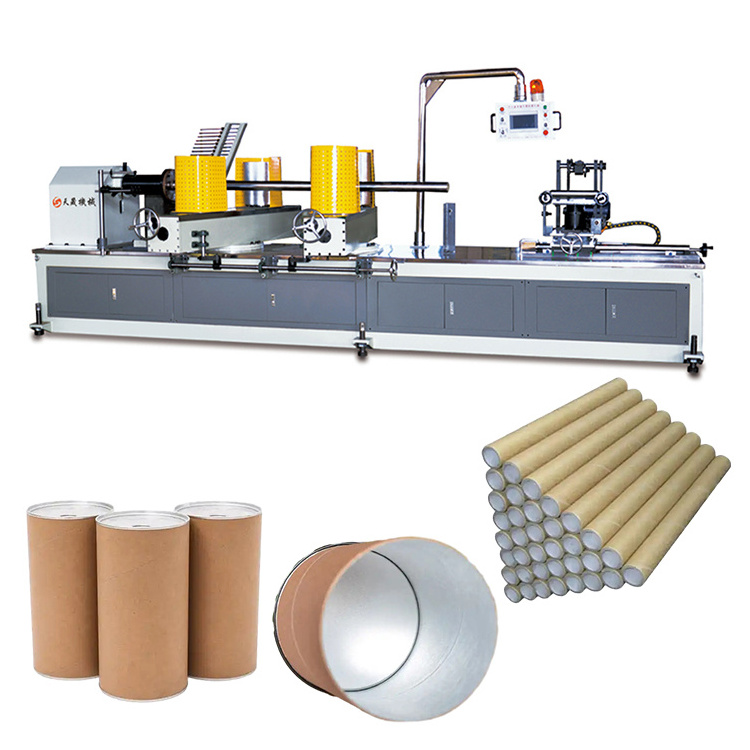

High accuracy 35m/min toilet paper core winder machine automatic paper tube core making machine
Four-head CNC Paper Tube Machine
Details Images
Paper tube machine adopts paper tube in the form of drum, through electronic control operating system control, the host consist of paper frame, glue, drum, photoelectric tube cutting, and tube under a series of process, in the production of paper tube thickness, tube cutting length can be adjusted freely according to user requirement, speed is fast, simple and convenient procedure, high automation.
Finished Product Display
Product Paramenters
Technical Parameter
|
Paper layer
|
3-26layers
|
|
Inner diameter
|
30-200（mm）
|
|
Thickness
|
2-15（mm）
|
|
Speed
|
0-35（m/min）
|
|
Fixed length mode
|
Numerical control
|
|
Winding head
|
Four head
|
|
Cutting method
|
Circular knife CNC automatic
|
|
Gluing method
|
Double-sided glue
|
|
Way to control
|
Numerical control
|
|
Input voltage
|
380V/220V
|
|
Number of operators
|
1-3
|
|
Total weight
|
5239kg
|
Control System
|
Main engine power
|
22kw
|
|
Electrical components
|
Omron/Chint
|
|
Button/emergency stop
|
Siemens
|
|
Frequency converter
|
Robicon/ERG
|
|
Signal element
|
Omron/Pefun
|
|
Pneumatic Components
|
Airtac/tianao/detai/chengdi
|
|
PLC controller
|
Special products
|
|
HMI
|
Special products
|
Configuration Device
|
Host size
|
5200mm*1900mm*2100mm
|
|
Area size
|
20000mm*9000mm
|
|
Upper paper shelf
|
Right-angle belt hoisting
|
|
Glue frame
|
Automatic gluing
|
|
Bottom paper break
|
Automatic alarm
|
|
Bottom surface paper
|
Stainless steel pot device
|
|
Paper guide wheel
|
Stainless steel pipe
|
|
Host table
|
Stainless steel plate
|
|
Host angle
|
Electric adjustment
|
|
Core winding die fixing
|
Flange
|
|
Mandrel
|
1
|
|
Tube belt
|
2 pieces
|
|
Unloading rack
|
Stainless steel automatic
|
|
application tools
|
1set
|
