Quick Details
-
Brand Name:
-
Linshang
-
Model Number:
-
LS117
-
Density Measuring range:
-
0.00 --- 6.00 OD
-
Resolution:
-
0.0005% Transmission / 0.01 OD
-
Density Accuracy:
-
+/-0.02 (0 -2.00 OD);+/-2% (2.00-6.00 OD)
-
Transmittance Accuracy:
-
+/-1%(0% --- 50%); +/-2%(50% --- 100%)
-
Aperture:
-
2mm
-
Light source:
-
ANSI/ISO Visual
-
Power supply:
-
4*AAA alkaline battery
Quick Details
-
Warranty:
-
1 year
-
Type:
-
portable
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS117
-
Density Measuring range:
-
0.00 --- 6.00 OD
-
Resolution:
-
0.0005% Transmission / 0.01 OD
-
Density Accuracy:
-
+/-0.02 (0 -2.00 OD);+/-2% (2.00-6.00 OD)
-
Transmittance Accuracy:
-
+/-1%(0% --- 50%); +/-2%(50% --- 100%)
-
Aperture:
-
2mm
-
Light source:
-
ANSI/ISO Visual
-
Power supply:
-
4*AAA alkaline battery
Products Description

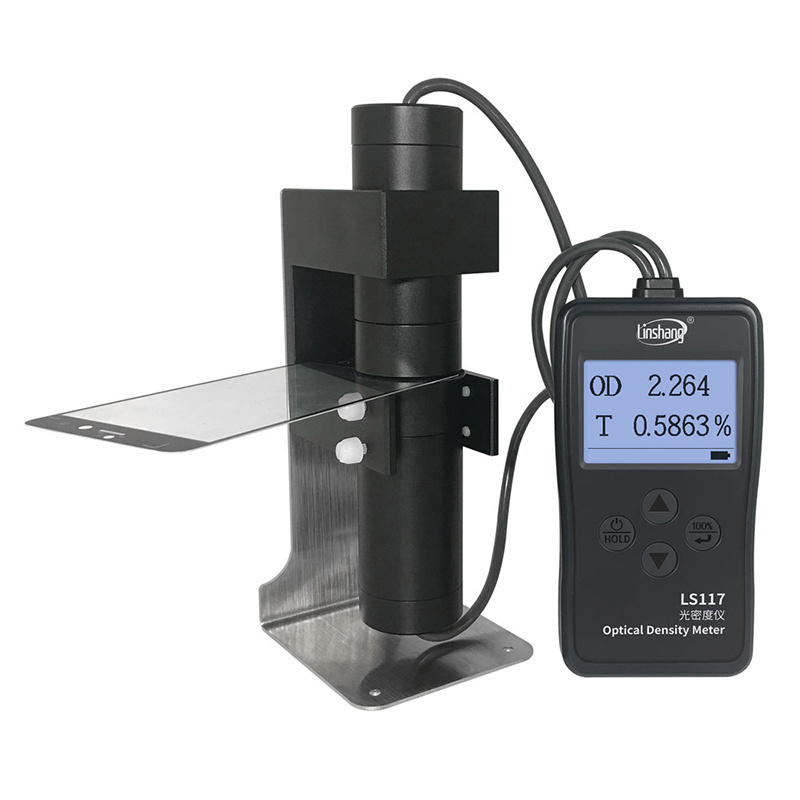

LS117 Portable Digital Optical Density Meter Price
LS117 densitometer is an instrument that can measure both optical density and light transmittance. The instrument adopt the diffuse transmission principle which is suitable for the optical density test of aluminized film, film, X-ray film, lens ink and
other materials. The light transmittance test of opalescent translucent materials and frosted matte materials, such as zirconia, opalescent acrylic and so on. The light source of the instrument complies with the CIE photopic luminosity function and can pass the inspection of Chinese national metrological institute.
other materials. The light transmittance test of opalescent translucent materials and frosted matte materials, such as zirconia, opalescent acrylic and so on. The light source of the instrument complies with the CIE photopic luminosity function and can pass the inspection of Chinese national metrological institute.
Features
1. The optical density meter has wide measuring range. The optical density value can be measured to OD 6. The transmittance resolution is up to 0.005%. 2. During the test, the interface displays both the transmittance value and the optical density value of the material.
3. The LS117 portable densitometer uses a diffuse transmission light path design, which has the same effect of the integrating sphere. There are relevant instructions in "GB / T 11500-2008 / ISO 5-2: 2001". The regulation has stated that “Use opale glass method instead of integrating sphere method as the basis of ISO standard diffuse transmission density”. 4. The light source complies with the CIE photopic luminosity function to ensure that it passes the testing of the Chinese Metrology Institute.
5. The optical density meter has two measurement methods which is more flexible to use.
(1) Fixed measurement: It is more suitable for testing regular or smaller objects.
(2) Hand-held measurement: take the probe down for testing, which is more suitable for irregular and large-volume materials.
6. Suitable for testing optical density of aluminized film, film, X-ray film, lens ink and other materials. The optical density meter is suitable for testing the light transmittance of opalescent translucent materials, matte materials.
Product Paramenters
|
Light transmittance measurement accuracy
|
±1% (0%-50%); ±2% (50%-100%)
|
|
Light transmittance resolution
|
0.0005% (0%-10%); 0.005% (10% -100%)
|
|
Optical density measurement range
|
0.000OD-6.000OD
|
|
Optical density measurement accuracy
|
±0.02 (0-2.00OD)
±2% (2.00-6.00OD) |
|
Optical density resolution
|
0.001 OD (0.00-2.00OD); 0.01 OD (2.00-4.00OD); 0.1 OD (4.00-6.00OD)
|
|
Aperture
|
2mm
|
|
Light Source
|
380nm-760nm, conforming to CIE photopic luminosity function
|
|
Weight
|
About 576g (without battery)
|
|
Power supply
|
4*AAA alkaline dry battery
|
|
Display
|
240*160 dot-matrixes LCD
|
|
Dimension
|
148mm×76mm×26mm (L*W*H)
|
