Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Function:
-
OFF-ON
-
Operating temperature:
-
-20°C ~+55°C
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Terminal type:
-
Pin Teminal
-
Voltage:
-
6v/12v/24/110v/220v/250v/380v
-
Mechanical life:
-
500000times
-
Customized:
-
Acceptable
-
Name:
-
Waterproof Pushbutton Switch
-
Type:
-
Manual Switch
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30mm
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
36V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Function:
-
OFF-ON
-
Operating temperature:
-
-20°C ~+55°C
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Terminal type:
-
Pin Teminal
-
Voltage:
-
6v/12v/24/110v/220v/250v/380v
-
Mechanical life:
-
500000times
-
Customized:
-
Acceptable
-
Name:
-
Waterproof Pushbutton Switch
-
Type:
-
Manual Switch
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30mm
-
Certification:
-
CCC

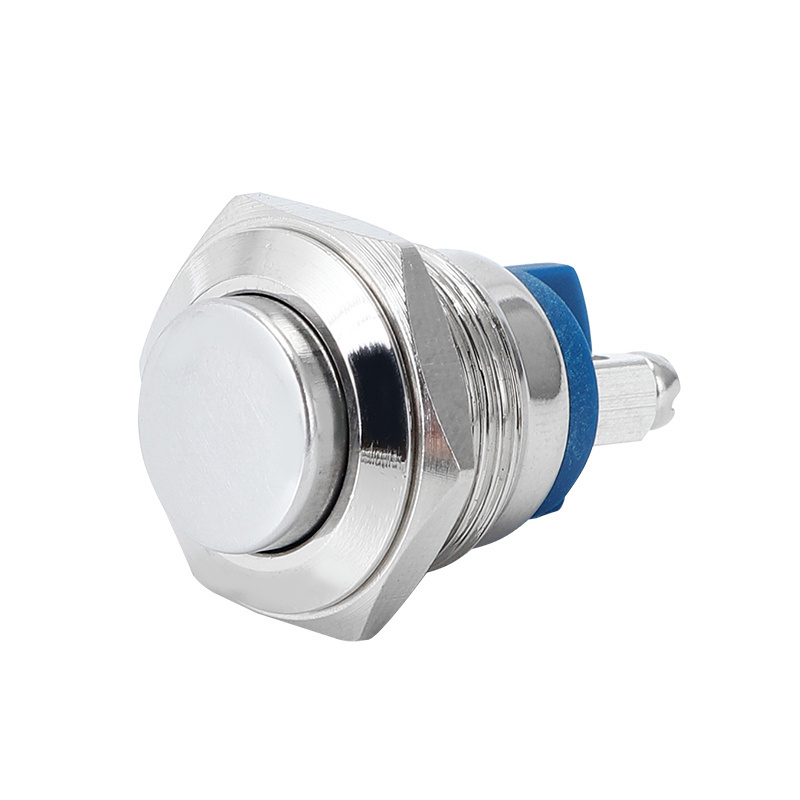

16mm 19mm 22mm 12V Waterproof DC LED Flat Dome Door Touch Momentary Push Button Power Switch
Latching Momentary Push Button Switch:
Momentary
switch:
press it, release it by hand, and the button will automatically spring back to its original position.
Maintained
switch:
press it, release it by hand, press it again, and the button will spring back to its original position
Mounting Hole: 12mm 1/2" , durable for longer lifetime can up to 500,000 cycles.
Easy to install - Round latching switch with screw clamp type terminals to make fitting very easy, 2 pins
Material: High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
LED voltage: 3V/6V/12V/24V
Wide Application ,can be used in wet or dusty environment.
Feature :Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;Large contact surface
| Product Name | Push Button Switch |
| Mounting Hole Diameter | 16mm |
| Head shape | High round head/ Flat head |
| Illuminated or not | NO |
| Terminal type | Screw terminals |
| Shell material/press key Material | Stainless steel/ Brass plating nickel/aluminum oxide color,According to the request |
| Nut | Brass Plated Nickel |
| Base/Bottom/Insert | High flame retardant PA66 |
| Solder pin | Silver plated/gold |
| Switch Combination | 1NO-Normally open |
| Switch Rating | 2A/36V DC, 3A/250VAC |
| Operation types | Momentary or Latching |
| Protection Level | IP65, IK08 |
| Ambient temperature | -20 ℃ ~+55 ℃ |
| Contact resistance | ≤ 50mΩ |
| Insulation resistance | ≥1000mΩ |
| Dielectric strength | 1500VAC |
| Nut torque | 5~14Nm |
| Panel thickness | ≤ 10mm |
| Accessories | O-ring, Nut |
| Customized requirement | Acceptable |
