Quick Details
-
Application:
-
Access control system
-
Material:
-
Stainless Steel
-
Product name:
-
door keypad
-
Certification:
-
CE FCC ISO9001
-
Interface:
-
Matrix
-
Sample:
-
Can provide
-
MOQ:
-
1 Piece
-
Color:
-
Silver
-
Size:
-
Customized Size
-
Logo:
-
Debossed
Quick Details
-
Place of Origin:
-
YUYAOZHEJIANG
-
Brand Name:
-
JIEXIN
-
Model Number:
-
JXS12B_MBD
-
Application:
-
Access control system
-
Material:
-
Stainless Steel
-
Product name:
-
door keypad
-
Certification:
-
CE FCC ISO9001
-
Interface:
-
Matrix
-
Sample:
-
Can provide
-
MOQ:
-
1 Piece
-
Color:
-
Silver
-
Size:
-
Customized Size
-
Logo:
-
Debossed

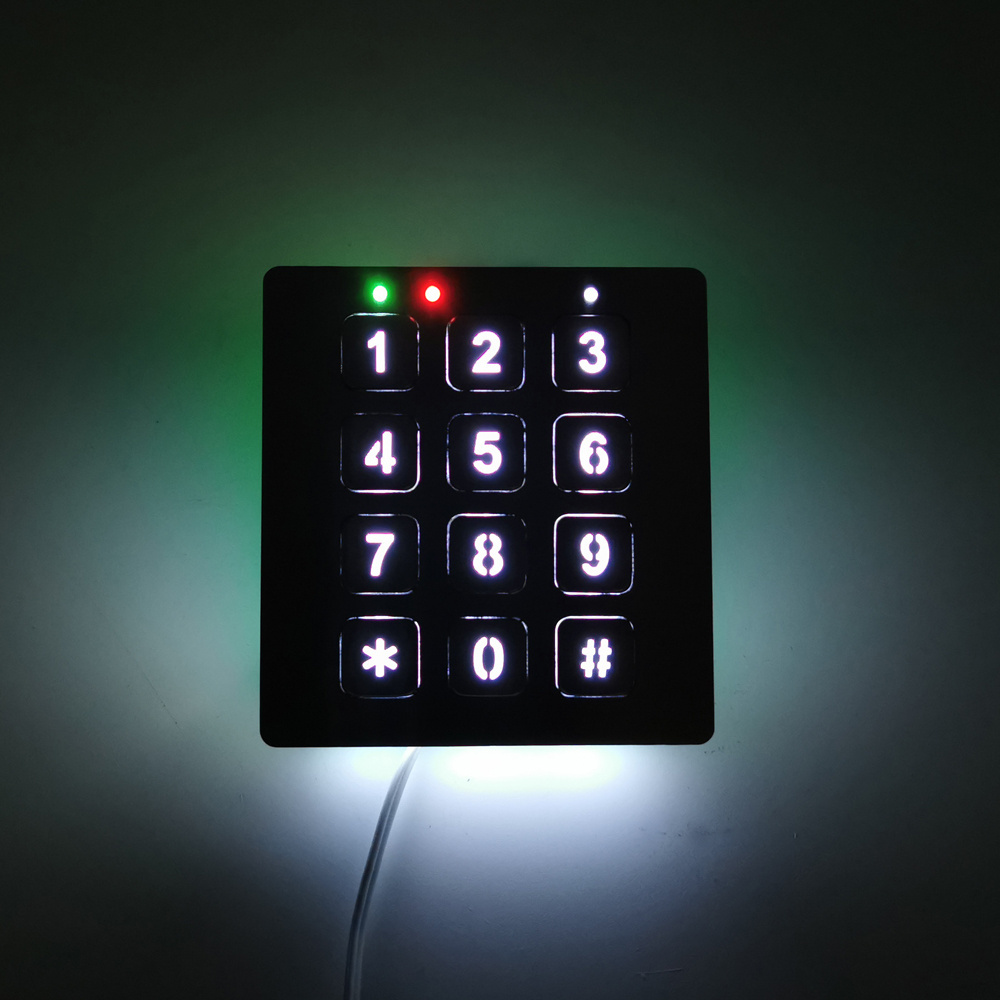

12 key LED backlight stainless waterproof matrix digital access control door keypad
Feature
1.3*4 12keys brushed stainless steel waterproof dustproof vandal proof metal keypad
2.Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment
3.Reinforced PCB to guarantee the mechanical stability
4.Simple installation,easy maintenance and durable service
5.Keys are good touch feeling and accurate date input without any noise
6.Font and pattern can be customized according to customer requirements
7.Very strict ex-factory inspection standards
8. The keypad will automatically adjust the backlight as the external light changes
|
MECHANICAL DATA |
|
|
Model Number |
JX S 12 B_ M BD |
|
keys |
1 2 keys |
|
Switching material |
carbon-on-Gold key switch technology PCB |
|
Actuation Force |
2.0 N+/-0.1N (pressure point) |
|
Frame/keys materials |
Stainless steel 304 |
|
Dimensions |
80 mm * 85 mm |
|
led color |
White/ Blue /Green/Red |
|
Key Size |
14.0mm *14.0mm |
|
Key Travel |
0.45mm |
|
Key life |
more than 1 million of operations |
|
G.W. |
17 0g approx |
|
ELECTRICAL DATA |
|
|
Power supply voltage |
5VDC Or customize |
|
Current Rating |
appr. 20mA |
|
Backlight: |
Yes |
|
Contact resistance |
5 ohm (max) |
|
Electrical lifetime |
> 5 years |
|
Interface |
Matrix Male pinout connector |
|
Or customize PS2/USB/RS232 |
|
|
OS |
All windows, Linux, Unix, Mac OSX |
|
ENVIRONMENTAL ADAPTABILITY |
|
|
Operating temperature |
-20 ℃ to +75 ℃ |
|
Storage temperature |
-35 ℃ to +85 ℃ |
|
Operating RH |
30-90%RH |
|
Atmospheric pressure |
60-106Kpa |
|
RELIABILITY |
|
|
Protection Level |
IP65(front panel) |
|
Vandal resistant |
IK09 |
|
PACKAGING |
|
|
Inner Box |
1Set |
|
Carton |
60 Sets |
|
Carton Size |
41 * 24 * 25.5 CM |
|
Carton G.W. |
1 5 KG |
