Quick Details
-
Marketing Type:
-
New Product 2022
-
Applicable Industries:
-
New energy Industry, 5G Industury, Communications industry, Optical communication industry, LED industry, Electronics industry
-
Product name:
-

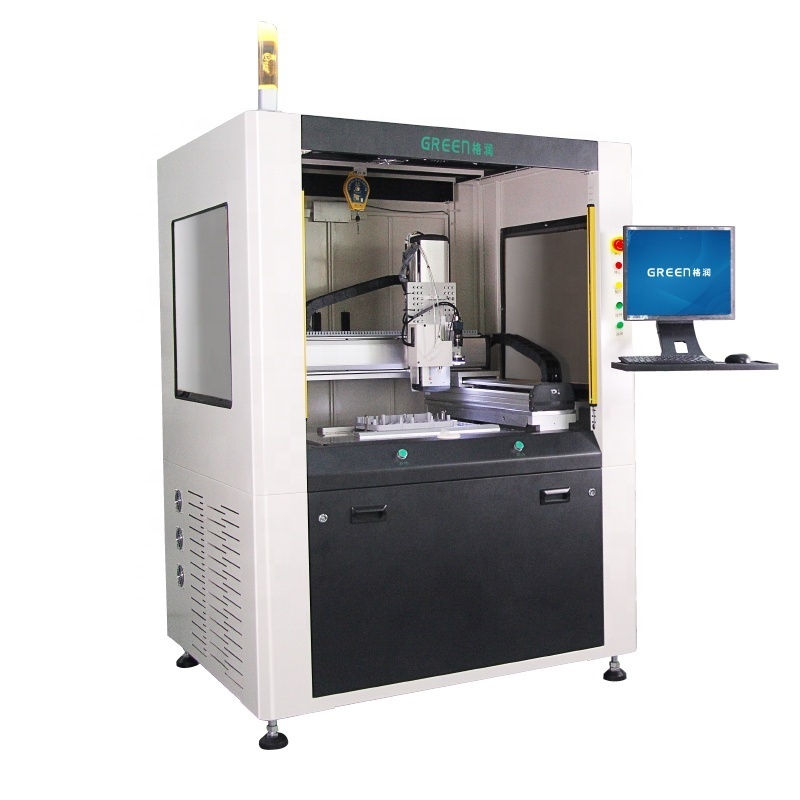

New Energy Battery Dispensing Machine
-
Feature:
-
Multifuctional
-
Production Capacity:
-
Top 4-10 person operation
-
Dimensions:
-
1160(L)*1307(W)*1854(H)MM
-
Weight:
-
About 270kg
-
XY repeatability:
-
±0.02mm
-
XY positioning accuracy:
-
±0.02mm
-
XY max. speed:
-
1000mm/s
-
Max.power:
-
2KW
-
Power supply:
-
AV220V 10A 50-60Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Green
-
Weight (KG):
-
270
-
Marketing Type:
-
New Product 2022
-
Applicable Industries:
-
New energy Industry, 5G Industury, Communications industry, Optical communication industry, LED industry, Electronics industry
-
Product name:
-
New Energy Battery Dispensing Machine
-
Feature:
-
Multifuctional
-
Production Capacity:
-
Top 4-10 person operation
-
Dimensions:
-
1160(L)*1307(W)*1854(H)MM
-
Weight:
-
About 270kg
-
XY repeatability:
-
±0.02mm
-
XY positioning accuracy:
-
±0.02mm
-
XY max. speed:
-
1000mm/s
-
Max.power:
-
2KW
-
Power supply:
-
AV220V 10A 50-60Hz
Product Features
1. Speed: UV glue and some diluted silica gel can achieve about 1 second point 18 diameter circle
2. Map function, save debugging time
3. CCD recognition system, identify Mark points, accurately edit the dispensing path, and accurately position
4. Strong versatility, it can meet the requirements of PACK cell fixing 90% of products
Application Field
Application fields include new energy industry, communication industry, 5G industry, mobile phone industry, LED industry, and electronics industry.
Technical Specification
|
Item
|
Specifications
|
|
Model
|
DP2000S
|
|
X axis
|
600mm
|
|
Y axis
|
600mm
|
|
Z axis
|
150mm
|
|
U axis
|
360°
|
|
XY repeatability
|
±0.02mm
|
|
XY positioning accuracy
|
±0.02mm
|
|
Z axis load
|
7KG
|
|
XY max. speed
|
1000mm/s
|
|
XZ max. speed
|
500mm/s
|
|
Power supply
|
AC220V 10A 50~60Hz
|
|
Input air pressure
|
0.5~0.7MPa
|
|
Max.power
|
2KW
|
|
Outer demension(L*W*H)
|
1160*1307*1854(mm)
|
|
Weight
|
Around 270KG
|
