Quick Details
-
Size:
-
12460*2500*3980 optional
-
Place of Origin:
-
Shandong, China
-
TANK BODY:
-
5mm body 6mm head
-
Axle Brand:
-
FUWA or Optional
-
Stain Proofing:
-
Sand Blasting with twice/ Anticorrosive Prime
-
Loading capacity:
-
60cbm
-
Tire:
-
12R 22.5 or 385/65R22.5
-
Chassis:
-
Q345 or T300 High Strengh Bao Steel material
-
Braking System:
-
Dual Line Braking System
-
Dimension:
-
12460*2500*3980 mm
-
Function:
-
Transport LPG
-
Product name:
-
Fuel Tanker Trailer
-
OE NO.:
-
LAT9400GYQ
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
50T
-
Brand Name:
-
AOTONG
-
Size:
-
12460*2500*3980 optional
-
Place of Origin:
-
Shandong, China
-
TANK BODY:
-
5mm body 6mm head
-
Axle Brand:
-
FUWA or Optional
-
Stain Proofing:
-
Sand Blasting with twice/ Anticorrosive Prime
-
Loading capacity:
-
60cbm
-
Tire:
-
12R 22.5 or 385/65R22.5
-
Chassis:
-
Q345 or T300 High Strengh Bao Steel material
-
Braking System:
-
Dual Line Braking System
-
Dimension:
-
12460*2500*3980 mm
-
Function:
-
Transport LPG
-
Product name:
-
Fuel Tanker Trailer
-
OE NO.:
-
LAT9400GYQ
Top Manufacturers for good quality semi trailers.
1.18 years experience manufactory
2.CCC,ISO,SGS,BV agree
3.Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support
;
6 month guarantee term

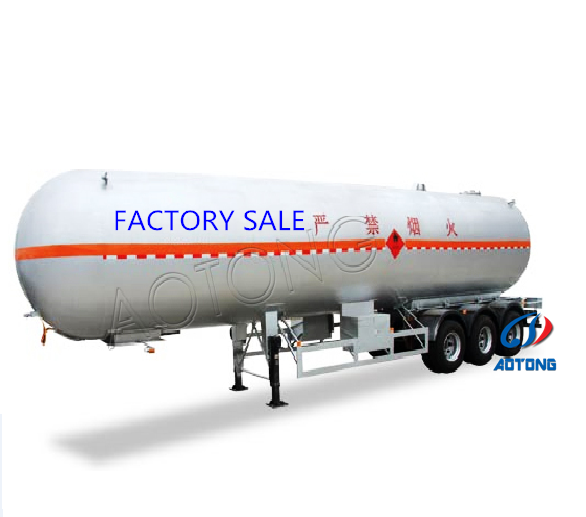

LPG tank semi trailer
Customerize and OEM available
AOTONG trailers designed to transport gas and other petroleum products . Gas tanker carriers have different structures depending on the type of gas they transport. Liquefied Petroleum Gas (LPG) is heavier than LNG. It can be liquefied through refrigeration or by applying high pressure. Its major components are butane and propane. It remains heavy even when it is heated. LPG can evaporate when heated. Hence, it is transported under high pressure to keep it in liquid. LPG containers include T14, T20, T50, T23, etc.
|
Model |
LAT9400GYQ |
|
Volume |
20000L-60000L |
|
Material |
Carbon steel/Stainless steel/Alloy |
|
Usage |
Fuel oil transporting |
|
Size |
12460*2500*3980 (mm) (Other dimensions optional) |
|
Tank body |
Q345R |
|
End plate |
Q345R |
|
Manhole |
500mm |
|
Design pressure |
1.91 |
|
Axles |
3 * 13ton capacity FUWA Brand (Brand optional) |
|
Suspension |
Mechanical suspension (Air suspension optional) |
|
Leaf spring |
10pcs |
|
Tire |
12R22.5 12pcs (Other size optional) |
|
Rim |
9.00-22.5 12pcs (Other size optional) |
|
Kin pin |
2’’/3.5’’ bolt type |
|
Landing gear |
28 Ton two speed JOST Brand |
|
Braking system |
Double air chamber ,brake valve,40L air tanks ;ABS optional |
|
Electrical |
LED light , 7 ways ,24V |
|
Painting |
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
| REMARKS |
The specification is just for your reference, we can bulid trailer as your specific requirements |
|
ITEM NAME
|
WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.
2. Can you satisfy my spacial requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
5. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
6.Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
7.What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
8. Why choose us?
a. Over 17 years manufacturing experiences provide qualified truck trailers & competitive price.
b.. Rest assured after-sale service.
c.. Experienced Design & QC team, strict quality control.
d. CCC, ISO9001, SGS, BV, WMI and other certificates.
