Quick Details
-
Material:
-
Aluminum Alloy
-
Application:
-
door ect.
-
Plate:
-
180Lx38Wx11H(mm)
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/500mA 24V/250mA
-
Signal Output:
-
Dry Contact, Max Rating of Contact Current 3A
-
Surface Temp:
-
≤20°C
-
Operating Temp:
-
-10℃ ~ 55℃ (14°F~131°F)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
MagLock Holding Force Fail-Safe EM Door Lock
-
Material:
-
Aluminum Alloy
-
Application:
-
door ect.
-
Plate:
-
180Lx38Wx11H(mm)
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/500mA 24V/250mA
-
Signal Output:
-
Dry Contact, Max Rating of Contact Current 3A
-
Surface Temp:
-
≤20°C
-
Operating Temp:
-
-10℃ ~ 55℃ (14°F~131°F)
Hot selling products
Maglock

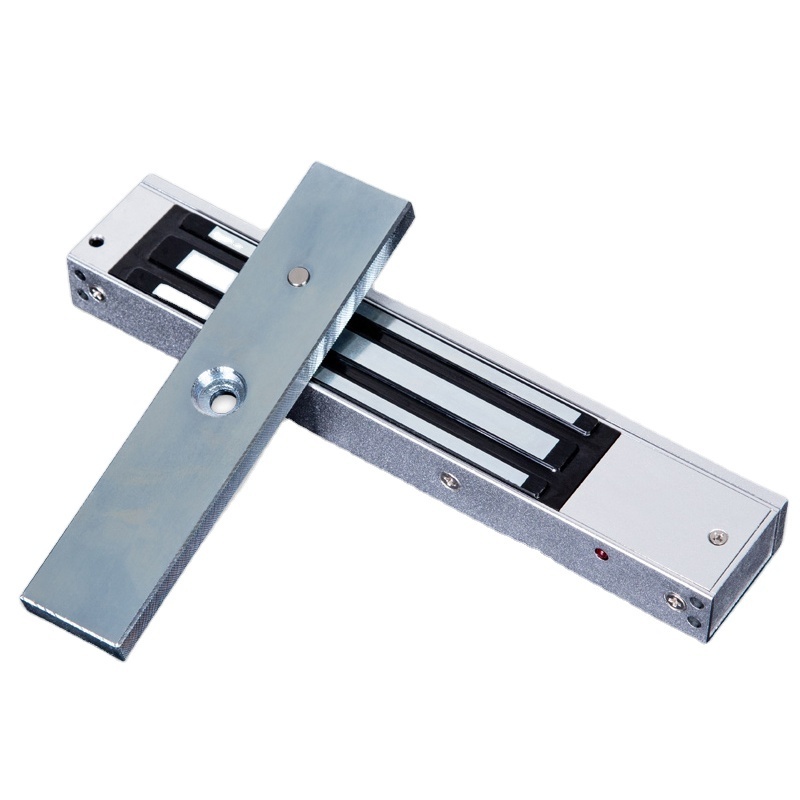

MagLock Holding Force Fail-Safe EM Door Lock With LED For Out-Swing Door
Model No.: EL-600S
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
|
EL-600 |
Without indicator lights |
|
EL-600S |
With LED (Red only) |
|
EL-600SD |
LED, door sensor |
|
EL-600ST |
LED, door sensor, Time delay |
|
EL-600SZ |
LED, door sensor, Buzzer |
|
Lock size |
250Lx48.5Wx25H(mm) |
|
Plate |
180Lx38Wx11H(mm) |
|
Holding Force |
280kg (600Lbs) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/500mA 24V/250mA |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10℃ ~ 55℃ (14°F~131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
2kg |
|
Standard Packing |
10pcs |
