Quick Details
-
Model Number:
-
KCD1-101
-
Max. Current:
-
10
-
Mechanical Life:
-
100000
-
on-off on-off-on:
-
15*10mm/21*15mm
-
button color:
-
red black white greee
-
housing color:
-
white black
-
Function:
-
on-off- on on-off (on)-off-(on) latching
-
Material:
-
PC
-
Max current:
-
10A
-
Safety standard:
-
CE ROHS CQC ISO9001
-
Typed::
-
push button
-
Certification:
-
CQC CE VDE TUV
Quick Details
-
Max. Voltage:
-
250vac
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JSH
-
Model Number:
-
KCD1-101
-
Max. Current:
-
10
-
Mechanical Life:
-
100000
-
on-off on-off-on:
-
15*10mm/21*15mm
-
button color:
-
red black white greee
-
housing color:
-
white black
-
Function:
-
on-off- on on-off (on)-off-(on) latching
-
Material:
-
PC
-
Max current:
-
10A
-
Safety standard:
-
CE ROHS CQC ISO9001
-
Typed::
-
push button
-
Certification:
-
CQC CE VDE TUV

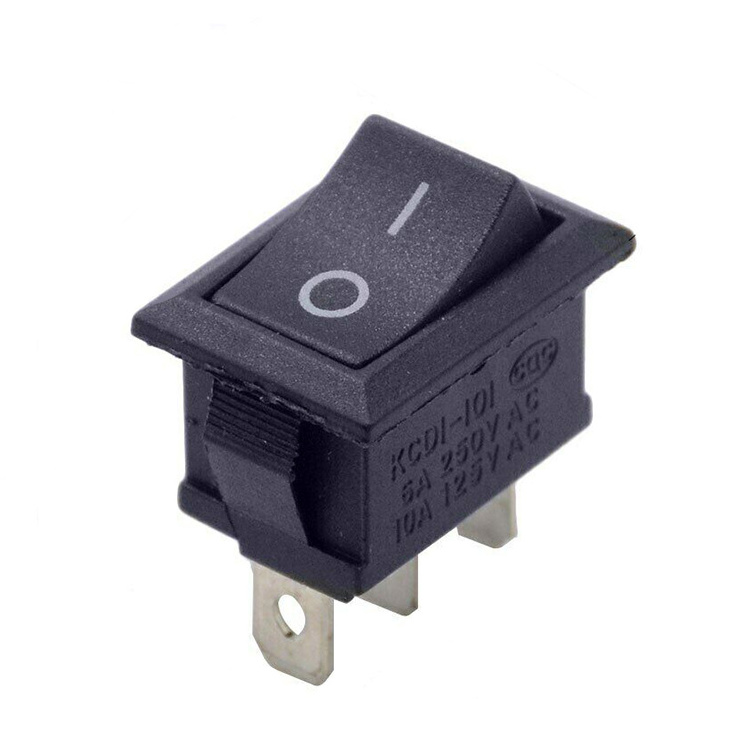

Specifications of Mini rocker switch
Waterproof,miniature illuminated power rocker switch
used in instrument,home appliances,electronics,medical equipm
waterproofly rocker switch (electrical switch, mini rocker switch)
Features:
1) Max. rating current and voltage: 6A250VAC 10A 125VAC
2) Contact resistance: ≤50mΩ
3) Insulate resistance:≥1,000MΩ
4) Dielectric strength: 1, 500V;
5) Electronic life (cycles): ≥ 10,000
6) Shape: Arc-Shaped
7) Indication voltage: 2V, 6V, 12V, 24V, 110VAC, 220VAC
8) Cap colors: red (R), green (G), yellow (Y), white (W), blue (S), orange (A), black (B);
9) Poles: SP, DP
