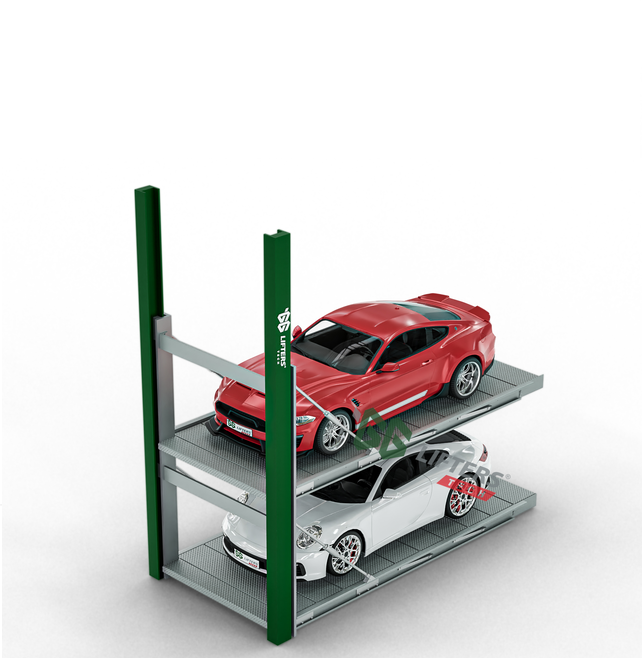

PIT CAR PARKING SYSTEM (MOTOR DRIVE)

1. Hydraulic driven through 2 ea hydraulic cylinders system.

2. Flexible design according to customer requirements, suitable for residential & commercial use.

3. Directly park or pick up the car at any level independently.

4. Simple steel structure, easy for installation and maintenance.

5. Cantilever supports with 2 posts together with longitudinal & cross beams to keep balance.

6. Hydraulic balance system to ensure balance of both cylinders.

7. Galvanized wave plates for upper & lower platforms of all units .

8. Front and back wave plates are removable for easy access to the pit ground floor in case of emergency.

9. Tire stoppers in each platform to ensure correct placement of the car.

10. 1 ea limit switch in every level to stop platforms at predefined heights, IP 67.

11. Electric operation box is equipped with dead man Push Buttons (UP/Down), Emergency and ON/ OFF “Key Switch “ .

12. Electric Operation Box is operated by 24 V to protect against short circuit.

13. Hydraulic power unit will be fixed according to site location.

14. Units are designed and built according to EN 1493: 2010 and EN14010: 2003 standards.

15. S teel parts are hot dipped galvanized to ensure long life and avoid rust.
