Quick Details
-
Measuring Range:
-
0.02um to 2000um
-
Accuracy:
-
≤0.5% (GBRM D50)
-
Repeatability:
-
≤0.5% (GBRM D50)
-
Detector:
-
90 Pieces (Forward, Lateral, Backward)
-
Typical Measurement Time:
-
≤10 Second
-
DLOS:
-
Dual Lenses Optical System
-
SOP:
-
Standard Operation Procedure
-
Centering:
-
Automatic Centering
-
Alignment:
-
Automatic Alignment
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
AWD
-
Product Name:
-

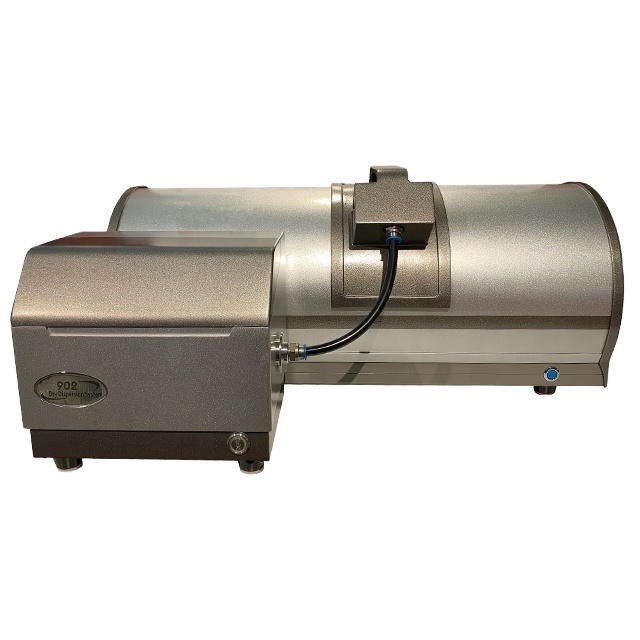

Laser Particle Size Analyzer
-
Measuring Range:
-
0.02um to 2000um
-
Accuracy:
-
≤0.5% (GBRM D50)
-
Repeatability:
-
≤0.5% (GBRM D50)
-
Detector:
-
90 Pieces (Forward, Lateral, Backward)
-
Typical Measurement Time:
-
≤10 Second
-
DLOS:
-
Dual Lenses Optical System
-
SOP:
-
Standard Operation Procedure
-
Centering:
-
Automatic Centering
-
Alignment:
-
Automatic Alignment
• Main Technology Parameters
|
No. |
Tech Indicator |
Description |
|
1 |
Measuring Range |
0.02µm to 2000µm |
|
2 |
Accuracy |
≤ 0.5% (GBRM D50) |
|
3 |
Repeatability |
≤ 0.5% (GBRM D50) |
|
4 |
Detector |
90 pieces (forward, lateral, backward) |
|
5 |
Typical M easurement T ime |
≤ 10 Seconds |
|
6 |
Characteristics |
♦ Dual Lenses Optical System (DLOS) ♦Standard Operation Procedure (SOP) ♦Automatic Centering ♦Automatic alignment ♦ High-performance fiber lasers with long lifespan |
• Packing Information
|
Catalog Number |
Dimension (L×W×H) ( c m) |
Net Weight (Kg) |
Gross Weight (Kg) |
Materials of Package |
|
S2 |
161 × 81 × 86 |
68 |
80 |
Treated Wooden Package |
• Ordering Information
|
Catalog Number |
Product Description |
Electrical Requirements |
|
S2 |
Laser Particle Size Analyzer |
AC220V±10% 50HZ (Can be changed to your country requirement) |
