Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Loosafe, Loosafe
-
Model Number:
-
LS-DZ20 POE 8ch kit, LS-DZ20 POE 8ch kit
-
Lens:
-
3.6mm
-
Image Sensor:
-
1/3 CMOS
-
Image Compression:
-
H.265x
-
IR Distance:
-
20-50m
-
Video Input:
-
3/5MP
-
Video Output:
-
1*VGA, 1*HDMI
-
USB Interface:
-
2* USB2.0 Interface
-
Storage Capacity:
-
Max 6TB
Quick Details
-
Special Features:
-
NIGHT VISION, One-way Audio, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Loosafe, Loosafe
-
Model Number:
-
LS-DZ20 POE 8ch kit, LS-DZ20 POE 8ch kit
-
Lens:
-
3.6mm
-
Image Sensor:
-
1/3 CMOS
-
Image Compression:
-
H.265x
-
IR Distance:
-
20-50m
-
Video Input:
-
3/5MP
-
Video Output:
-
1*VGA, 1*HDMI
-
USB Interface:
-
2* USB2.0 Interface
-
Storage Capacity:
-
Max 6TB

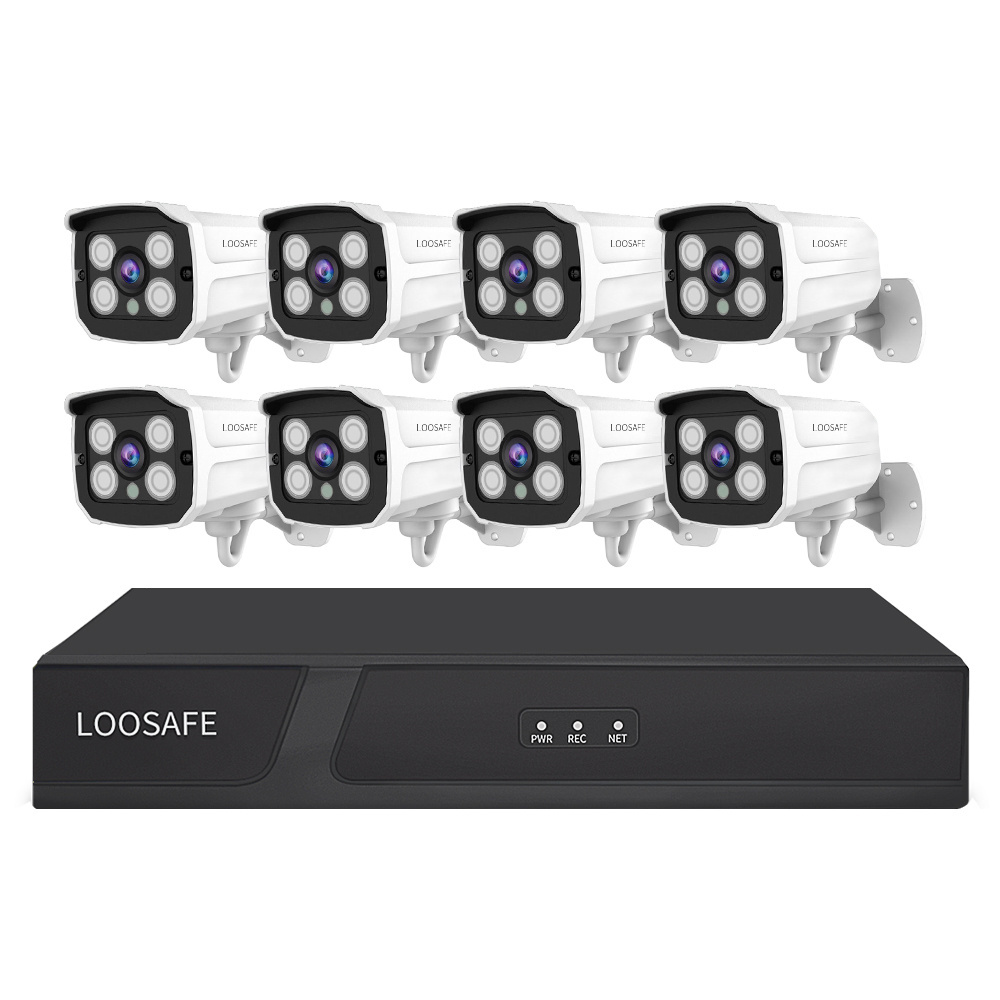

2.0 Megapixel poe camera 8ch poe nvr kit for shop rj45 Ethernet cable installation P2P Surveillance CCTV camera system
|
Kits
|
Model Type: |
POE Surveillance Kit |
|
Model No. |
LS-DZ20 POE 8ch kit |
|
|
|
Lens |
3.6mm/4mm/6mm/8mm/12mm/16mm |
|
Sensor |
1/3" CMOS |
|
|
S/N Ration |
>47db |
|
|
Image Pixel/Resolution |
1920*1080 |
|
|
Image Compression: |
H.265 |
|
|
View Angle |
75.7° - 19.8° |
|
|
Infrared Distance |
20m - 50m |
|
|
Mini Illumination |
0 Lux (IR-Cut) |
|
|
Day & Night |
Automatic IR-Cut |
|
|
3D-DNR |
Auto/BW/Color |
|
|
OSD |
Date Time/Tilt |
|
|
White Blance |
Auto |
|
|
Stream |
Dual Stream: 1920*1080@25fps |
|
|
Internet Interface |
1*RJ45 Ethernet Interface, 802.11b/g/n |
|
|
Power |
12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ |
|
|
Materials |
Aluminum Alloy |
|
|
Waterproof |
IP66 |
|
|
Operation Temperature |
-25 ℃ - 45 ℃ |
|
|
Size |
L95*W65*H65mm |
|
|
POE NVR |
Model No |
LS-7504POE |
|
System |
Embedded Linux |
|
|
Video Input |
8ch*3MP/5MP |
|
|
Video Output |
1*VGA, 1*HDMI |
|
|
Video Compression: |
H.265 |
|
|
Synch-playback |
3MP/5MP |
|
|
Backups |
Manual |
|
|
Storage |
1*Max 6TB HDD |
|
|
Internet Interface |
5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at |
|
|
USB Interface |
2*USB2.0 |
|
|
Onvif Protocal |
Yes |
|
|
Internet Protocal |
UPnp, SMTP,PPPoE,DHCP |
|
|
Power |
48V/2.5A |
|
|
Power Consumption |
10W |
|
|
Operation Temperature |
0 ℃ to 55 ℃ |
|
|
Size |
L260*215*50mm |
