New arrival Automatic roller and patterned paint machine wall tools 5" rub

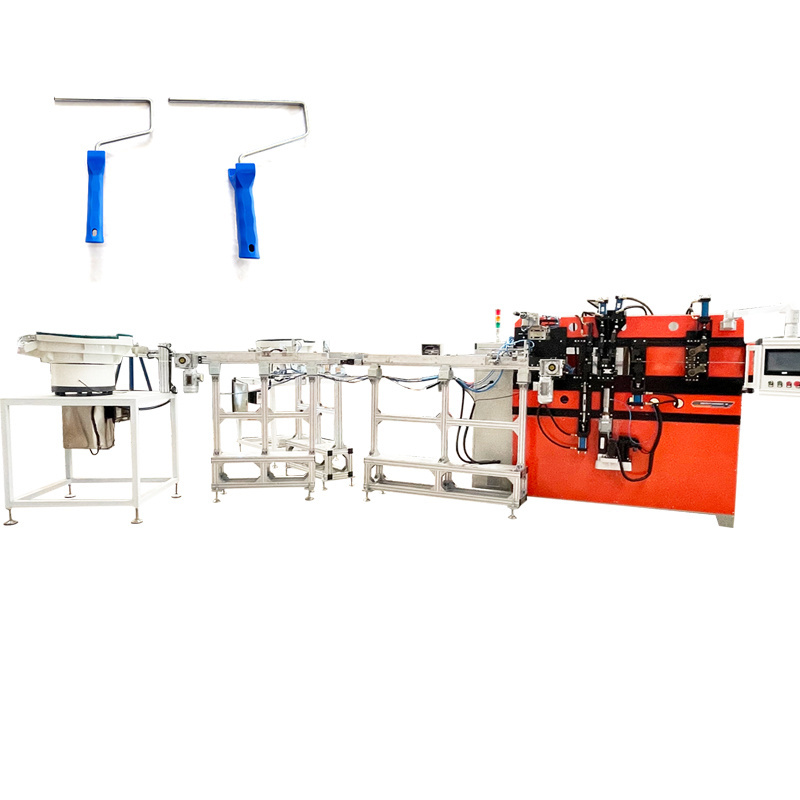

Multifunctional roller brush support forming machine roller and patterned paint machine wall tools 5" rub with electric bending system , Product model: zd-F-8s (single flattening) zd-F-8rs (double flattening)

Technical improvement: the multifunctional roller brush support forming machine with electric bending system uses the traditional 2D wire rod forming machine, the electric bending system is matched with the hydraulic cutter, and the forming parameters are set through the CNC controller, and the speed is adjustable to replace the existing hydraulic forming mold. The forming is no longer limited by the mold, there is no need to replace the mold, only the controller parameters can be replaced. The equipment is equipped with chamfering machine and flattening system, The molding efficiency is higher and the operation is simpler. The mold OF roller and patterned paint machine wall tools 5" rub adopts mobile modular design, so that the equipment can produce all types of roller brush supports on the market.

1. The new design of roller and patterned paint machine wall tools 5" rub adopts lever principle, which can save time and labor and reduce die loss. The die is easier to disassemble. The traditional design of die replacement needs integral disassembly, but the new design of flattening die is easier to disassemble and replace, and the die can be replaced according to the wire diameter, which is not limited by the wire diameter (5-8mm).

2. The independent hydraulic cylinder replaces the four cylinder forming system, so the space is more compact. Due to the traditional design, each hydraulic cylinder needs action time. The traditional roller brush forming machine can form one cylinder in 6 seconds at the fastest, and the forming needs four hydraulic cylinders to complete all the actions. The new roller brush forming machine only uses one hydraulic cylinder to complete the forming task, The molding speed is increased to 2 seconds, and the speed is increased by 3 times. Optical head molding can improve the efficiency by three times. In addition, it can automatically install the handle, which greatly improves the production efficiency. Compared with the traditional equipment host part, it improves the production efficiency by 4 times, and has the function of automatic installation handle.

3.The mold on the rack can move left and right, and there is a visual scale. If you need to produce the required size roller brush bracket, you only need to move the mold according to the scale and replace the molding mold. Traditional roller brush bracket machine can only make one shape and one diameter of wire, want to do other shapes also need to order new equipment, greatly increasing the cost of customers. The new design equipment makes the roller brush bracket machine realize multi-purpose, and is not limited by the wire diameter, and can produce all types of roller brush bracket on the market, which greatly facilitates the use of customers and saves costs.

the wire straightening machine with memory function can also effectively improve the production efficiency, so that the wire straightening is no longer difficult, the replacement of wire does not need to straighten the ratio of each roller, the whole row is loosened, and the whole row is compacted after wire feeding, so that the straightening machine has memory function, greatly saving the time wasted in straightening, and effectively improving the yield.

4.The traditional steel bar cutting system adopts the downward pressure cutting mode, the cutter is under active force, and the cutter can only be used on one side, which is easy to damage and increases the production cost.

5.New design bottom knife pull up cut, bottom knife force, four sides of the cutter can be used, a cutter can be four times the life of the ordinary design, easy to replace, effectively reduce the cost of vulnerable parts.
