Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
LXSG-15E-50E2
-
Color:
-
Blue
-
Body Material:
-
Cast iron body
-
Accuracy:
-
Class B
-
Size:
-
DN15mm to DN50mm
-
Feature:
-
Detachable woltman water
-
Certification:
-
Please Contact Customer Service
-
Standard:
-
ISO-4064
-
Temperature:
-
30
-
Installation:
-
Horizonal
Quick Details
-
Warranty:
-
Please Contact Customer Service
-
Type:
-
Multi-jet meters, Compound meters, Turbine meters, Electromagnetic meters, Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
LXSG-15E-50E2
-
Color:
-
Blue
-
Body Material:
-
Cast iron body
-
Accuracy:
-
Class B
-
Size:
-
DN15mm to DN50mm
-
Feature:
-
Detachable woltman water
-
Certification:
-
Please Contact Customer Service
-
Standard:
-
ISO-4064
-
Temperature:
-
30
-
Installation:
-
Horizonal
Home
Products Description

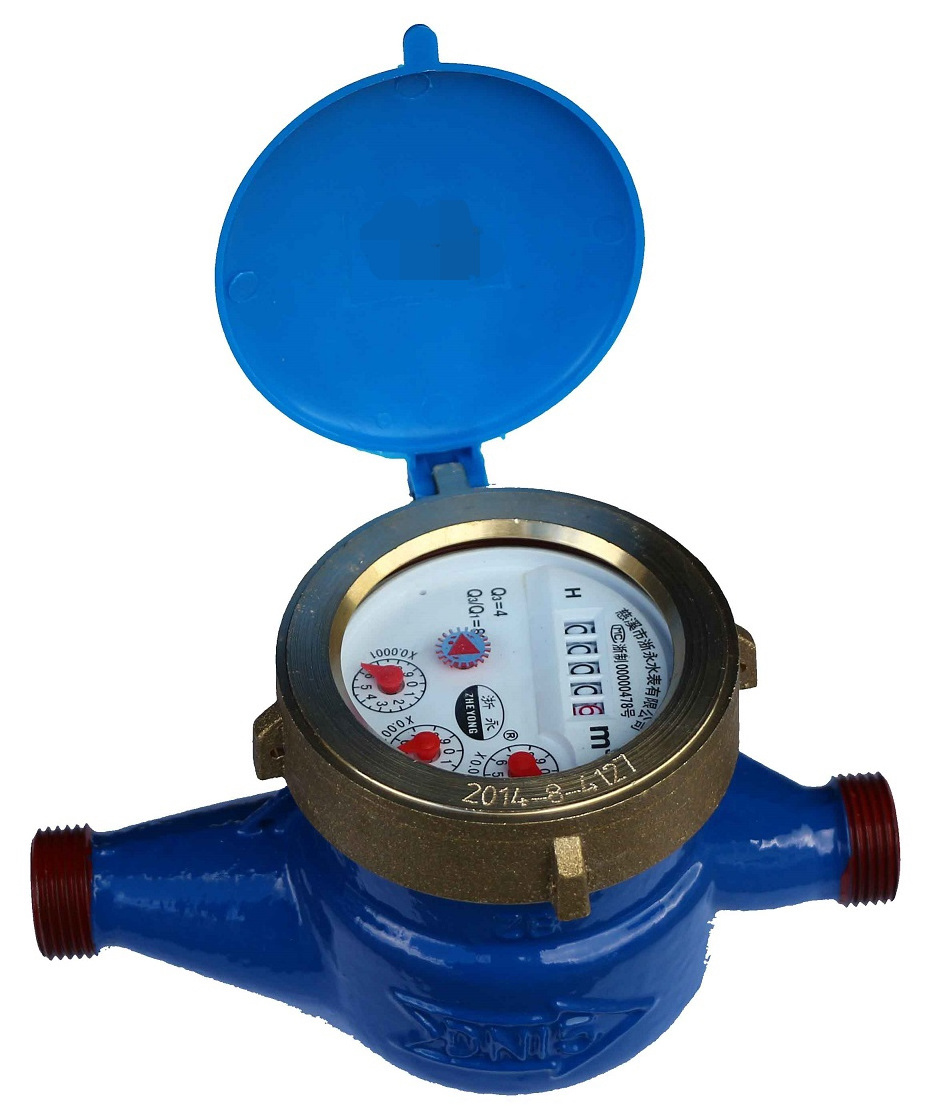

DESCRIPTION
T
his range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Compliance with standard: ISO 4064 Class B
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body，Stainless steel body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
INDICATING ERROR
WORKING CONDITION
C
old Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
MAIN TECHNICAL DATA
|
Meter size
Dia DN (mm) |
Class
|
Q4 Overload Flow
|
Q3 Nominal Flow
|
Q2 Transitional Flow
|
Q1 Min Flow
|
Min Reading Lectura
|
Max Reading Lectura
|
|||
|
|
|
m3/h
|
|
1/h
|
|
m3
|
|
|||
|
15
|
80
|
3.123
|
2.5
|
50
|
31.25
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
40
|
25
|
|
|
|||
|
20
|
80
|
5
|
4
|
80
|
50
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
64
|
40
|
|
|
|||
|
25
|
80
|
7.875
|
6.3
|
126
|
78.75
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
100.8
|
63
|
|
|
|||
DIMENSIONS AND WEIGHT
|
Meter size
Dia DN (mm) |
L
length |
B
Width |
H
Height
|
Connecting Thread
D
|
Weight
kg |
||
|
|
mm
|
|
|
|
|
||
|
15
|
165
|
99
|
104
|
G3/4"B
|
1.5
|
||
|
20
|
190
|
99
|
106
|
G1"B
|
1.7
|
||
|
25
|
225
|
104
|
120
|
G11/4"B
|
2.4
|
||
|
32
|
230
|
104
|
120
|
G11/2"B
|
2.7
|
||
|
40
|
245
|
125
|
155
|
G2"B
|
4.5
|
||
|
50
|
300
|
125
|
155
|
G21/2"B
|
7.2
|
||
|
|
280
|
165
|
175
|
Flange connecting conform to
GB4216.4 D=165 D1=125 |
14
|
||
