- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
20-1200mm
-
Specification:
-
SDR41-SDR7.4
-
Length:
-
5.8m or custom made
-
Thickness:
-
2.0-88.2mm
-
Standard:
-
ISO 4427,EN12201,PAS1075 etc., ISO 4427,EN12201,PAS1075 etc.
-
Application:
-
Water, Mining, Gas, Marine, Chemical, Industrial,
-
PN:
-
PN25, PN20, PN16, PN12.5, PN10, PN8, PN6, PN5, PN4
-
MOQ:
-
Trial Order or 1*20ft containers by mixed loading
-
Color:
-
Black with blue stripes
-
Sample:
-
Free sample could be provided
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
DRD
-
Model Number:
-
20-1200mm
-
Specification:
-
SDR41-SDR7.4
-
Length:
-
5.8m or custom made
-
Thickness:
-
2.0-88.2mm
-
Standard:
-
ISO 4427,EN12201,PAS1075 etc., ISO 4427,EN12201,PAS1075 etc.
-
Application:
-
Water, Mining, Gas, Marine, Chemical, Industrial,
-
PN:
-
PN25, PN20, PN16, PN12.5, PN10, PN8, PN6, PN5, PN4
-
MOQ:
-
Trial Order or 1*20ft containers by mixed loading
-
Color:
-
Black with blue stripes
-
Sample:
-
Free sample could be provided
Product Overview

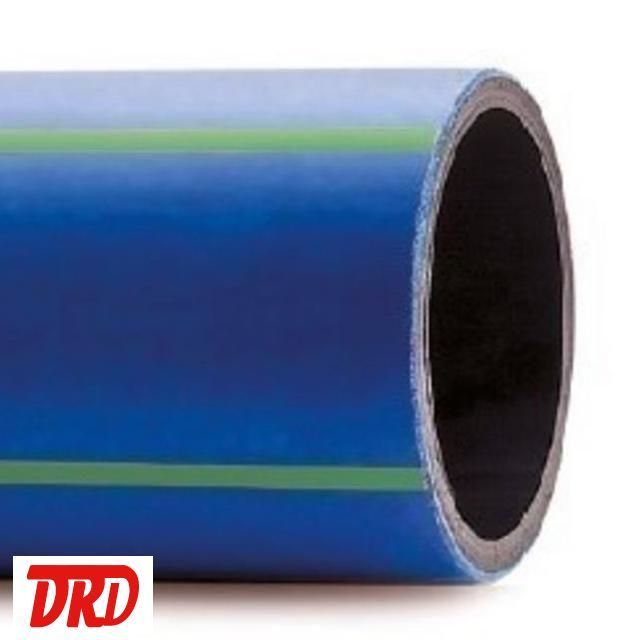

PE100-RC HDPE Pipe for Water & Gas
PE 100-RC (RC = resistant to cracks), Modified PE 100, PE100 RC, for pipes with even higher performance, make the service life up to longer. In practice, this strengthening endows the pipes with a much greater ability to withstand the mechanical attacks to which they may be subjected during their service life, such as notching to their outer surface and resisting sharp point loads created by stones.
RC pipes are produced with PE100 with high SCG resistance checked through various tests, among which FNCT (Full Notch Creep Test) and PLT (Point Loading Test) that determine a resistance value ≥ to 100 years to severe damage, either real or under point load test conditions. The pipes are compliant with UNI EN 12201, ISO 4427, UNI EN ISO 15494.
PE100 RC (Resistant to Crack) sometimes known as Extreme Stress Crack Resistant (ESCR) or High-Stress Crack Resistant (HSCR) compounds, are defined in the German publicly available standard: PAS 1075:2009-04. PE100 RC compounds are designed to provide lifelong resistance (>100 years) to traditional Slow Crack Growth (SCG) failures caused by rock impingement and point loading stress.
RC pipes are produced with PE100 with high SCG resistance checked through various tests, among which FNCT (Full Notch Creep Test) and PLT (Point Loading Test) that determine a resistance value ≥ to 100 years to severe damage, either real or under point load test conditions. The pipes are compliant with UNI EN 12201, ISO 4427, UNI EN ISO 15494.
PE100 RC (Resistant to Crack) sometimes known as Extreme Stress Crack Resistant (ESCR) or High-Stress Crack Resistant (HSCR) compounds, are defined in the German publicly available standard: PAS 1075:2009-04. PE100 RC compounds are designed to provide lifelong resistance (>100 years) to traditional Slow Crack Growth (SCG) failures caused by rock impingement and point loading stress.
FEATURES AT A GLANCE
Benefits of High Density Polyethylene (HDPE) Pipes and Fittings for water and gas
◇Optimized resistance to local deformation
◇ Raised resistance to mechanical damages
◇ Increased resistance to tension
◇ Chemical and biological inertness
◇ Material neutral to the environment - polyethylene is 100% recyclable and reusable
◇ Raised resistance to mechanical damages
◇ Increased resistance to tension
◇ Chemical and biological inertness
◇ Material neutral to the environment - polyethylene is 100% recyclable and reusable
Inner Orange Color
PE100 RC Orange Compounds
PE100 RC Blank Compounds
PRODUCT SPECIFICATIONS
|
Product name
|
PE100-RC HDPE Pipe for Water & Gas
|
37.5KW
|
|
|
|||
|
Brand
|
DRD (Customer brand is available)
|
2.8 M3
|
|
|
|||
|
Dia Ranges
|
DN20-1200mm(1/2 inch-48 inch)
|
125Ton
|
|
|
|||
|
Raw material
|
PE100RC
|
96kN
|
|
|
|||
|
Application
|
drinking water, fresh water, drainage, mining,
dredging, marine, industry, chemical...
|
96kN
|
|
|
|||
|
Color
|
Black with blue stripes, blue for water,
balck with orange stripes or yellow for gas & oil
|
60kN
|
|
|
|||
|
Standards
|
ISO 4427,EN12201, AS/NZS4130, ASTM 3035,
DIN8074, GOST18599, DIPS, ASTM F714 for water;
ISO4437, EN1555, AS/NZS4130, ASTM D3035
etc. for gas |
6750ml
|
|
|
|||
|
Matching products
|
HDPE pipe fittings, Customized PE fittigns,
DI/ Steel backing ring flanges,
Valves, water meter, flow gauge, welding machines and
tools, etc. |
500N.m
|
|
|
|||
Application
1.Offshore oil & gas
2.HDPE Pipe for Water Distribution System
3.HDPE pipe of potable water supply
4.Mine Dewatering and Process Slurry
5.Civil construction for water supply
6. HDPE Pipe for Organic Chemicals
2.HDPE Pipe for Water Distribution System
3.HDPE pipe of potable water supply
4.Mine Dewatering and Process Slurry
5.Civil construction for water supply
6. HDPE Pipe for Organic Chemicals
HDPE-Pipes-for-Process-Water
HDPE-Pipes-for-Offshore-Intake-Head-Structure
HDPE-Pipes-for-Dredging-Applications
HDPE-Pipes-for-Liquefied-Natural-Gas
HDPE-Pipes-for-Mining-Industry-2
HDPE-Pipes-for-Municipal-Water-Sewer
FAQ
Q1. Are you trading company or manufacturer?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment? A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment? A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
