Quick Details
-
Place of Origin:
-
China
-
Keyword:
-
elliptical head
-
Thickness:
-
2-300mm
-
Size:
-
89mm--10000mm
-
Certificate:
-
ISO9001 ,ISO14001,OHSAS18001
-
Surface treatment:
-
Sand Blasting,Pickling
-
Usage:
-
machinery, metallurgy, sanitary construction
-
Standard:
-
ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
-
Test:
-
UT,RT,MT,PT,ET
-
custom-made:
-
Support
-
Application:
-
oil, chemical industry, water conservancy
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Round
-
Head Code:
-
Round
-
Place of Origin:
-
China
-
Keyword:
-
elliptical head
-
Thickness:
-
2-300mm
-
Size:
-
89mm--10000mm
-
Certificate:
-
ISO9001 ,ISO14001,OHSAS18001
-
Surface treatment:
-
Sand Blasting,Pickling
-
Usage:
-
machinery, metallurgy, sanitary construction
-
Standard:
-
ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
-
Test:
-
UT,RT,MT,PT,ET
-
custom-made:
-
Support
-
Application:
-
oil, chemical industry, water conservancy

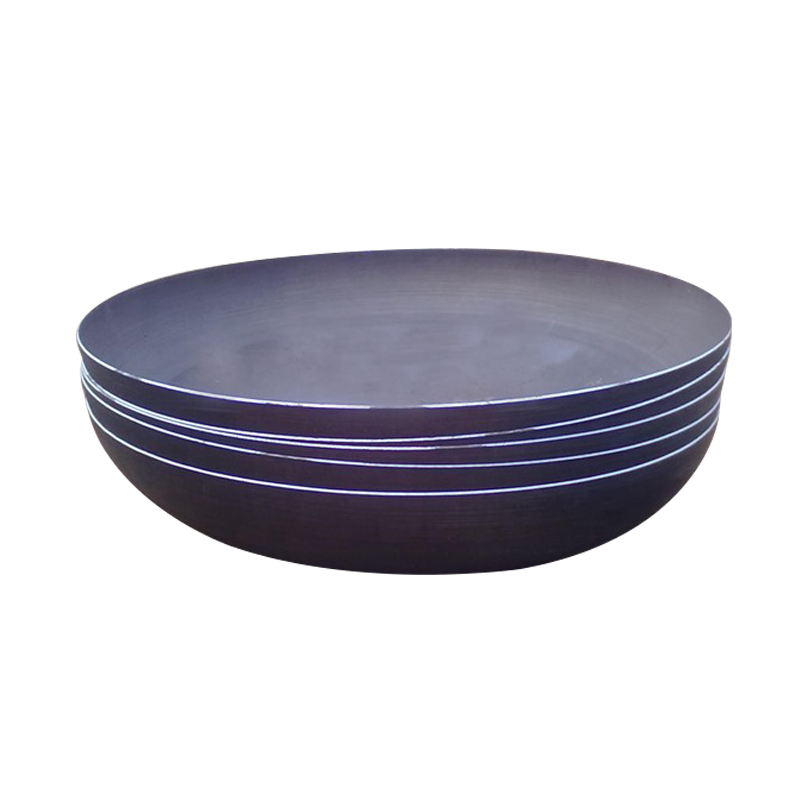

24 inch large stainless steel pipe end cap elliptical dished tank head
Product Description
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: |
Carbon steel, Stainless steel, Aluminum,Titanium,etc According to customers requirement If you can use Chinese material is the best. |
| Technology: | Hot pressing,cold pressing |
| Surface Treatment: | Sand Blasting,Pickling |
| Test: | UT,RT,MT,PT,ET |
| Applicable Standard: | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA and GB |
| Certificate: | ISO9001, ISO14001, OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power,
boiler, machinery, metallurgy, sanitary construction etc. |
| Packaging: |
Wooden cases ,wooden pallet plastic bag or as per
customers requirement |
| Delivery time: | According to customers requirement |
| Custom-made | Support |
Product Show :
| Elliptical Head Parameter Table | ||||||||
|
Nominal
Diameter (mm) |
Total Depth
(mm) |
Volume
(m³) |
Nominal
Diameter (mm) |
Total Depth
(mm) |
Volume
(m³) |
Nominal
Diameter (mm) |
Total Depth
(mm) |
Volume
(m³) |
| 300 | 100 | 0.0053 | 1100 | 300 | 0.198 | 2600 | 690 | 2.5131 |
| 350 | 113 | 0.008 | 1200 | 325 | 0.2545 | 2700 | 715 | 2.8055 |
| 400 | 125 | 0.0115 | 1300 | 350 | 0.3208 | 2800 | 740 | 3.1198 |
| 450 | 138 | 0.0159 | 1400 | 375 | 0.3977 | 2900 | 765 | 3.4567 |
| 500 | 150 | 0.0213 | 1500 | 400 | 0.486 | 3000 | 790 | 3.817 |
| 550 | 163 | 0.0277 | 1600 | 425 | 0.5864 | 3100 | 815 | 4.2015 |
| 600 | 175 | 0.030353 | 1700 | 450 | 0.6999 | 3200 | 840 | 4.611 |
| 650 | 188 | 0.0442 | 1800 | 475 | 0.827 | 3300 | 865 | 5.0463 |
| 700 | 200 | 0.0545 | 1900 | 500 | 0.9667 | 3400 | 890 | 5.508 |
| 750 | 213 | 0.0663 | 2000 | 525 | 1.1257 | 3500 | 915 | 5.9972 |
| 800 | 225 | 0.0796 | 2100 | 565 | 1.3508 | 3600 | 940 | 6.5144 |
| 850 | 238 | 0.0946 | 2200 | 590 | 1.5459 | 3700 | 965 | 7.0605 |
| 900 | 250 | 0.0111 | 2300 | 615 | 1.7588 | 3800 | 990 | 7.6364 |
| 950 | 263 | 0.13 | 2400 | 640 | 1.9905 | ... | ... | ... |
| 1000 | 275 | 0.1505 | 2500 | 665 | 2.2417 | 7000 | 1790 | 46.438 |
