Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
TGGS,TGGS, TGGS
-
Product name:
-
Geocell gravel grid
-
Height:
-
50mm~250mm
-
Welding distance:
-
330mm-1000mm
-
Certifications:
-
CE/ISO9001/ISO14001
-
Color:
-
Black or as request
-
Keyword:
-
ground stabilization grid
-
Function:
-
Steep Slope Protection Reinforcement
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
TGGS,TGGS, TGGS
-
Product name:
-
Geocell gravel grid
-
Height:
-
50mm~250mm
-
Welding distance:
-
330mm-1000mm
-
Certifications:
-
CE/ISO9001/ISO14001
-
Color:
-
Black or as request
-
Keyword:
-
ground stabilization grid
-
Function:
-
Steep Slope Protection Reinforcement
Product Description
HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and storm water control in channels.
Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and storm water control in channels.
|
Item Model
|
Height (mm)
|
Welding distance
(mm)
|
Sheet thickness (mm)
|
|
Seam peel strength ≥（N）
|
Expanded Cell Size (mm)
|
Expanded Panel Size (m)
|
|
|
|
|
|
smooth
|
texture
|
|
|
|
|
|
TGLG-100-330
|
100
|
330
|
1.1
|
1.5
|
1420
|
244*203
|
2.44*6.15
|
|
|
TGLG-150-330
|
150
|
|
|
|
2130
|
244*203
|
2.44*6.15
|
|
|
TGLG-200-330
|
200
|
|
|
|
2840
|
244*203
|
2.44*6.15
|
|
|
TGLG-100-356
|
100
|
356
|
1.1
|
1.5
|
1420
|
259*224
|
2.56*6.52
|
|
|
TGLG-150-356
|
150
|
|
|
|
2130
|
259*224
|
2.56*6.52
|
|
|
TGLG-200-356
|
200
|
|
|
|
2840
|
259*224
|
2.56*6.52
|
|
|
TGLG-100-400
|
100
|
400
|
1.1
|
1.5
|
1420
|
295*250
|
4*5
|
|
|
TGLG-150-400
|
150
|
|
|
|
2130
|
295*250
|
4*5
|
|
|
TGLG-200-400
|
200
|
|
|
|
2840
|
295*250
|
4*5
|
|
|
TGLG-100-445
|
100
|
445
|
1.1
|
1.5
|
1420
|
320*287
|
2.56*8.35
|
|
|
TGLG-150-445
|
150
|
|
|
|
2130
|
320*287
|
2.56*8.35
|
|
|
TGLG-200-445
|
200
|
|
|
|
2840
|
320*287
|
2.56*8.35
|
|
|
TGLG-100-660
|
100
|
660
|
1.1
|
1.5
|
1420
|
488*406
|
2.44*12.29
|
|
|
TGLG-150-660
|
150
|
|
|
|
2130
|
488*406
|
2.44*12.29
|
|
|
TGLG-200-660
|
200
|
|
|
|
2840
|
488*406
|
2.44*12.29
|
|
|
TGLG-100-712
|
100
|
712
|
1.1
|
1.5
|
1420
|
508*475
|
2.56*13.72
|
|
|
TGLG-150-712
|
150
|
|
|
|
2130
|
508*475
|
2.56*13.72
|
|
|
TGLG-200-712
|
200
|
|
|
|
2840
|
508*475
|
2.56*13.72
|
|
Seam peel strength
Sheet thickness
Cell size
Weld spacing
Expanded panel size
Feature
1. With flexible, transport can be folded, construction can be stretched into a network, filled with soil, gravel, concrete and
other loose materials, constitute a strong lateral limit and stiffness of the structure.
2. Light material, wear resistance, chemical stability, light and oxygen resistance aging, acid and alkali resistance, suitable
for different soil and desert and other soil conditions.
3. Higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and
dispersed load.
4. Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.
5. Flexible, small transport volume; The connection is convenient and the construction speed is fast.
other loose materials, constitute a strong lateral limit and stiffness of the structure.
2. Light material, wear resistance, chemical stability, light and oxygen resistance aging, acid and alkali resistance, suitable
for different soil and desert and other soil conditions.
3. Higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and
dispersed load.
4. Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.
5. Flexible, small transport volume; The connection is convenient and the construction speed is fast.
Construction Accessories
Product Application
It is mainly used in foundation reinforcement, soft foundation treatment, steep slope protection, landslide prevention and hybrid retaining wall subject to load and weight; especially suitable for weathered mountain forests, deserts and swamps.
1.Load support: Solve unacceptable road, parking and yard surface problems.
1.Load support: Solve unacceptable road, parking and yard surface problems.
2.Slope protection: Create a stable environment forlong-term sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.

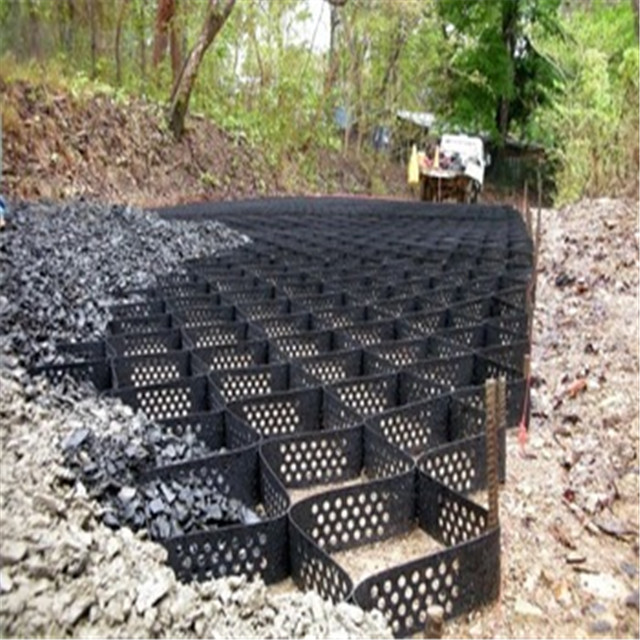

Used for stabilizing road soft foundation treatment.
