- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5400*2200*2870mm
-
Weight:
-
10000 KG
-
Drill Mast:
-
6m
-
Chassis:
-
Steel track
-
Drilling dia.:
-
130-325mm
-
Drilling depth:
-
400m
-
One-time push length:
-
6.6m
-
Climbing ability:
-
30°
-
Drill rod dia.:
-
102mm/108mm/114mm
-
Drill rod length:
-
3m/6m
-
Lifting force:
-
25T
-
Rotary speed:
-
45-115rpm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5400*2200*2870mm
-
Weight:
-
10000 KG
-
Drill Mast:
-
6m
-
Chassis:
-
Steel track
-
Drilling dia.:
-
130-325mm
-
Drilling depth:
-
400m
-
One-time push length:
-
6.6m
-
Climbing ability:
-
30°
-
Drill rod dia.:
-
102mm/108mm/114mm
-
Drill rod length:
-
3m/6m
-
Lifting force:
-
25T
-
Rotary speed:
-
45-115rpm
Best price water drilling rig 400m water drilling machine rig Hengwang borehole drilling machine price
Products Description

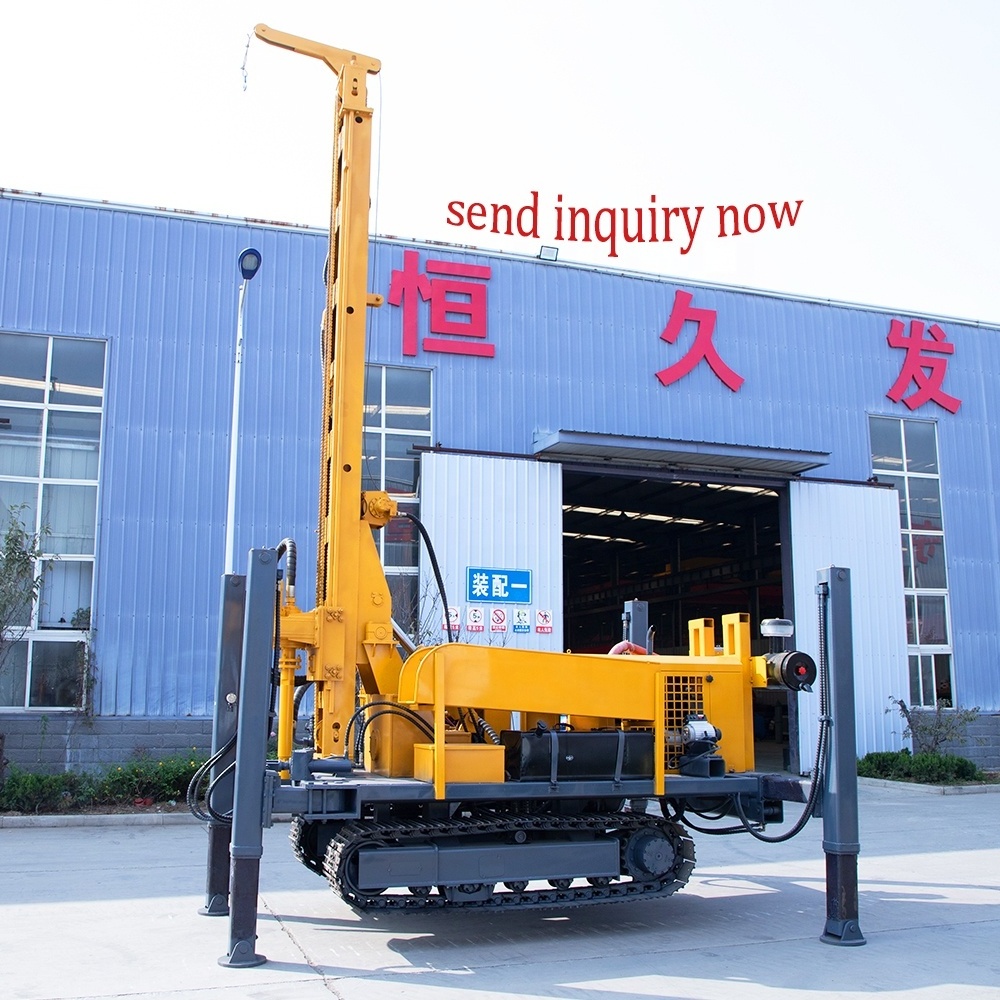

Pneumatic water well borehole drilling rig machine
pneumatic dth drilling rig
mainly drilling rock must connect with air compressor
. it has fast drilling speed . pneumatic dth drilling rig
can drill 20-40m per hour
. high drilling effective .
the engine it is 110kw
,more powerful .
pneumatic water borehole drilling rig
it has 4 high hydraulic leg
which
can lifting 1.6m height can easy loading on the truck .
air water well drilling rig machine is
rubber crawler
.
hydraulic pump and valve both use import brand .
Pneumatic water well borehole drilling rig tower height is 6m .
18ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch .
Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements .
It can add mud pump and foam pump .
We have enough experience for South America ,Southeast Asia,North America ,Africa etc .
Product Paramenters
|
Main technical parameters
|
|
|
|
|
|
|
||||||
|
Model
|
HQZ260L
|
HQZ260L
|
HQZ320L
|
HQZ320L
|
HQZ400L
|
HQZ400L
|
||||||
|
Drill Mast
|
3m
|
6m
|
3m
|
6m
|
3m
|
6m
|
||||||
|
Chassis
|
Rubber track
|
Rubber track
|
Steel track
|
Steel track
|
Steel track
|
Steel track
|
||||||
|
Drilling dia.（mm）
|
130-305
|
130-305
|
130-325
|
130-325
|
130-325
|
130-325
|
||||||
|
Drilling depth（m）
|
260
|
260
|
320
|
320
|
400
|
400
|
||||||
|
One-time push length（m）
|
3.6
|
6.6
|
3.6
|
6.6
|
3.6
|
6.6
|
||||||
|
Travelling speed（km/h）
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
||||||
|
Climbing ability(°)
|
30
|
30
|
30
|
30
|
30
|
30
|
||||||
|
Engine brand
|
Yunnei
|
Yunnei
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
||||||
|
Engine power
|
76kw
|
76kw
|
85kw
|
85kw
|
110kw
|
110kw
|
||||||
|
Working pressure（mpa）
|
1.7-3.0
|
1.7-3.0
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption（m³/min）
|
17-31
|
17-31
|
17-35
|
17-35
|
17-35
|
17-35
|
||||||
|
Drill rod dia.（mm）
|
76/89
|
76/89
|
76/89/102
|
76/89/102
|
89/102/108
|
102/108/114
|
||||||
|
Drill rod length（m）
|
1.5/2.0/3.0
|
3.0/6.0
|
1.5/2.0/3.0
|
3.0/6.0
|
1.5/2.0/3.0
|
3.0/6.0
|
||||||
|
Lifting force（T）
|
17
|
17
|
18
|
24
|
25
|
25
|
||||||
|
Rotary speed（rpm）
|
45-65
|
45-65
|
40-70
|
55-115
|
45-115
|
45-115
|
||||||
|
Rotary torque（N.m)
|
4500-4700
|
5500-6000
|
6000-7500
|
8500-9000
|
7000-9000
|
7000-9000
|
||||||
|
Dimension（mm）
|
3900*1850*2350
|
5200*1850*2350
|
5300*2200*2800
|
5300*2200*2800
|
5400*2200*2500
|
5400*2200*2870
|
||||||
|
Overall weight（T）
|
4.8
|
5.8
|
7
|
9
|
8
|
10
|
||||||
Details Images
Best price water drilling rig 400m water drilling machine rig Hengwang borehole drilling machine price
Wide range of use
Best price water drilling rig 400m water drilling machine rig Hengwang borehole drilling machine price
