Quick Details
-
Product name:
-

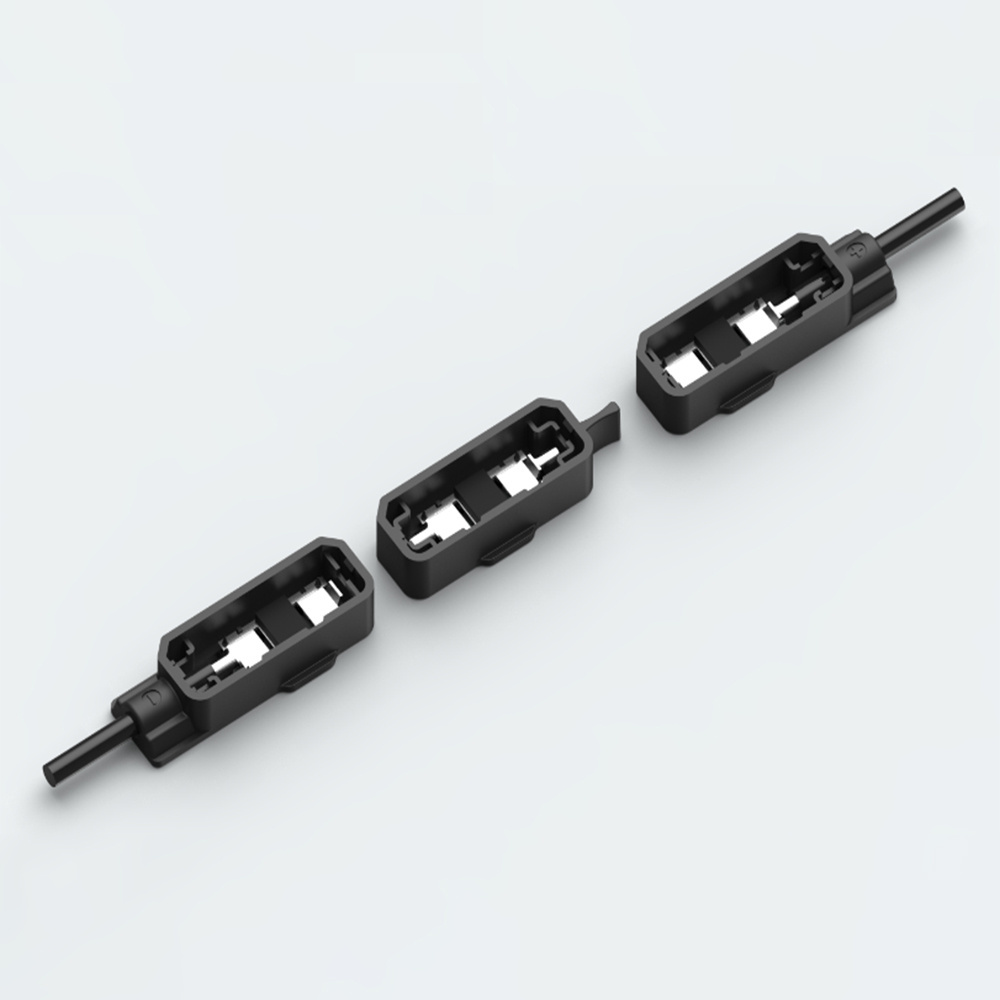

Photovoltaic junction box
-
Application:
-
Solar Panel Production
-
Size of Cables:
-
4.0mm²/12AWG 6.0mm²/12AWG
-
Size of Ribbons:
-
Max.8mm
-
Reverse Current:
-
40A
-
Rated Voltage:
-
1000V,1500V (TUV/UL)
-
Terminals for Ribbons:
-
6
-
Protection Grade:
-
IP68
-
Flammability Class:
-
5VA
-
Rated Current(IEC/UL):
-
20A,22A,25A,30A,35A (TUV/UL)
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NUUKO
-
Model Number:
-
NUK Junction Box
-
Product name:
-
Photovoltaic junction box
-
Application:
-
Solar Panel Production
-
Size of Cables:
-
4.0mm²/12AWG 6.0mm²/12AWG
-
Size of Ribbons:
-
Max.8mm
-
Reverse Current:
-
40A
-
Rated Voltage:
-
1000V,1500V (TUV/UL)
-
Terminals for Ribbons:
-
6
-
Protection Grade:
-
IP68
-
Flammability Class:
-
5VA
-
Rated Current(IEC/UL):
-
20A,22A,25A,30A,35A (TUV/UL)
Product Description
Junction box
protects the electrical connections of the solar panel from environmental conditions. Wire leads connecting the panel
to the string and bypass diodes are located inside the junction box. The leads make the panel easy to connect in the string during
the system's installation process.
Specification
|
Item
|
Value
|
|
Certifications
|
UL, TUV, TUV SUD, DEKRA, ETL
|
|
Corresponding current
|
20A/25A/30A/35A
|
|
Rated voltage
|
1500V
|
|
Max working voltage
|
100V
|
|
Ambient temperature
|
-40~+85℃
|
|
Degree of protection
|
IP65/IP68 (1m,1h)
|
|
Pollution degree
|
Class A
|
|
Flame class
|
UL94-V0 5VA
|
|
Connecting capacity
|
1x4mm2, 12AWG
|
|
Waterproof Structure
|
Potting sealant
|
|
Connection Method
|
Soldering
|
|
Insulation Material
|
PPE+PS
|
|
Contact Material
|
Copper tin plating
|
|
Volume Of Silicon Gel
|
Up to 9mm-7.0g
|
|
Entry cable
|
180 °
|
|
Optional Connector |
CD2, 1500VDC
PV-TT02(TT02), 1500VDC PV-KST4/6II-UR,PV-KBT4/6II-UR, 1000VDC PV-KST4-EVO2/6II-UR、 PV-KBT4-EVO2/6II-UR,1500VDC |
