1.High performance, open width speed factor up to 850( Speed range: Up to 20RPM-33RPM, affected by factors such as yarn, gauge and others )
2.Dial two & Cylinder four track adjusting keys per feeder
3.The yard guide ring can be adjusted as a whole, and the yard guide can be adjusted separately
4.The unique upper bed ensures the absolute engagement of the gears, and keeps the equipment stable and efficient
5.Unique QUAP pulley anti-slip setting, avoid parallel lines
6.Independent patented take-down system
7.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge spectrum
8.Different frame types available for different production requirement
- Product Details
- {{item.text}}
Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
NO
-
Gauge:
-
16-44gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
338*229*237cm
-
Product Name:
-
Double Jersey Circular Knitting Machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Circular Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Quick Details
-
Type:
-
Double jersey knitting machine
-
Production Capacity:
-
High Speed
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Double
-
Computerized:
-
NO
-
Gauge:
-
16-44gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
338*229*237cm
-
Product Name:
-
Double Jersey Circular Knitting Machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Circular Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Products Description
|

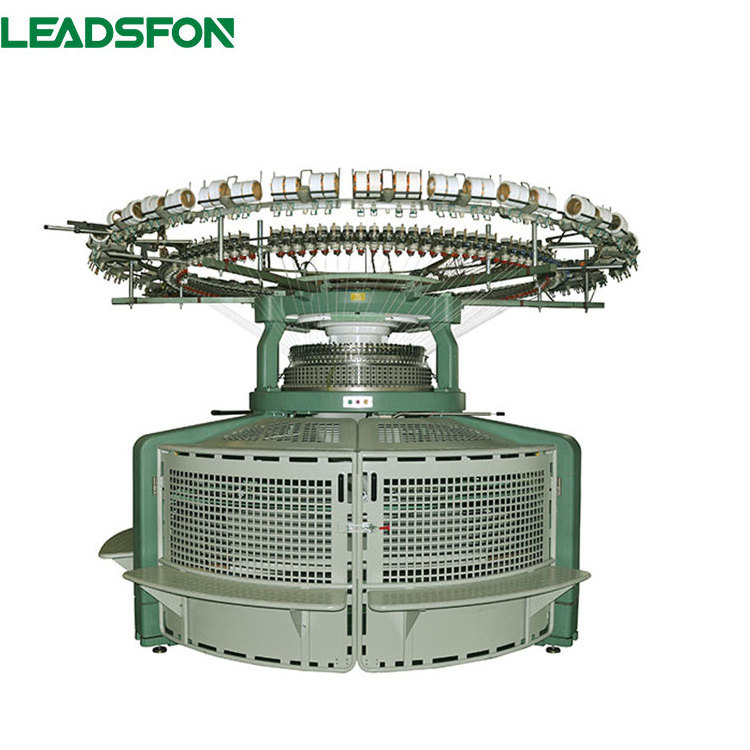

DJC 2.0 / 2.4 Double Jersey Machine Asia Model
|
|
|
|
Comprehensive update frame and transmission system, more suitable for operation, easier replacement for different kind of fabric,high productive and high stability
|
|
|
|
PRODUCTION EXAMPLE
|
|
|
|
|
||||
|
DJC for 34 inch,open width and 25rpm [Efficiency,85%]
|
|
|
|
|
||||
|
Structure
|
Gauges (E)
|
Yarn
|
Weight (g/m2)
|
Production kg/h
|
||||
|
Rib
|
20
|
Cotton 30/1 Ne
|
160
|
25
|
||||
|
Technical details
|
|
|
|
Type
|
DJC 2.0 / 2.4
|
|
|
Diameter [inch]
|
30” - 40”
|
|
|
No. Of feeders
|
60F - 98F
[2.0/2.4 feeds per inch] Example: 34” DJC 2.0 at 72F 34” DJC 2.4 at 84F |
|
|
Speed factor [max]
|
850
(Example : 25rpm at 34” ) |
|
|
Gauges [E]
|
14GG-44GG
|
|
PRODUCT FEATURE
