Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minzan
-
Model Number:
-
RVV
-
Product name:
-

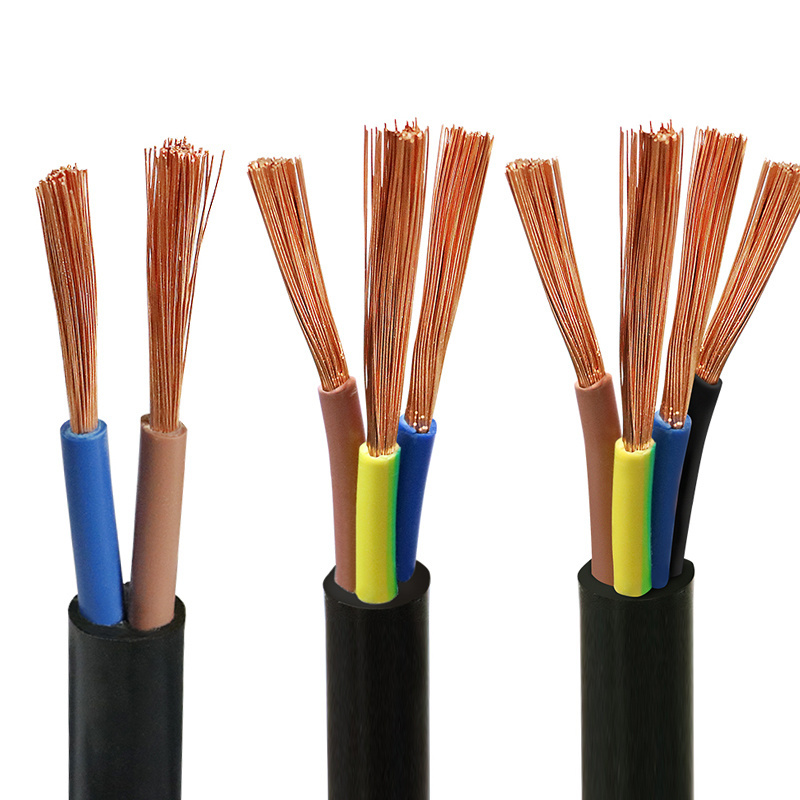

H05V-K/H07V-K Copper Core PVC Insulation Wire
-
Specification1:
-
2 / 3 / 4 / 5 / 6 / 7 / 8 cores
-
Specification2:
-
Copper 99.995%
-
Insulation/Conductor:
-
PVC/Copper 99.995%
-
MOQ:
-
100Meter
-
Rated voltage:
-
300V/500V
-
Feature:
-
High Resistance Low smoke zero halogen LSZH
-
Certification:
-
CE/ROHS/ISO/CCC/UL/TUV
-
Sample:
-
Freely Sample
-
Usage:
-
Electrical, instrumentation,automation equipment, building intercome
Quick Details
-
Application:
-
Electrical, instrumentation,automation equipment, building intercome
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minzan
-
Model Number:
-
RVV
-
Product name:
-
H05V-K/H07V-K Copper Core PVC Insulation Wire
-
Specification1:
-
2 / 3 / 4 / 5 / 6 / 7 / 8 cores
-
Specification2:
-
Copper 99.995%
-
Insulation/Conductor:
-
PVC/Copper 99.995%
-
MOQ:
-
100Meter
-
Rated voltage:
-
300V/500V
-
Feature:
-
High Resistance Low smoke zero halogen LSZH
-
Certification:
-
CE/ROHS/ISO/CCC/UL/TUV
-
Sample:
-
Freely Sample
-
Usage:
-
Electrical, instrumentation,automation equipment, building intercome
Product Description
Specification
|
Cross Sectional Area
(mm²) |
Cable diameter
(O.D. mm) |
Insulation thickness
(mm) |
Jacket
thickness (mm) |
max.cond.
resistance (Ω/KM,20°C) |
Rated Voltage
(V) |
Weight per 100 meters
|
Length(m) per Roll
|
|
5X0.2
|
4.6土0.2
|
0.5
|
0.7
|
92.3
|
300/300V
|
33.32kg
|
100/roll 200/roll
|
|
5X0.3
|
5.4土0.2
|
0.5
|
0.7
|
69.2
|
300/300V
|
4.54kg
|
|
|
5X0.5
|
6.9土0.2
|
0.6
|
0.7
|
39
|
300/300V
|
8.03kg
|
|
|
5X0.75
|
7.6土0.2
|
0.6
|
0.8
|
26
|
300/300V
|
9.56kg
|
|
|
5X1.0
|
8.3土0.2
|
0.6
|
0.8
|
19.5
|
300/300V
|
11.94kg
|
|
|
5X1.5
|
9.6土0.2
|
0.7
|
0.8
|
13.3
|
300/500V
|
17.67kg
|
|
|
5X2.5
|
11.8土0.2
|
0.8
|
1
|
7.98
|
300/500V
|
27.64kg
|
|
|
5X4.0
|
14.3土0.2
|
0.8
|
1.2
|
4.95
|
300/500V
|
39.57kg
|
|
|
5X6.0
|
16.5土0.2
|
0.9
|
1.2
|
3.65
|
300/500V
|
53.75kg
|
|
|
6X0.2
|
4.9土0.2
|
0.5
|
0.7
|
92.3
|
300/300V
|
3.82kg
|
|
|
6X0.3
|
5.9土0.2
|
0.5
|
0.7
|
69.2
|
300/300V
|
5.4kg
|
|
|
6X0.5
|
7.4土0.2
|
0.6
|
0.7
|
39
|
300/300V
|
9.31kg
|
|
|
6X0.75
|
8.2土0.2
|
0.6
|
0.8
|
26
|
300/300V
|
11.35kg
|
|
|
6X1.0
|
9.1土0.2
|
0.6
|
0.8
|
19.5
|
300/300V
|
14.55kg
|
|
|
6X1.5
|
10.9土0.2
|
0.7
|
0.8
|
13.3
|
300/500V
|
20.81kg
|
|
|
6X2.5
|
12.5土0.2
|
0.8
|
1
|
7.98
|
300/500V
|
32.66kg
|
|
|
7X0.2
|
5.3土0.2
|
0.5
|
0.7
|
92.3
|
300/300V
|
4.34kg
|
|
|
7X0.3
|
6.1土0.2
|
0.5
|
0.7
|
69.2
|
300/300V
|
6.07kg
|
|
|
7X0.5
|
7.5土0.2
|
0.6
|
0.7
|
39
|
300/300V
|
10.04kg
|
|
|
7X0.75
|
8.5土0.2
|
0.6
|
0.8
|
26
|
300/300V
|
12.11kg
|
|
|
7X1.0
|
9.4土0.2
|
0.6
|
0.8
|
19.5
|
300/300V
|
16.33kg
|
|
|
7X1.5
|
11.2土0.2
|
0.7
|
0.8
|
13.3
|
300/500V
|
23.20kg
|
|
|
8X0.2
|
5.5土0.2
|
0.5
|
0.7
|
92.3
|
300/300V
|
4.88kg
|
|
|
8X0.3
|
6.6土0.2
|
0.5
|
0.7
|
69.2
|
300/300V
|
6.87kg
|
|
|
8X0.5
|
8土0.2
|
0.6
|
0.7
|
39
|
300/300V
|
11.20kg
|
|
|
8X0.75
|
9.2土0.2
|
0.6
|
0.8
|
26
|
300/300V
|
14.25kg
|
|
|
8X1.0
|
10.2土0.2
|
0.6
|
0.8
|
19.5
|
300/300V
|
18.46kg
|
|
|
8X1.5
|
12土0.2
|
0.7
|
0.8
|
13.3
|
300/500V
|
26.13kg
|
|
|
Single-conductor,palyvinyl chloride (PVC)insulation
|
|
|
|
|
|
|
||||||
|
|
||||||||||||
|
Single-conductor,UL Standard
|
|
|
|
|
|
|
||||||
|
|
||||||||||||
|
Single-conductor,UL Staudard Silicone Insulation
|
|
|
|
|
|
|
||||||
|
|
|
|||||||||||
|
Multic-conductor,UL Standard
|
|
|
|
|
|
|
||||||
|
|
||||||||||||
|
Multic-conductor
|
|
|
|
|
|
|
||||||
|
|
|
|
||||||||||
|
|
|
|
|
|||||||||
|
Automotive Wire
|
|
|
|
|
|
|
||||||
|
German
|
|
|
|
|
|
|
||||||
|
|
||||||||||||
|
|
|
|
|
|
||||||||
|
JAPAN
|
|
|
|
|
|
|
||||||
|
|
|
|||||||||||
|
America
|
|
|
|
|
|
|
||||||
|
|
||||||||||||
|
China
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
||||||||
|
VDE WIRE CABLE
|
|
|
|
|
|
|
||||||
|
|
|
|||||||||||
|
|
|
|||||||||||
|
|
|
|||||||||||
|
|
|
|||||||||||
|
|
|
|
||||||||||
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in DONGGUAN.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
4. why should you buy from us not from other suppliers?
Specializing in the production of sheathed power cords, towline cables, high-flexible cables, shielded cable series, network cables, multi-core control cables, flat wires, electronic wires, video cables, elevator video cables, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in DONGGUAN.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
4. why should you buy from us not from other suppliers?
Specializing in the production of sheathed power cords, towline cables, high-flexible cables, shielded cable series, network cables, multi-core control cables, flat wires, electronic wires, video cables, elevator video cables, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
