Quick Details
-
Range of Spindle Speed(r.p.m):
-
66 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Model Number:
-
ZX50P
-
Table Travel (mm):
-
550/320
-
Year:
-
new date
-
Spindle Motor Power(kW):
-
2.2
-
Voltage:
-
380V/optional
-
Dimension(L*W*H):
-
1400*1300*2040mm
-
Weight (KG):
-
880
-
Specifications:
-
ZX50P
-
Table size:
-
260*1000mm
-
Table travel:
-
550/320/570mm
-
Spindle taper:
-
NT40
-
Spindle speed range:
-
66-4540rpm 16steps
-
Max. drilling dia.:
-
50mm
-
Max. end milling width:
-
100mm
-
Main motor:
-
3HP(2.2kw)
-
Distance from spindle center to column:
-
380mm
-
Overall dimensions:
-
1400*1300*2040mm
Quick Details
-
Table Travel (X) (mm):
-
550
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
570
-
Range of Spindle Speed(r.p.m):
-
66 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Model Number:
-
ZX50P
-
Table Travel (mm):
-
550/320
-
Year:
-
new date
-
Spindle Motor Power(kW):
-
2.2
-
Voltage:
-
380V/optional
-
Dimension(L*W*H):
-
1400*1300*2040mm
-
Weight (KG):
-
880
-
Specifications:
-
ZX50P
-
Table size:
-
260*1000mm
-
Table travel:
-
550/320/570mm
-
Spindle taper:
-
NT40
-
Spindle speed range:
-
66-4540rpm 16steps
-
Max. drilling dia.:
-
50mm
-
Max. end milling width:
-
100mm
-
Main motor:
-
3HP(2.2kw)
-
Distance from spindle center to column:
-
380mm
-
Overall dimensions:
-
1400*1300*2040mm
Products Description
Product Paramenters

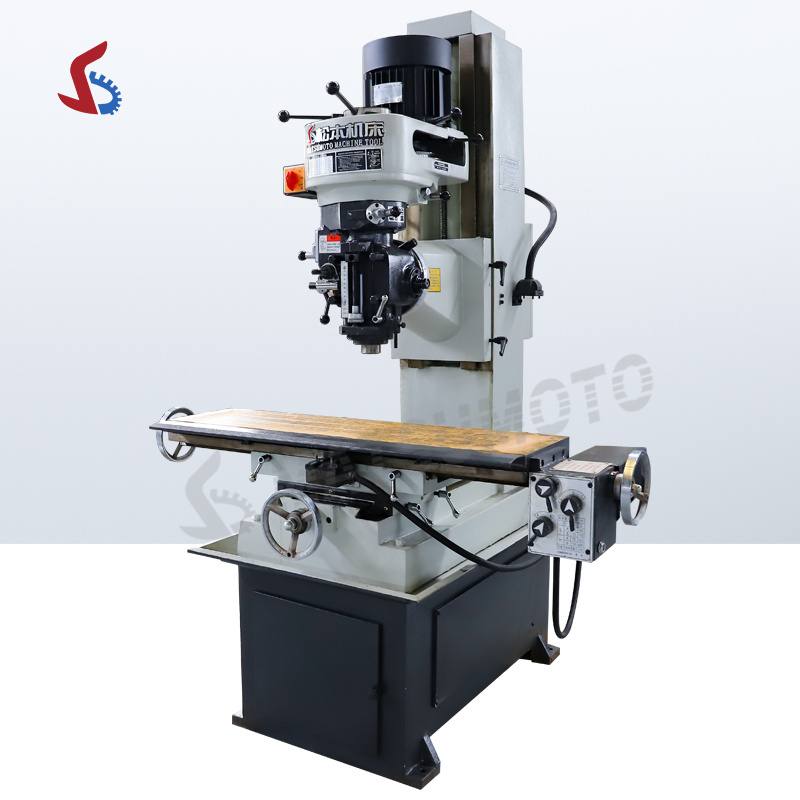

ZX50P vertical Drilling and Milling Machine
This machine is a multifunctional turret milling machine. Rectangular table guideways with high stability, stable movement and high precision. The worktable can be fed longitudinally automatically, which is suitable for metal processing and equipment maintenance.
Feature:
1.Precision bored and honed milling head.
2.Precision ground worktable.
3.
Taiwan original turret milling head.
|
Specification
|
ZX50P/C
|
|
Max. drilling dia.
|
50mm
|
|
Max. end milling width
|
100mm
|
|
Max. vertical milling dia.
|
25mm
|
|
Spindle speed range
|
66-4540rpm 16steps
|
|
Spindle taper
|
NT40
|
|
Main motor
|
3HP(2.2kw)
|
|
Table size
|
260*1000mm
|
|
Table travel
|
550/320mm
|
|
Distance between spindle nose
and table surface |
0-570mm
|
|
Distance from spindle center to column
|
380mm
|
|
Overall dimensions
|
1400*1300*2040mm
|
|
N.W/G.W
|
880/950kgs
|
