Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Longteng
-
Name:
-
container locking pin
-
Material:
-
Q235
-
Type:
-
Standard / Europe / other
-
Surface treatment:
-
Red / black
-
OEM service:
-
yes
-
Application:
-
For truck trailers
-
Weight:
-
8.1kg / 10kg
-
Process:
-
Casting and welding
-
Other related products:
-
twist lock
Quick Details
-
OE NO.:
-
OEM Service Provided
-
Max Payload:
-
500
-
Size:
-
Standard Size, 150*150mm 180*220mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Longteng
-
Name:
-
container locking pin
-
Material:
-
Q235
-
Type:
-
Standard / Europe / other
-
Surface treatment:
-
Red / black
-
OEM service:
-
yes
-
Application:
-
For truck trailers
-
Weight:
-
8.1kg / 10kg
-
Process:
-
Casting and welding
-
Other related products:
-
twist lock
Hot Sale Products
Products Description
1. Prodcut Informtion:
Container trailer twist lock hardware: Europe Type(Heavy one), Europe Type(Light one) and ISO Type. They are all is welded on
trailer chassis and connecting container corner to fix container on the trailer.
Especially Europe Types, they are all comprised of housing, locking pin, locking pin guide, outer guide, distance ring, locknut,
security ring, security latch and pin. And is retractable and welded on trailer chassis, it is very popular in Europe.
ISO Type is comprised of Pin knob, Spacer, Twist Handel, Nut, Fabrication Body and Spring Steel clip.
trailer chassis and connecting container corner to fix container on the trailer.
Especially Europe Types, they are all comprised of housing, locking pin, locking pin guide, outer guide, distance ring, locknut,
security ring, security latch and pin. And is retractable and welded on trailer chassis, it is very popular in Europe.
ISO Type is comprised of Pin knob, Spacer, Twist Handel, Nut, Fabrication Body and Spring Steel clip.

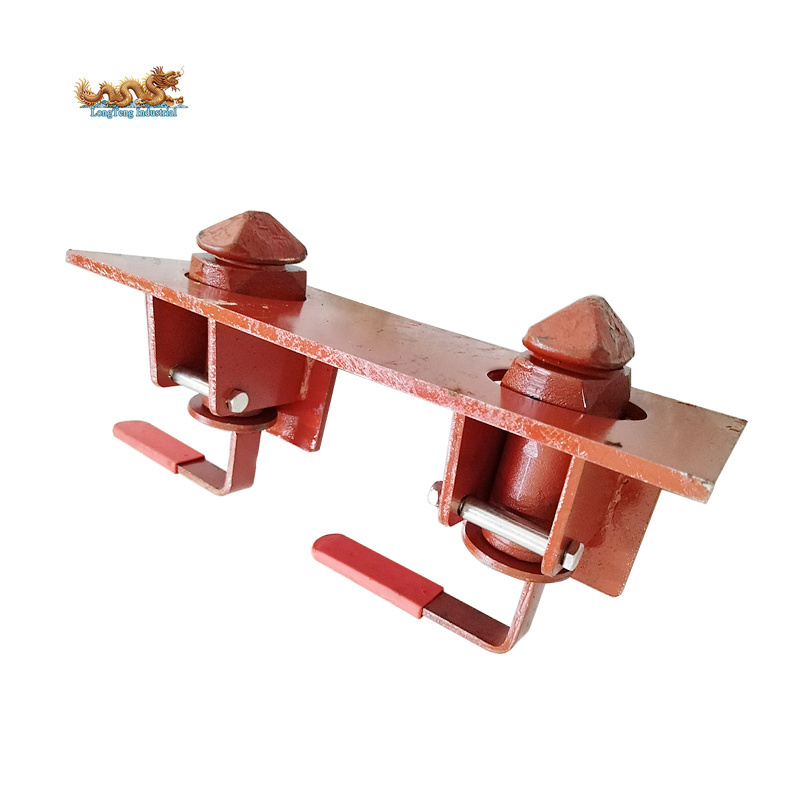

ISO Type Trailer Container Twistlock
Europe Type Trailer Twistlock
Product Datasheet
|
Container trailer twist lock hardware:
|
|
|
|
|||
|
Type:
|
Europe Type
|
|
Standard Type
|
|||
|
|
Heavy One
|
Light One
|
---
|
|||
|
Weight:
|
15.50kgs
|
10.50kgs
|
7.5kgs
|
|||
|
Max load
|
34000kgs
|
30500kgs
|
30500kgs
|
|||
|
Lock pin
|
Ø52mm
|
Ø38mm
|
---
|
|||
|
Materials:
|
Casting steel / Iron
|
|
|
|||
|
Standard:
|
Meet ISO/TS16949:2002
|
|
|
|||
|
Purpose:
|
Designed to secure ISO containers and special containers to any type of trailer.
|
|
|
|||
|
Finish:
|
Black Oxide Primer/Red color
|
|
|
|||
|
Packing:
|
100 pcs in one pallet box
|
|
|
|||
