Quick Details
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
depend on model
-
Weight:
-
2000 KG
-
Product name:
-
Professional Manufacturers Flotation Mineral Processing Engineering
-
Color:
-
Customers' Requirements
-
Spare parts:
-
supply all year round
-
Installation:
-
Technical Guidance
-
Trough capacity:
-
0.37-8m3
-
Blade diameter:
-
300-760mm
-
Production capacity:
-
0.2-8m3/min
-
Blade rotation speed:
-
191-352r/min
Quick Details
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGJI
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
depend on model
-
Weight:
-
2000 KG
-
Product name:
-
Professional Manufacturers Flotation Mineral Processing Engineering
-
Color:
-
Customers' Requirements
-
Spare parts:
-
supply all year round
-
Installation:
-
Technical Guidance
-
Trough capacity:
-
0.37-8m3
-
Blade diameter:
-
300-760mm
-
Production capacity:
-
0.2-8m3/min
-
Blade rotation speed:
-
191-352r/min

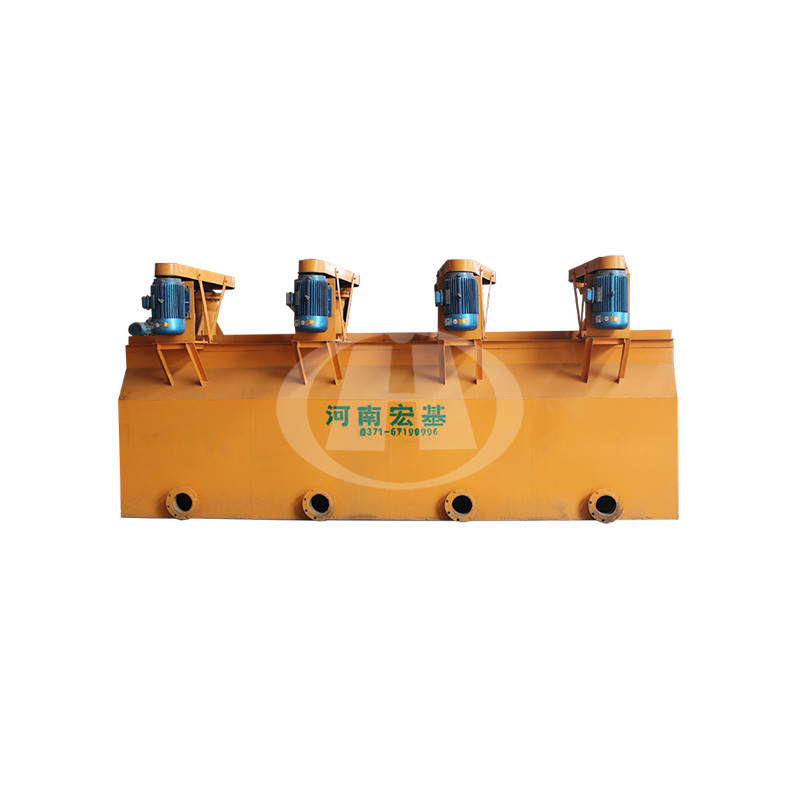

Factory Price Chrome Copper Ore Mining Flotation Beneficiation Concentration Plant
Introduction
With the development of mining industry, investors present various requirements of the features of flotation machine. Now there are many kinds of flotation machines in Hongji, such as agitator flotation machine, pneumatic flotation machine and pneumatic- agitator flotation machine. And different mineral ores have different hydrophilicity, so the final configurations greatly depend on the professional designs.
Application of Flotation Machine
Flotation machine are mainly used in mineral ore dressing plants, selecting the valuable mine from gangue. It is applicable for the separation of numerous of mineral ores, such as fluorite and talc, gold ore, copper ore, iron ore and zinc ore and so on.
Features of Flotation Machine
1. Large air-absorption capacity and low energy consumption
2. Optimistic structure design & Excellent performance
3. Reasonable circulation of mineral slurry
4. Automatic control Easy to adjust
| SF Model | Diameter (mm) | Rotational Speed (r/min) | Capacity (m³/min) | Main Motor | Scraper Motor | Size (mm) | ||
| Model | Power (kw) | Model | Power(kw) | |||||
| SF0.15 | 200 | 536 | 0.06-0.18 | Y100-6 | 1.5 | Y80L-4 | 0.55 | 500×500× 600 |
| SF0.37 | 296 | 386 | 0.2-0.4 | Y90L-4 | 1.5 | Y80L-4 | 0.55 | 700×700× 750 |
| SF-1.2 | 450 | 312 | 0.6-1.2 | Y32M-6 | 5.5 | 90S-4 | 1.1 | 1100×1100× 1100 |
| SF-2.8 | 550 | 268 | 1.5-3.5 | Y180L-6 | 11 | Y100L6 | 1.5 | 1700×1600× 1150 |
| SF-4 | 650 | 220 | 2-4 | Y200L-8 | 15 | Y100L6 | 1.5 | 1850×2050× 1200 |
| SF-8 | 760 | 191 | 4-8 | Y250M8 | 30 | Y100L6 | 1.5 | 2200×2900× 1400 |
| SF-10 | 760 | 191 | 5-10 | Y250M8 | 30 | Y100L6 | 2.2 | 2200×2900× 1700 |
| JIF-4 | 410 | 305 | 2-5 | Y160L-6 | 11 | Y100L6 | 1.5 | 1600×2150× 1250 |
| JIF-8 | 540 | 233 | 4-10 | Y200L26 | 22 | Y100L6 | 1.5 | 2200×2900× 1400 |
| JIF-10 | 540 | 233 | 4-12 | Y200L26 | 22 | Y100L6 | 2.2 | 2200×2900× 1700 |
