Quick Details
-
Voltage:
-
220v, 220V
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
230*96*140cm
-
Weight:
-
600 KG, 380KGS
-
Model:
-
MT-720Y
-
Max laminating size:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Power of electric heater:
-
2.4 KW
-
Pressure:
-
0~4 Mpa
-
Size:
-
1.15*1.1*1.4m
Quick Details
-
Packaging Type:
-
Cartons, CANS, Stand-up Pouch, Film, case
-
Packaging Material:
-
Plastic, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220v, 220V
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
230*96*140cm
-
Weight:
-
600 KG, 380KGS
-
Model:
-
MT-720Y
-
Max laminating size:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Power of electric heater:
-
2.4 KW
-
Pressure:
-
0~4 Mpa
-
Size:
-
1.15*1.1*1.4m
Product Overview
Automatic Office Equipment Sheet Feeding Laminator Hot Laminating Machine Bopp Hot Film Laminating Machine
Adopt the pneumatic pressure compound
Suitable for brochures, manuals, menus, leaflets, booklets, photographic paper, kraft paper, coated paper, etc.
The edge lapping adopts the backpaper press pre- paper mode, while operating, only input the sheets length,the edge lapping length can achieve the automatic laminating, the edge lapping precision can reach up ±2mm.
Suitable for brochures, manuals, menus, leaflets, booklets, photographic paper, kraft paper, coated paper, etc.
PRODUCT SPECIFICATIONS
|
Model
|
MT-720Y
|
MT-900Y
|
MT-1000Y
|
MT-1200Y
|
|||
|
Max laminating width
|
650mm
|
850mm
|
980mm
|
1150mm
|
|||
|
Laminating speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|||
|
Laminating temperature
|
60~130℃
|
60~130℃
|
60~130℃
|
60~130℃
|
|||
|
Motor power
|
0.55 KW
|
0.75KW
|
0.75KW
|
1.1KW
|
|||
|
Power of electric heater
|
2.4 KW
|
3.6KW
|
4.8KW
|
5.4KW
|
|||
|
Voltage
|
220V
|
220V
|
220V
|
220V
|
|||
|
Cylinder diameter
|
190∮
|
190∮
|
190∮
|
190∮
|
|||
|
Measurement(L×W×H)
|
1.15×1.1×1.4m
|
1.35×1.1×1.4m
|
1.55×1.25×1.45m
|
1.75×1.25×1.45m
|
|||
|
Weight
|
380KGS
|
500KGS
|
580KGS
|
650KGS
|
|||
|
Pressure
|
0~4 Mpa
|
0~5 Mpa
|
0~10 Mpa
|
0~10 Mpa
|
|||
|
Trimming knife&Perofrating Knife
|
Yes
|
|
|
|
|||
|
Auto paper feeding
|
Conveyor belt
|
|
|
|
|||
|
Hot & cold laminate
|
Yes
|
|
|
|
|||
|
Recommended film
|
25-250mic
|
|
|
|
|||
Details Images
Heating roller 140mm diameter
Temperature controller
Film slitting
Conveyor belt feeding, double-sided lamination

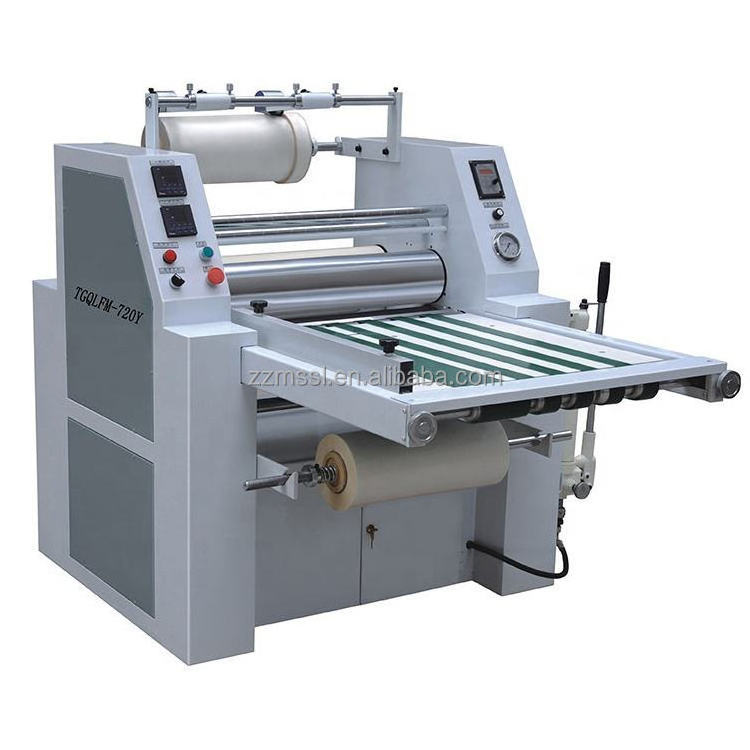

Overall look
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Or according to your request.
