1.8m Ultra-wide-body cockpit
Truck 3.7m long cargo compartment
The inner width of the cargo box is 1770mm, and the van has 11m3 cargo space
- Product Details
- {{item.text}}
Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
<=5000 kg
-
Drive Wheel:
-
6X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Brand Name:
-
DFSK
-
Place of Origin:
-
Chongqing, China
-
Size:
-
5960*1885*2540
-
Cargo Tank Dimension:
-
3695*1835*1620
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
Market Segement:
-
Logistics transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
<=5000 kg
-
Drive Wheel:
-
6X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Brand Name:
-
DFSK
-
Place of Origin:
-
Chongqing, China
-
Size:
-
5960*1885*2540
-
Cargo Tank Dimension:
-
3695*1835*1620

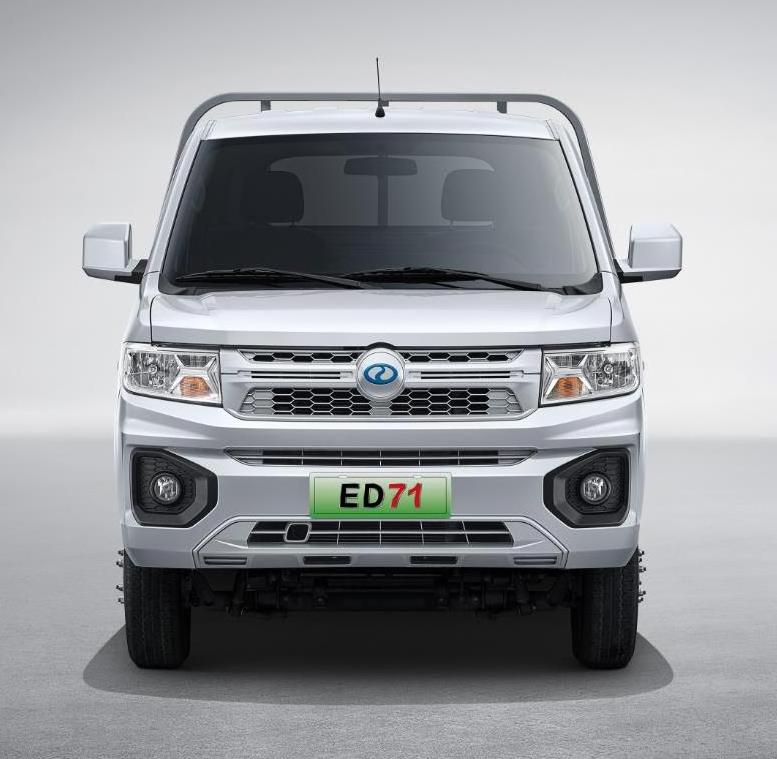

DFSK electric delivery trucks ED71 model 276 km per charging 2.5 tons loading 6 wheels 6*2 electric vehicle truck cargo van
Pictures
Configuration
|
Model
|
|
ED71 standard
|
ED71 with cargo box
|
ED71 refrigerated
|
|
Basic parameters
|
Length× W×H(mm)
|
5990×1870×2035
|
5960×1885×2540
|
5995×1890×2650
|
|
|
Carton size(mm)
|
3700×1770×370
|
3695×1835×1620
|
3615×1720×1600
|
|
|
Kerb weight(kg)
|
1905
|
2055
|
2315
|
|
|
Number of doors (pcs)
|
2
|
2
|
2
|
|
|
Number of seats
|
2
|
2
|
2
|
|
|
Maximum load mass (kg)
|
1460
|
1310
|
1050
|
|
|
Van cargo volume (m³)
|
/
|
11.0
|
9.9
|
|
Motor/Battery
|
Total motor power (kW)
|
90
|
90
|
90
|
|
|
Battery type
|
Lithium iron phosphate
|
Lithium iron phosphate
|
Lithium iron phosphate
|
|
|
Power battery level (kWh)
|
60.152
|
60.152
|
60.152
|
|
|
Operating Range (CLTC)
|
276
|
276
|
265
|
|
|
Operating Range (NEDC)
|
/
|
/
|
/
|
|
Other Configurations
|
Battery heating function
|
Yes
|
Yes
|
Yes
|
|
|
ABS anti-lock braking
|
●
|
●
|
●
|
|
|
Manual air conditioning
|
●
|
●
|
●
|
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;
Features
DFSK ED71
electric delivery trucks
With
Big Space
DFSK ED71
electric truck cargo
High Loading Weight
185 double rear wheels, 6/7+6 pieces of strong carrier leaf springs, stronger bearing capacity.
160*5mm straight through girder, light truck class rear axle bearing system.
High Performance DFSK ED71
electric vehicle cargo van
60.152kwh high-capacity battery, surpassing the same class (90KW) motor
Single pack battery design, higher transmission efficiency.
CLTC-276km long endurance
DFSK ED71 Electric Truck High Safety
Surpassing the 50mm long nose and independent cargo box design in the same class, it is safer to use.
Designed according to the life cycle of small light trucks, the service life is longer.
Leading braking system in its class, driving is safer.
Photo Gallery
Package & Transport
RORO SHIPPING
CONTAINER SHIPPING
