>> The perfect combination between energy-conservation drive system and low speed energy-conservation engine builds the one and only 3t energy-conservation product in the industry, with the economy superior by >10% to the industry's like products.
>> The transmission is applied with the optimal lubrication system design technology to thoroughly improve the industry's difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.
>> With the application of the exclusive high strength single plate beam skeleton structure, the "load-carrying material ratio" is remarkably leading the industry products.
>> The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
8900*3200*3600 mm
-
Machine Weight:
-
23500 kg, 23500 Kg
-
Bucket capacity:
-
4.2m3
-
Specification:
-
8900*3200*3600 mm
-
Load and Unload Mode:
-
Front Discharge
-
Bucket Capacity:
-
4.2m3
-
Rated Power:
-
216kw
-
Wheel base:
-
3450 mm
Quick Details
-
Engine Brand:
-
Famous Brand
-
Power:
-
216kw
-
Brand Name:
-
KAITIAN
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
8900*3200*3600 mm
-
Machine Weight:
-
23500 kg, 23500 Kg
-
Bucket capacity:
-
4.2m3
-
Specification:
-
8900*3200*3600 mm
-
Load and Unload Mode:
-
Front Discharge
-
Bucket Capacity:
-
4.2m3
-
Rated Power:
-
216kw
-
Wheel base:
-
3450 mm
Products Description
Wheel Loader 7000kg Articulated Payloader Front End Wheel Loader Used for Granary or Sugar Cane
>> Introduction
As an outstanding representative of the industry's super-heavy-duty models, LW300KN boasts remarkable advantages in terms of "High energy-conservation, efficiency, reliability, and comfort" compared with industry-like products and is extensively applicable for earth-moving projects, aggregate yards, municipal constructions, and other bulk material transports.
>> Characteristic
|
China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional This Self Loading Concrete Mixer is driven by YUCHAI,Turbo-charged , Water -cooled Diesel Engine.
|
Full electro-hydraulic, double high and low speed, highand low gear picture.
Two-way driving of the body,two sets of working instrument panels and two sets of braking systems. |
Articulated steering 42 °, large steering angle, increaseworking efficiency in narrow spaces.
|
|
Stronger Pin And Pin Sleeve Forabetter Wear-Resistantand Longer Lifespan/Service. We Use High Temperaturequenched Material,Through
A Special Processing To Makesure Joints Stronger And Smoother. |
The Use Of Special Customized Engineering Tires,Tread Width Of Tires Are 3-5Cm Wider.It Will Increase Drivingsafety, Ensure The Stability Of The Loader.
|
Special Design of Cylinder Which Push Right Direct Tothe Back Arm Assuresaless Lifting Resistance And Easier Movement.
|
PRODUCT SPECIFICATIONS
|

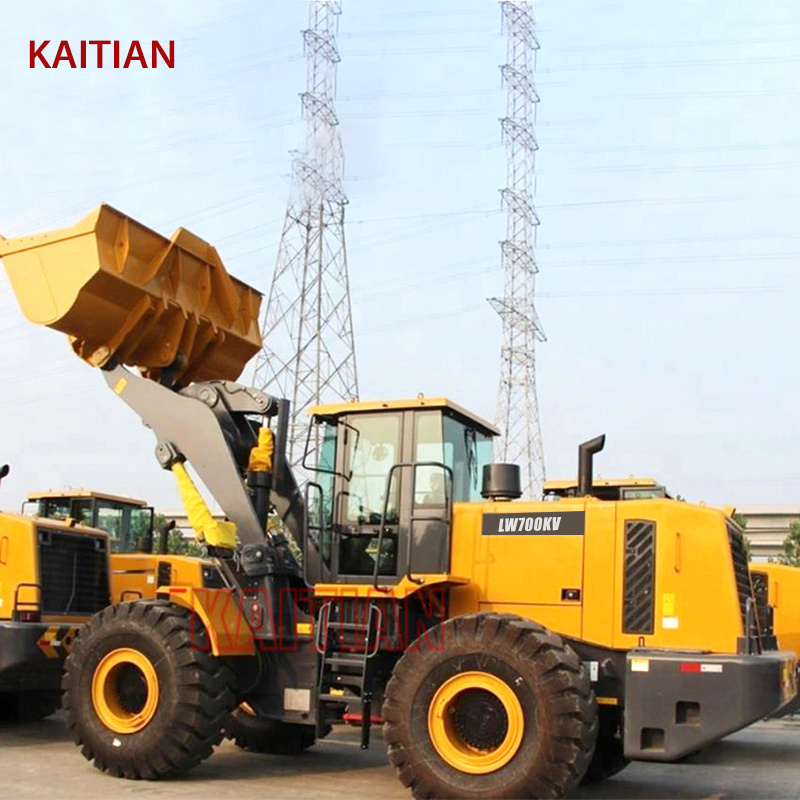

LW700KV
|
Unit
|
Parameter value
|
|
Wheel base
|
mm
|
3450
|
|
Tread
|
mm
|
2360
|
|
Tire outside width
|
mm
|
3070
|
|
Hinge height at maximum lifting height
|
mm
|
4395
|
|
Hinge height during loading
|
mm
|
270
|
|
Ground clearance
|
mm
|
520
|
|
Overall machine dimension L×W×H
|
mm
|
8900×3200×3600
|
|
Rated operating load
|
kg
|
7000
|
|
Bucket capacity
|
m³
|
4.2
|
|
Machine weight
|
kg
|
23500
|
|
Max.breakout force
|
kN
|
200
|
|
Hydraulic cycle time-raise
|
s
|
6
|
|
Total cycle time
|
s
|
10.8
|
Production Process
Product packaging
Our Advantages
|
>> Pre-sale service
Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales
We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special requirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service
We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using. |
