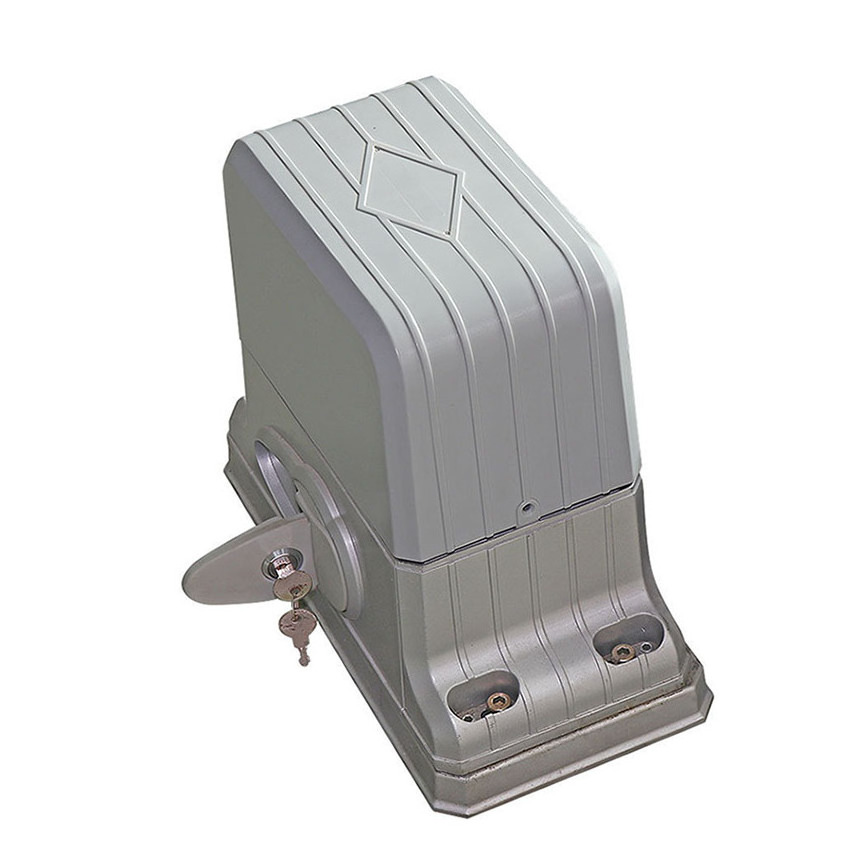

sliding door motor automatic machine to close the door

FOB Reference Price: Get Latest Price

≥1 Sets

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel

Place of Origin:: Guangdong, China

Brand Name:: WEJOIN

Model Number:: WJKMP202

Frequency:: 50hz/60hz

Current:: 2.7a/5.8a

Motor voltage:: ac220v/110v

Output power:: 350W

Torque:: 35nm

Mode number:: M=4

Reduction ratio:: 23:1

Motor making technique:: Die casting aluminum alloy

Manual release:: yes

Keywords:: sliding gate motor

Quick Details

Warranty:: 1 Year

After-sale Service:: NONE

Project Solution Capability:: NONE

Application:: Hotel

Place of Origin:: Guangdong, China

Brand Name:: WEJOIN

Model Number:: WJKMP202

Frequency:: 50hz/60hz

Current:: 2.7a/5.8a

Motor voltage:: ac220v/110v

Output power:: 350W

Torque:: 35nm

Mode number:: M=4

Reduction ratio:: 23:1

Motor making technique:: Die casting aluminum alloy

Manual release:: yes

Keywords:: sliding gate motor

sliding door motor automatic machine to close the door

Product Description

Specification

1) Integrated mechanical and eletrical,all functions on one controller
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key-stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control

Motor Data Contact Us Save Money

Model	WJKMP202
Voltage	220V ±10%	110V ±10%
Frequency	50HZ	60HZ
Current	2.7A	5.8A
Motor voltage	AC220V / 110V
Capacitor	20 μf	60 μf+14μf
Output Power	350W
Absorbed power	594W	638W
Torque	35nm
Mode number	M=4
Motor speed	1350rpm	1620rpm
Reduction ratio	23:1
Gear speed	58.5rpm	70.2rpm
Travel speed	11m/min	13.2m/min
Working temperature	-40°C∼+55 °C
Overload protection temperature	130 °C
Motor making technique	Die casting aluminum alloy
Manual Release	Yes
Product weight(approx)	10.19kg	10.25kg
Max.weight of gate	1800kg

Electronic Data

Model	WJKMP202
Soft start	YES
Stop on obstacle (sensitivity adjustable)	YES
Auto warming-up (at freezing temperature)	YES
Remote control	418MHZ(50m,approx)
Wire control	Available
Auto closing	YES
Vehicle loop detector socket	YES
Photocell socket	YES
Alarm light socket	YES

If you are not sure whether it is what you need,you need our support. Click Here

WJKMP 202 Dimension

Installation Drawing

Optional Parts

Detailed Images

About Us

SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.

Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

If you would like to know more about our company, please contact us . Click Here

Packaging & Shipping

Packing list

Name	Quantity	Unit	Remark
Sliding gate operator	1	set	Necessary
Remote control	2	pcs	Necessary
Internal hexangular bolt	4	pcs	M8*40
Internal hexangular bolt	4	pcs	M6*16
Left limit iron	1	pcs	Necessary
Right limit iron	1	pcs	Necessary
Base board	1	pcs	Necessary
Release key	2	pcs	Necessary
Manual	1	pcs	Necessary
Infrared photocell	1	set	Optional
Radio emitter	1	set	Optional
