Quick Details
-
Brand Name:
-
gs
-
Product name:
-
2 Way Timer Controlled Drain Valve
-
Type:
-
2-way
-
Body material:
-
Stainless Steel
-
Seat material:
-
PTFE
-
Connection:
-
Female Thread
-
Voltage:
-
12V,24V electric ball valve
-
MOQ:
-
1 Piece
-
Drain Valve:
-
Timer Controlled Drain Valve
-
2 Way Valve:
-
2 Way Drain Valve
Quick Details
-
Port Size:
-
1/2"-1"
-
Place of Origin:
-
Henan, China
-
Model Number:
-
Q911F
-
Brand Name:
-
gs
-
Product name:
-
2 Way Timer Controlled Drain Valve
-
Type:
-
2-way
-
Body material:
-
Stainless Steel
-
Seat material:
-
PTFE
-
Connection:
-
Female Thread
-
Voltage:
-
12V,24V electric ball valve
-
MOQ:
-
1 Piece
-
Drain Valve:
-
Timer Controlled Drain Valve
-
2 Way Valve:
-
2 Way Drain Valve

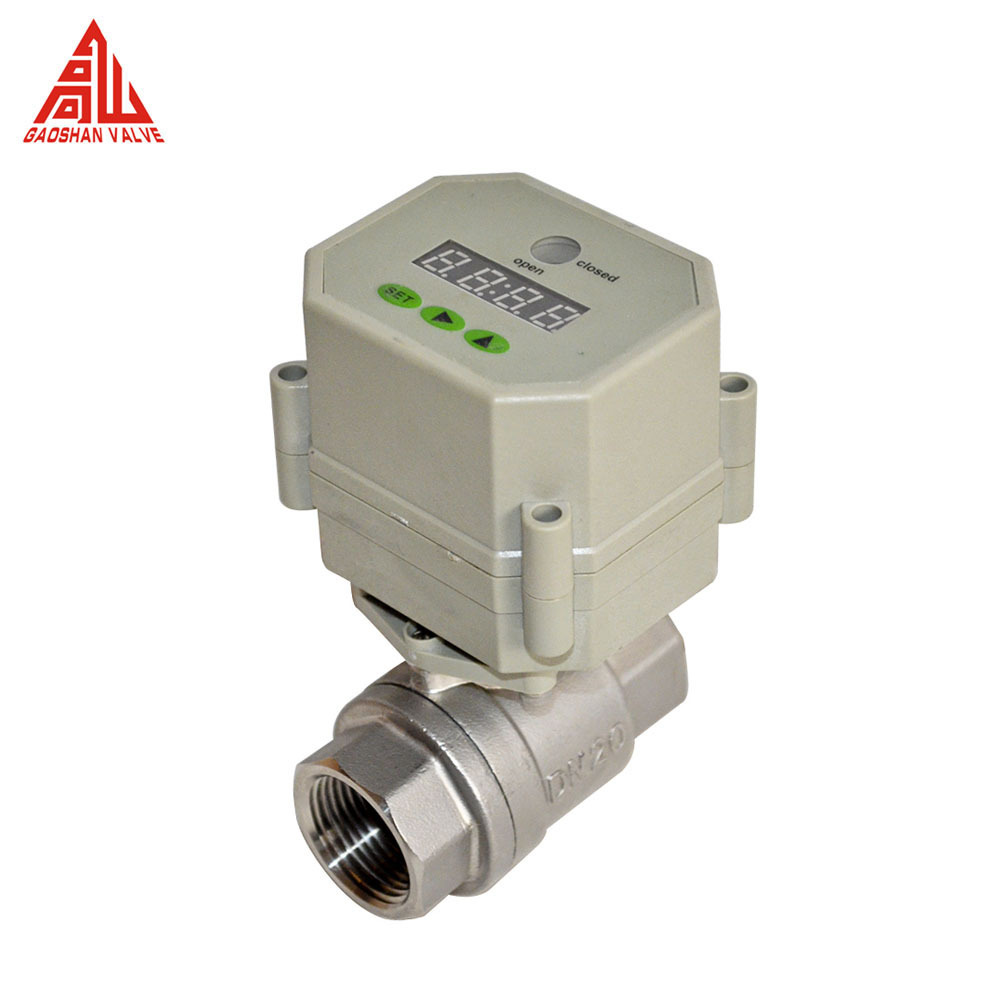

2 Way Timer Controlled Drain Valve
1.Feature:
(1).Applicable medium:water,gas,steam ,oil
(2).Applicable temperature :-20~200 o C.
2.DN&PN:
Diameter (inch):1/2" - 1"
Pressure(psi):200psi - 1000WOG
3.Technical Parameters:
| Product size | NPT/BSP 1/2"-1" |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid air |
| Rated voltage | AC/DC-24V AC110-230V(Optional) |
| Valve keeping open time | 00:00:00 99:59:59S |
| Valve keeping closed time | 00:00:00 99:59:59S |
| Working current | ≤500MA |
| Life time | 70000times |
| Valve body material | 304 stainless steel /brass |
|
Sealing material |
FKM & PTFE |
| Actuator materila | Engineering plastics |
| Actuator rotation | 90 ° |
| Max.torque force | 2Nm |
| Protection class | IP67 |
1.Packing: carton , plywood cases
2.Shipment: Within 20days after your po.
1.Best price with high quality,
2.18 months Guarantee Period.
3.The standard could be ANSI,DIN,GB,ISO,GOST,BS and so on.
