Quick Details
-
Warranty of core components:
-
8months
-
Engine Brand:
-
YTO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Uzbekistan
Quick Details
-
Rated Power (HP):
-
other
-
Brand Name:
-
Taishan
-
Place of Origin:
-
Shandong, China
-
Warranty of core components:
-
8months
-
Engine Brand:
-
YTO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Uzbekistan
|

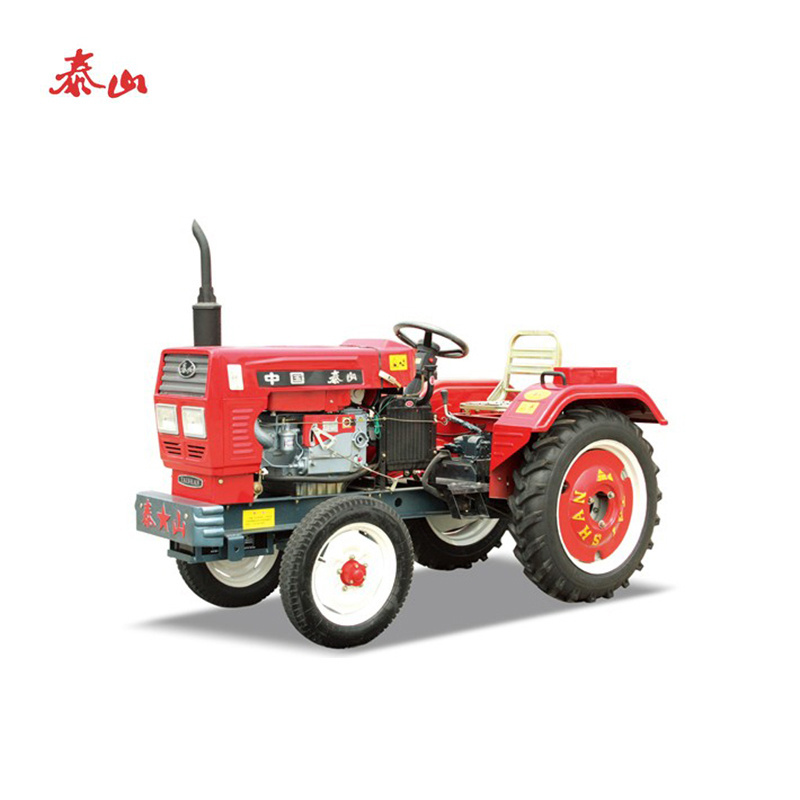

Tractor Parameters
|
Model |
GT180 |
|
|
Drive Type |
2 WD |
||
|
Overall Dimensions L×W×H (mm): |
2920X1270X1875 |
||
|
Wheel Track (mm) |
Front |
890(adjustable) |
|
|
Rear |
960(adjustable) |
||
|
Wheel Base (mm ) |
1450 |
||
|
Ground Clearance (mm) |
Under Front Axle |
245 |
|
|
Under Rear Axle |
245 |
||
|
Rated Traction Force ( kn ) |
3.5 |
||
|
Construction Mass (kg) |
1041 |
||
|
Min. Turning Radius (m) |
3.0/3.3 |
||
|
Theoretical Speed (km/h) |
Forward |
2.45-28.55 |
|
|
Reverse |
5.9 |
||
|
Engine Specification
|
Model |
Laichai LC1110ED |
|
|
Type |
1 -cylinder, Upright inline cylinder, radiator cooling, 4-st rok e cycle, |
||
|
Rated Power (kW/hp) |
13.24/18 |
||
|
Rated Speed (rpm) |
2200 |
||
|
Bore × Stroke (mm) |
110x115 |
||
|
Total Displacement (L) |
1.903 |
||
|
Engine for O ptions |
Model |
Jiangdong, Laidong |
|
|
Drive System
|
Clutch |
single-action , dry constant meshing |
|
|
Gear Box |
6 +1 sliding gear shift |
||
|
Main Drive |
One Pair of Spiral Bevel Gears |
||
|
Differential |
Bevel Gear |
||
|
Differential Lock |
Sliding pin, foot operated |
||
|
Final Transmissions |
Gear transmission |
||
|
Traveling Mechanism
|
Tire |
Front |
5.5-16 |
|
Rear |
9.5-24 |
||
|
Steering Gear |
M echanical |
||
|
Brake |
drum brake |
||
|
Working Device
|
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point ( Kn ) |
3.176 |
|
3-Point Suspension |
Category: I |
||
