Quick Details
-
Model Number:
-
ZS-PE-22
-
Specification:
-
4m or customized
-
Length:
-
16-50MM
-
Thickness:
-
1.0-1.9mm
-
Standard:
-
ISO4427-1996
-
Color:
-
White Orange,Grey or as request
-
Product name:
-

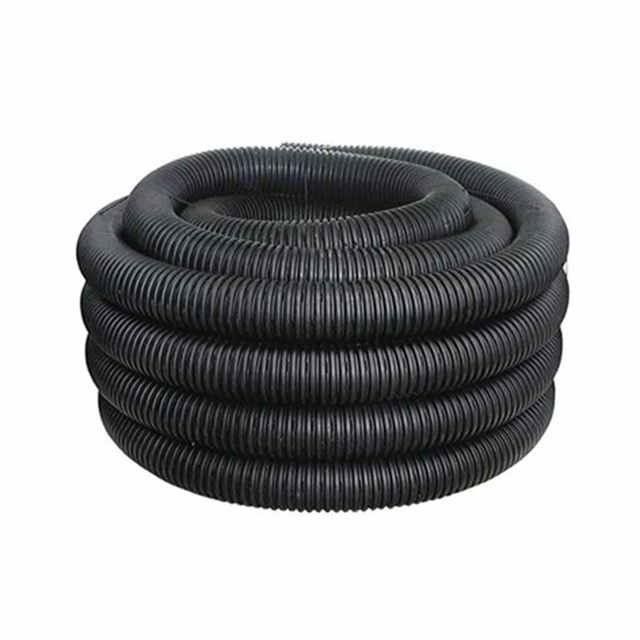

PVC corrugated conduit
-
Feature:
-
Flexible,insulation, tensile,propertity
-
Application:
-
Wire Protecting
-
Name:
-
conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHUOSHI
-
Model Number:
-
ZS-PE-22
-
Specification:
-
4m or customized
-
Length:
-
16-50MM
-
Thickness:
-
1.0-1.9mm
-
Standard:
-
ISO4427-1996
-
Color:
-
White Orange,Grey or as request
-
Product name:
-
PVC corrugated conduit
-
Feature:
-
Flexible,insulation, tensile,propertity
-
Application:
-
Wire Protecting
-
Name:
-
conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
PVC flexible Pipes (HDPE corrugated pipes) have rugged design, sturdy construction, flawless finish, dimensional precision, high-strength, leakage proof, easy to fit, excellent durability, high pressure tolerance, high temperature tolerance, longer service life and outstanding performance under the harshest conditions are the irresistible benefits of PVC flexible pipes (PVC corrugated pipes) and fittings.
Product description
Specification of conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
|
A |
B |
Length |
Weight |
|
15mm |
20mm |
25m |
1825g |
|
15mm |
20mm |
50m |
3650g |
|
20mm |
25mm |
25m |
1825g |
|
20mm |
25mm |
50m |
3650g |
|
25mm |
32mm |
25m |
3950g |
|
25mm |
32mm |
25m |
7900g |
|
Outer diameter |
Allowable tolerance of outer diameter |
Minimum inner diameter |
Minimum wall thickness |
Length(m) |
|
16 |
-0.3 |
12.2 |
1.0 |
4 |
|
20 |
-0.3 |
15.8 |
1.1 |
4 |
|
25 |
-0.4 |
20.6 |
1.3 |
4 |
|
32 |
-0.4 |
26.6 |
1.5 |
4 |
|
40 |
-0.4 |
34.4 |
1.9 |
4 |
Features of conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
1.Corrosion protection
2.Helps electrical monitoring of tendors 3.Good wheathering resistance
4.Good compact and compression strength
5.Good bond with concrete
6.Joining very easy
7.Speedy installation due to fever joints 8.Enhance fatigue life of tendons
9.Chemically inert
10.Environment friendly
11.High Stiffness and flexibility
Applications of conduit pvc pipeduct pipe hose corrugated flexible wiring conduit
1Power plant
2,Power transmission system
3,communication system,
4.building factory,transportation system
5.project or cable outside the construction&plant
