2011--HH4E series Digital Timer Counter Timer Relay switch

2011--HH4E series Digital Timer Counter,Timer Relay switch

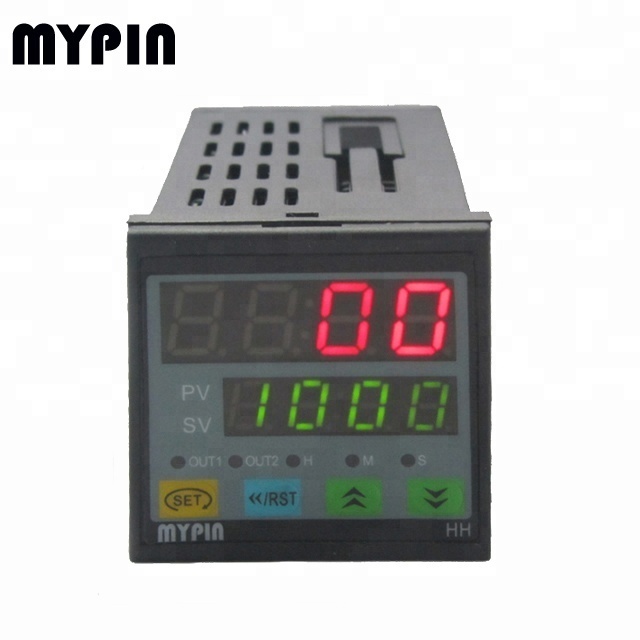

HH4 series, 48*48*80mm,dual line 4 digits display

HH8 series, 48*96*80mm,dual line 6 digits display

Display types conversion:
N type:  timing to preset value and hold the value.
F type:  timing to preset value and keep timing up to max display value-9999.
R type:  timing to preset  delay value,  and keep diaplaying delay time.

Features:

1) Display :4  digit  LED  in Hour, Munite, Second.

2) Scale: 0.01S--9999H for timing.

any for counting.

3) With power fail memory and key lock function.

4) NPN PNP (Rst \ start \ pause)control function , Auto cycle timing and delay output.

5) one alarm output relay/SSR.

6) RS232 or  RS485 communication ( Modbus RTU protocol) for your option.

7) Power supply : 90--265V AC/DC; 24V DC for option.

8) Size : HH4: 48*48      HH8: 96*48.

case class:IP65.

Ordering Code:
