Quick Details
-
Ice storage capacity:
-
10 TONS, 20tons
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FOCUSUN
-
Dimension(L*W*H):
-
4800X1000X2200 ICE making evaporator
-
Weight:
-
13000 KG
-
Model number:
-
FIB-200ES
-
Application fields:
-
Food, seafood, fish Processing
-
Supply Power Requirement:
-
380V 50Hz 3p or 220~240V 60Hz 3p
-
HS code:
-
8418699020
-
Cooling way:
-
Water cooling or evaporative cooling
-
Refrigerant type:
-
R404A or R507A
-
Ice block weight:
-
25kg/per ice block
-
Ice freezing time:
-
6-7 Hours Per Shift
-
Control system:
-
Siemens PLC Program System
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380V
-
Power:
-
95KW
-
Ice storage capacity:
-
10 TONS, 20tons
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FOCUSUN
-
Dimension(L*W*H):
-
4800X1000X2200 ICE making evaporator
-
Weight:
-
13000 KG
-
Model number:
-
FIB-200ES
-
Application fields:
-
Food, seafood, fish Processing
-
Supply Power Requirement:
-
380V 50Hz 3p or 220~240V 60Hz 3p
-
HS code:
-
8418699020
-
Cooling way:
-
Water cooling or evaporative cooling
-
Refrigerant type:
-
R404A or R507A
-
Ice block weight:
-
25kg/per ice block
-
Ice freezing time:
-
6-7 Hours Per Shift
-
Control system:
-
Siemens PLC Program System
Product Description

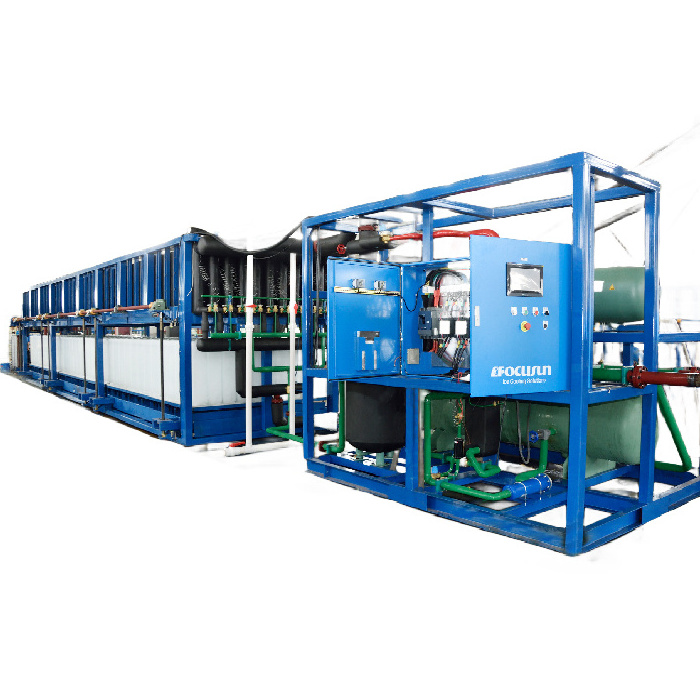

FOCUSUN FIB-200ES ice block machine boasts the following specifications:
- Capacity: Produces an impressive 20,000 kg of ice blocks per day.
- Direct Freezing: Operates without the need for brine water, simplifying the freezing process.
- Freezing Time: Achieves freezing within 6 hours, ensuring quick turnaround for ice production.
- Ice Block Size: Generates ice blocks measuring 245 125 750mm, with each block weighing 25kg. Additionally, it offers flexibility with other standard options including 10kg, 15kg, 20kg, 30kg, and 50kg ice block weights, as well as the possibility for customization according to specific requirements.
The FIB-200ES ice block machine is designed to meet high production demands efficiently and effectively, offering versatility in ice block size and rapid freezing capabilities.
Key Features of the FOCUSUN Direct Cooling Block Ice Machine:
| Features | Description |
|---|---|
| Edible Ice Production without Additives | Large-scale ice blocks are produced without the need for salty water or other cooling mediums, ensuring purity and edibility. |
| Sanitary Ice Formation Process | Ice blocks are formed in a hygienic environment, with a specialized ice contact conveyance system ensuring cleanliness and meeting food safety standards. |
| Advanced Cooling Technologies | Incorporates cycle heat harvesting and direct heat exchange technologies, ensuring stable performance and overcoming previous limitations in large-scale ice production for edible use. |
| Efficient Ice Handling | Specialized ice contact conveyance system facilitates efficient transfer of ice blocks post-formation, enhancing operational efficiency. |
| Versatile Ice Block Sizes | Offers flexibility in ice block sizes, accommodating various application needs and ensuring versatility across different industries. |
| Reliable Performance | Built with robust construction and quality components, ensuring consistent and reliable performance, minimizing downtime, and maximizing productivity. |
This table provides a clear and concise overview of the key features of the FOCUSUN Direct Cooling Block Ice Machine, highlighting its capabilities and benefits for potential users.
|
ITEM |
UNIT |
TECHNICAL PARAMETER |
|
|---|---|---|---|
|
Input power |
voltage/phase/HZ |
380V/3P/50Hz |
|
|
Refrigerant |
R22 or R404A |
||
|
Ice field |
Kg/day |
200000 |
|
|
Cooling way |
Water cooling |
||
|
Temperature |
Ambient temperature |
℃ |
35 |
|
Water Inlet temperature |
℃ |
20 |
|
|
Running power |
Total running power |
kw |
65.3 |
|
Installed power |
kw |
95 |
|
|
Cooling tower fan |
kw |
1.5 |
|
|
Water cooling pump |
kw |
5.5 |
|
|
Water cooling pump power |
kw |
0.75 |
|
|
Compressor |
Manufacture |
Bitzer |
|
|
Refrigerating capacity |
kw |
135.8 |
|
|
Running power |
kw |
68.9 |
|
|
Compressor COP/EER |
Kw/kw |
2.3 |
|
|
Horsepower |
Hp |
40×3sets |
|
|
Working time |
Ice making time |
hour(h) |
7.5 |
|
Ice doffing time |
hour(h) |
0.5 |
|
|
Outline size |
Weight of block ice |
Kg/block |
50 |
|
Block ice machine outline size |
(length×width×height)(mm) |
480×160×700 |
|
|
Machine modular outline size |
(length×width×height)(mm) |
2000×1200×1600 |
|
|
Evaporator module quantity |
3pieces |
||
|
Evaporator module outline size |
(length×width×height)(mm) |
4800×1000×2200 |
|
|
Cooling tower outline size |
(external diameter×height)(mm) |
2175×2565 |
|
|
Dimensions of water supply pipe cooling tower |
3/4” |
||
|
Cooling water pipe size |
4” |
||
|
Inlet pipe size of ice machine |
1-1/4” |
||
|
Running weight |
Machine unit |
kg |
2560 |
|
Evaporator |
kg |
11440 |
|
|
Cooling tower |
kg |
1120 |
|
|
Water pressure requirements |
Bar |
1 |
|
Our Services: Installation for Block Ice Machine
-
User Installation:
- We ensure the machine is tested and installed before shipment.
- All necessary spare parts, operation manuals, and CDs are provided to guide the installation process.
-
Installation by FOCUSUN Engineers:
- Our engineers can be dispatched to assist with the installation and provide technical support and training for your workers.
- The end-user is responsible for providing accommodation and round-trip tickets for our engineers.
- Prior to our engineers' arrival, the installation site, electricity, water, and necessary tools should be prepared. A Tool List will be provided with the machine upon delivery.
- All standard spare parts are provided. However, any additional parts required due to specific installation site requirements, such as water pipes, will be at the buyer's expense.
- For larger projects, 2 to 3 workers are recommended to assist with the installation process.
Our installation services ensure that your block ice machine is set up correctly and efficiently, providing you with peace of mind and optimal performance.
Warranty:
- Enjoy a comprehensive 15-month warranty starting from the date of delivery.
- Count on our dedicated after-sales department for round-the-clock technical support. Rest assured, all complaints will receive a response within 24 hours.
- Benefit from the expertise of over 15 skilled engineers available to service machinery overseas.
- During the warranty period, spare parts replacements are provided free of charge.
- Trust in Focusun's commitment to excellence even beyond the warranty period, as we continue to offer spare parts at competitive market prices.
At Focusun, our after-sales service is second to none, ensuring that your satisfaction and machine performance remain our top priorities throughout the warranty period and beyond.
