Quick Details
-
Working Width:
-
0.12-0.3m
-
Working Depth:
-
0-1.5M
-
Trench:
-
20width,80depth
-
Trencher type:
-
Chain
-
Contacting way:
-
3-point/PTO
-
Usage:
-
Digging Water Pipe Channel,etc.
-
Function:
-
Ditching Device
-
Related Machines:
-
Tractor
Quick Details
-
Place of Origin:
-
Henan, China
-
Name:
-
3 Point PTO Chainsaw Digging Ditcher Mini Walk Behind
-
Product name:
-
Digging
-
Working Width:
-
0.12-0.3m
-
Working Depth:
-
0-1.5M
-
Trench:
-
20width,80depth
-
Trencher type:
-
Chain
-
Contacting way:
-
3-point/PTO
-
Usage:
-
Digging Water Pipe Channel,etc.
-
Function:
-
Ditching Device
-
Related Machines:
-
Tractor

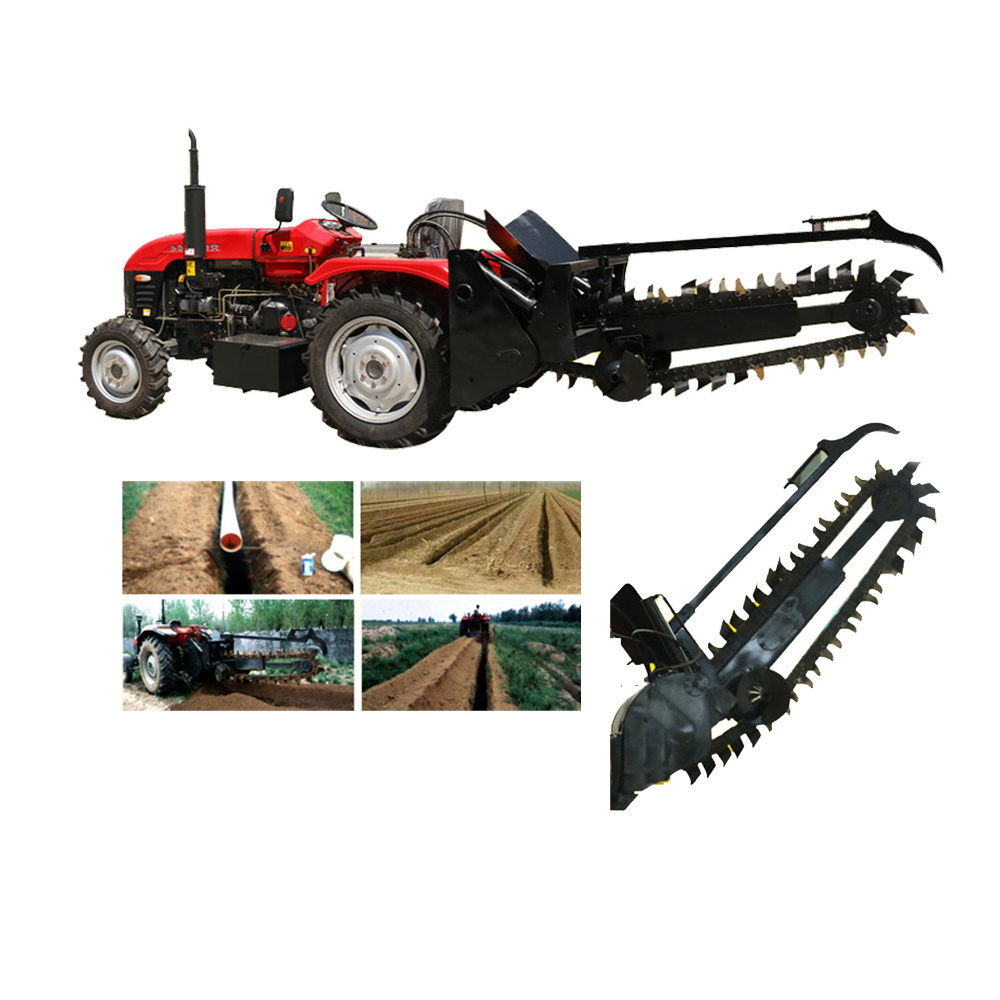

Tractor 3 Point PTO Chainsaw Digging Ditcher Mini Walk Behind Trencher Ditching Machine
1.Our chain mini farm trencher is a new style trenching equipment, supporting the use of small size 4 wheel tractor. This chain ditcher moving forward slowly by establishing independent hydraulic system on the ordinary tractor, making a neat and straight deep ditch.
2.The ditching machine adopt the rear furrow opener, is made up of the power and transmission system, walking system, gear box, transmission chain, furrowing cutting knife, bulldozer, etc.
3.Trencher Ditcher machine has compact and simple structure, small size,easy to operate, high efficiency, best quality, long life time, easy maintenance.
|
Model |
MG-T500 |
|
Working Width |
0.12m-0.3m |
|
Working Depth |
0-1.5m |
|
Working Speed |
300 m/h |
|
Function |
Ditching Trencher Device |
|
Tractor |
50HP |
|
Size of Trencher |
2.8*1.2*1.2M |
|
Weight of Trencher |
800kg |
|
Size of Tractor |
3*1.5*1.55M |
|
Weight |
1.6T |
The farm trencher widely used to furrow for planting deep root crops such as yam,medicinal herbs, etc, excavating irrigation channels,
underground pipe channels, water pipe channels, underground cabling channels and other ditching work .
Packaging: Wooden Crate or Pallet or bare package in standard containers for export;
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance.
And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
