Quick Details
-
Size:
-
Selectable
-
Power:
-
2kw
-
Weight (KG):
-
350 kg
-
Product name:
-
RO Water Treatment System
-
Application:
-
Filtration
-
Function:
-
Producing Fresh Water
-
Type:
-
Pure Water Treatment System
-
RO membrane:
-
DOW Membrane USA Original Vontron
-
Usage:
-
Water Treament
-
Control:
-
Automatic Control
-
Raw water:
-
Tap water rainwater groundwater river water lake water
-
Voltage:
-
220V/380V /Customized
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
HUAYUAN
-
Material:
-
Wooden case, Stainless Steel
-
Size:
-
Selectable
-
Power:
-
2kw
-
Weight (KG):
-
350 kg
-
Product name:
-
RO Water Treatment System
-
Application:
-
Filtration
-
Function:
-
Producing Fresh Water
-
Type:
-
Pure Water Treatment System
-
RO membrane:
-
DOW Membrane USA Original Vontron
-
Usage:
-
Water Treament
-
Control:
-
Automatic Control
-
Raw water:
-
Tap water rainwater groundwater river water lake water
-
Voltage:
-
220V/380V /Customized
Product details

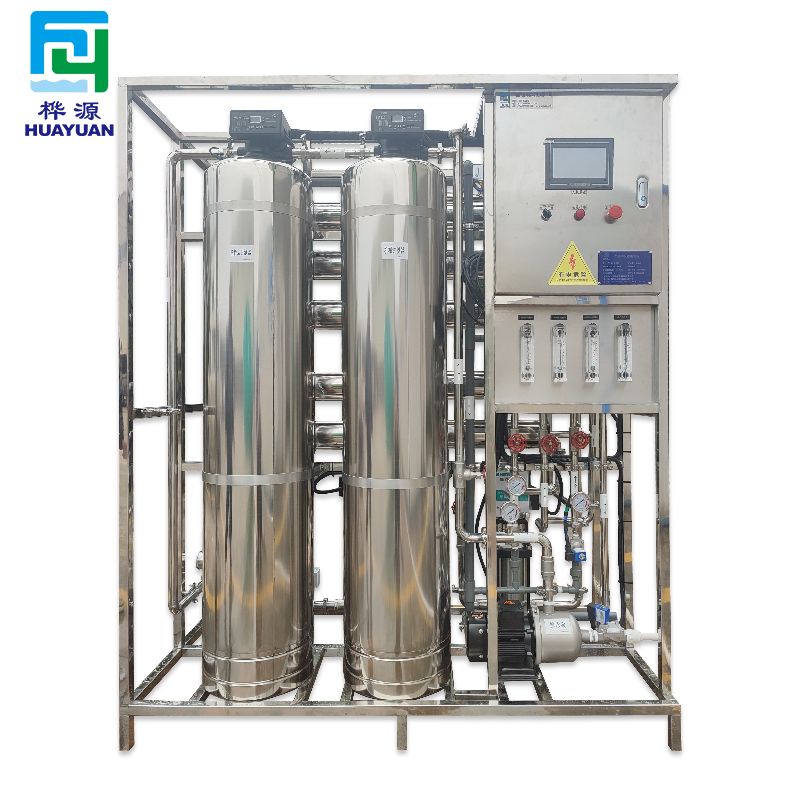

Reverse Osmosis System
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
Product Parameter
|
Function
|
Drinking water, Bottle water, Industrial water, Commercial water
|
|
System
|
Reverse osmosis system, Ultrafiltration system, EDI ultrapure system, Water reuse system, Seawater desalination, Brackish water
desalination |
|
Capacity
|
250/500/750/1000LPH, 2TPH, 3TPH, 4TPH, 5TPH, etc
|
|
Voltage
|
380V, 220V/50HZ etc; (Power supply can be Customized)
|
|
Power
|
2-10 kw
|
|
Raw Water
|
TDS ≤ 1000PPM
Working temperature: 0 ≤ 45°C Well water, tap water, seawater, salt water, brackish water |
|
Produced water quality
|
Conductivity ＜10μs/cm
Total organic carbon ≤ 0.5mg/L Microorganism ＜100cfu/ml |
|
Desalination rate
|
96-99%
|
|
Water recovery rate
|
50-70%
|
|
Work pressure
|
Pretreatment: 0.2—0.4MPa, RO host: 0.8—1.6Mpa
|
|
Material
|
FRP tank, Stainless steel 304, PVC pipe,
|
|
Control
|
Automatic or manual
|
|
Process
|
Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → Ro system → UV → Ozone generator
|
