Quick Details
-
Product name:
-
8IN1 H.264 HD Mpeg4 Encoder Digital Tv Headend Equipment Catv Encoder
-
Input:
-
HD/ASI
-
Output:
-
ASI/IP/MPTS
-
Application Fields:
-
DVB Headend,Hotel IPTV,FTTH IPTV
-
Video code:
-
H.264 Adaptive Field Frame
-
Audio code:
-
MPEG-1 Layer2
-
output bitrate:
-
1 to 20Mbps
-
Power:
-
100-240VAC, 50Hz, 25W
-
audio sampling:
-
32KHz, 44.1KHz, 48KHz
-
Type:
-
MultiChannel 1080P to IP and ASI Converter
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Junpu
-
Model Number:
-
IPTV Solution
-
Product name:
-
8IN1 H.264 HD Mpeg4 Encoder Digital Tv Headend Equipment Catv Encoder
-
Input:
-
HD/ASI
-
Output:
-
ASI/IP/MPTS
-
Application Fields:
-
DVB Headend,Hotel IPTV,FTTH IPTV
-
Video code:
-
H.264 Adaptive Field Frame
-
Audio code:
-
MPEG-1 Layer2
-
output bitrate:
-
1 to 20Mbps
-
Power:
-
100-240VAC, 50Hz, 25W
-
audio sampling:
-
32KHz, 44.1KHz, 48KHz
-
Type:
-
MultiChannel 1080P to IP and ASI Converter
8IN1 H.264 HD Mpeg4 Encoder Digital Tv Headend Equipment Catv Encoder
Product Description

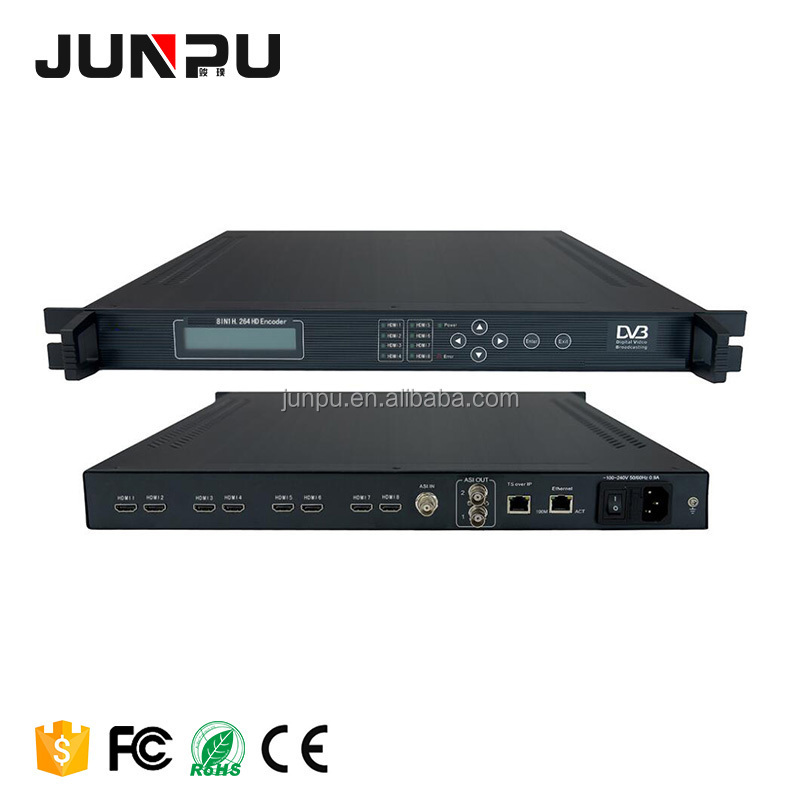

8IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 8*HDMI and ASI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1815 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
