Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUFENGJK
-
Material:
-
Aluminium and steel
-
Lead:
-
100mm
-
Repetitive positioning accuracy:
-
±0.05mm
-
Movement speed:
-
≤2000mm/s
-
Horizontal load:
-
≤20KG
-
Side-mounted load:
-
≤12KG
-
Vertical load:
-
≤8KG
-
Guide rail color:
-
Champagne
-
Structure:
-

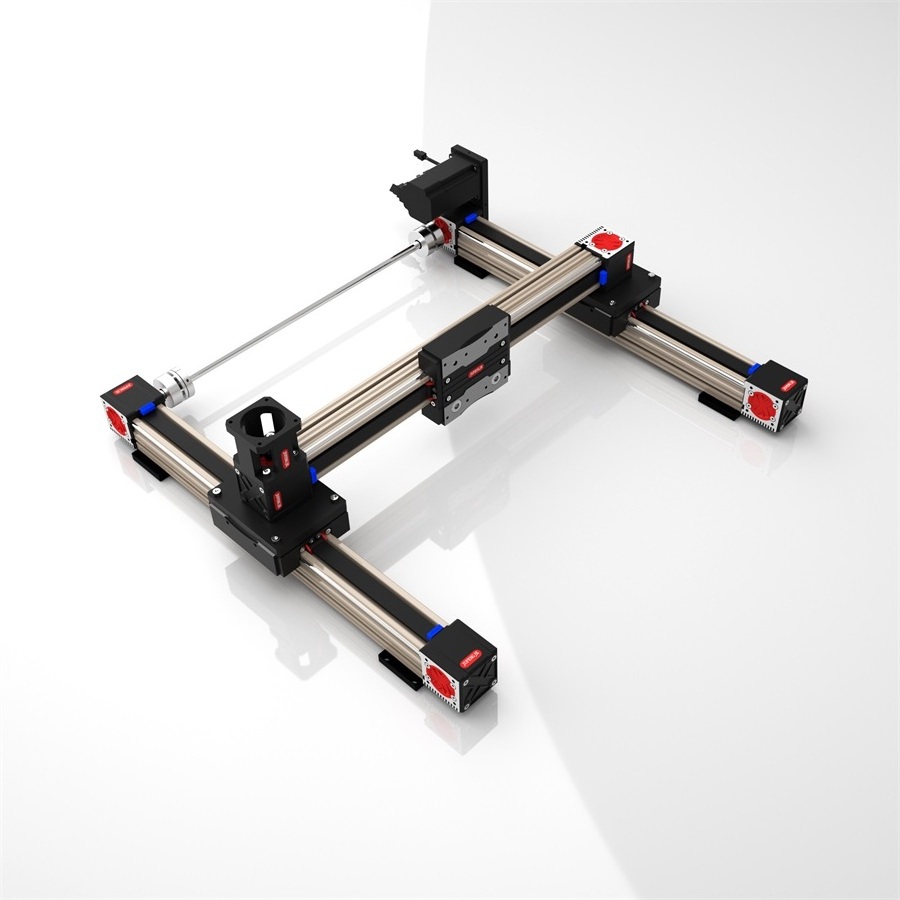

Xy Linear Stage
-
Drive Type:
-
Timing Belt Driving
-
Linear guide application:
-
Transportation Machine Parts
Quick Details
-
Weight (KG):
-
8
-
Marketing Type:
-
New Product 2023
-
Model Number:
-
WDT5050A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUFENGJK
-
Material:
-
Aluminium and steel
-
Lead:
-
100mm
-
Repetitive positioning accuracy:
-
±0.05mm
-
Movement speed:
-
≤2000mm/s
-
Horizontal load:
-
≤20KG
-
Side-mounted load:
-
≤12KG
-
Vertical load:
-
≤8KG
-
Guide rail color:
-
Champagne
-
Structure:
-
Xy Linear Stage
-
Drive Type:
-
Timing Belt Driving
-
Linear guide application:
-
Transportation Machine Parts
If you need to install an additional motor, please provide the motor drawing and we will customize a dedicated motor mounting bracket for you.
Please contact us, we will provide you with more detailed 3D drawings.
|
Valid itinerary (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
|
Total length of the module
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
Weight (KG)
|
3.14
|
3.48
|
3.82
|
4.16
|
4.5
|
4.84
|
5.18
|
5.52
|
5.86
|
Length weight table
The weight in the table does not include the weight of accessories.
|
Valid itinerary (mm)
|
1000
|
1100
|
1200
|
1300
|
1400
|
1500
|
1600
|
1700
|
1800
|
|
Total length of the module
|
1300
|
1400
|
1500
|
1600
|
1700
|
1800
|
1900
|
2000
|
2100
|
|
Weight (KG)
|
6.2
|
6.54
|
6.88
|
7.22
|
7.56
|
7.9
|
8.24
|
8.58
|
8.92
|
|
Specification selection of synchronous belt guide rail
|
|
|
|
|
|
|||||
|
Model
|
Guide rail size(mm)
|
Lead(mm)
|
Horizontal load
|
Side-mounted load
|
Vertical load
|
|||||
|
WDT3030
|
30(W)*30(H)
|
60
|
≤3KG
|
≤2KG
|
≤1KG
|
|||||
|
WDT4040
|
40(W)*40(H)
|
75
|
≤6KG
|
≤6KG
|
≤3KG
|
|||||
|
WDT4045
|
40(W)*45(H)
|
60/75
|
≤8KG
|
≤6KG
|
≤3KG
|
|||||
|
WDT4545
|
45(W)*45(H)
|
75
|
≤12KG
|
≤8KG
|
≤5KG
|
|||||
|
WDT5050
|
50(W)*50(H)
|
100
|
≤20KG
|
≤12KG
|
≤8KG
|
|||||
|
WDT5050A
|
50(W)*50(H)
|
100
|
≤20KG
|
≤12KG
|
≤8KG
|
|||||
|
WDT6060
|
60(W)*60(H)
|
125
|
≤36KG
|
≤20KG
|
≤12KG
|
|||||
|
WDT8080
|
80(W)*80(H)
|
150
|
≤60KG
|
≤35KG
|
≤20KG
|
|||||
Installation Instructions
