Can feed the materials such as fabric, film smoothly, highly improve the work efficiency .
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
25mm acrylic
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
1000 KG
-
Core Components:
-
Laser tube
-
Product name:
-
fabric roller cnc laser engraver cutting machine
-
Color:
-
Red and black
-
Working area:
-
1300*2500mm
-
Auto feeding system:
-
Yes
-
Laser power:
-
150w
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Driving system:
-
Stepper
-
Laser head:
-
1 pc
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-30000mm/min
-
Cooling Mode:
-
Water cooling
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
25mm acrylic
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
1000 KG
-
Core Components:
-
Laser tube
-
Product name:
-
fabric roller cnc laser engraver cutting machine
-
Color:
-
Red and black
-
Working area:
-
1300*2500mm
-
Auto feeding system:
-
Yes
-
Laser power:
-
150w
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Driving system:
-
Stepper
-
Laser head:
-
1 pc
Product Description

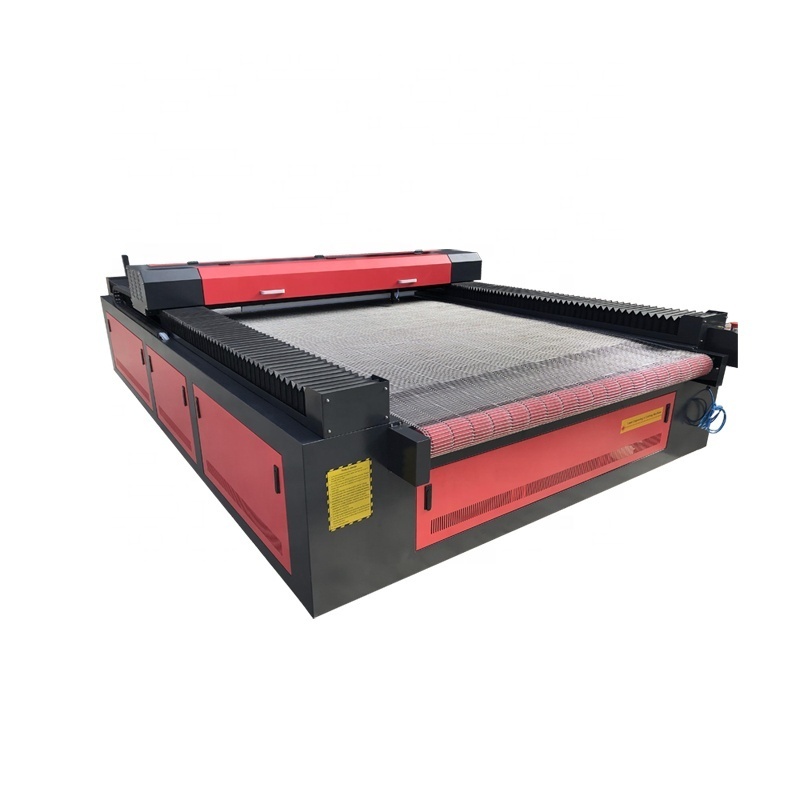

1300*2500mm large fabric roller cnc laser engraver cutting machine
Product Details
:
WH1325 fabric laser cutting machine realizes the processing requirements of large-format material cutting pieces, adopts the machine-level stable working chassis to ensure the stability and accuracy during rapid cutting; the movement system adopts linear guide and precision gear transmission; The fully open stainless steel mesh working platform is easy to operate and is not easy to wear. The whole machine integrates the functions of cutting, cutting and engraving. It has the characteristics of laser drawing, precise retracting and super long continuous cutting, which saves cost and high work efficiency
..
Application Industry .
Suitable for special non-woven fabrics, swimwear, wetsuits, surgical gowns and other special clothing; tents, mountaineering clothes, space suits and other outdoor products; car seat cushions, car interiors, etc.
Suitable material
Fabrics, leather, wool, paper, wood products, plexiglass, rubber, plastics, synthetic materials, etc
.
Machine Photos
Product Parameter
|
Model
|
WH1325
|
|
Product Name
|
CNC laser cutting machine with auto feeding system
|
|
Laser type
|
Sealed glass CO2 laser tube
|
|
Work size
|
Width 1300mm, length is no limited
|
|
Work table size
|
1300*2500mm
|
|
Max diameter of roller
|
1300mm
|
|
Cutting speed
|
0 - 30000mm/min
|
|
Repeat position accuracy
|
±0.1mm
|
|
Mini shaping character
|
English 1mm x 1mm
|
|
Graphic format supported
|
BMP,PLT, DST, DXF, and AI
|
|
Driver system
|
Stepper
|
|
Total power
|
<1500w
|
|
Working temperature
|
0 - 45℃
|
|
Work humility
|
5- 95%
|
|
Cooling system
|
Water cooling
|
|
Assistant parts
|
water pump, air compressor, exhaust fan
|
|
Control system
|
Ruida 6442S
|
|
System compatible
|
CorelDraw AutoCAD Photoshop
|
|
Machine size
|
3000x1600 x 990mm
|
|
Machine weight
|
1300kg
|
Detailed Images
Assistant Parts
Standard assistant parts (Included as default)
Optional parts to improve machine performance
Sample Display
Packing & Delivery
Machine photos
Warranty Term
1.Free training: Intimate after-sales service, professional teaching video plus one-on-one training, let you rest assured to buy, comfortable use of equipment;
2. No worries after sale: If the equipment fails, the solution will be given in the first time to avoid affecting the normal use of each customer. Selling the machine is not the end of our work, it is the beginning of our service, and the excellent technology will protect you after 7*24 hours of sale.
3. Lifetime maintenance: The whole machine warranty is 2 years, the laser protection is 6 months, free technical support is provided for life, and the software and gallery provide free upgrade and maintenance for life;
4. Free style: If you are not sure whether our equipment can meet your ideal effect, you can send us samples, professional technicians will do the sample test for you free of charge
;
Certificate
Our Factory
Jinan Weihua Machinery & Equipment Co., Ltd is located in the Tianqiao district of Jinan City, north of China. Our company is a professional manufacturer and exporter of CO2 laser machines, fiber laser machines, cutting plotter, CNC router and other relevant equipment.
Our company has always been striving to promote the quality and technological innovation of our products to take up a place in global market. The products we provide mainly consist of fiber laser marking machine, CO2 laser engraving and cutting machine and cutting plotter etc. Our machines are widely used in advertising industry, art crafts industry, cloth and leather industry, electronic hardware marking industry, etc.
Our company is a great group, all of of us are sharing the same goal that to offer worldwide customers and prospects high-quality products and best service.
Our company has always been striving to promote the quality and technological innovation of our products to take up a place in global market. The products we provide mainly consist of fiber laser marking machine, CO2 laser engraving and cutting machine and cutting plotter etc. Our machines are widely used in advertising industry, art crafts industry, cloth and leather industry, electronic hardware marking industry, etc.
Our company is a great group, all of of us are sharing the same goal that to offer worldwide customers and prospects high-quality products and best service.
Customers from all over the world are warmly welcome to work with us. It is our goal to create a prosperous future for both us and our customers..
