Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Daewoo
-
Model Number:
-
NB
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
15hp
-
Cable Length:
-
10m/As customer request
-
Outlet Size:
-
1 inch/As customer request
-
Power:
-
15w/As customer request
-
motor:
-
Pure Copper Motor
-
Product name:
-
sand pump
-
Keywords:
-
mud pump
-
Flow:
-
50 m3/h
-
Name:
-
Horizontal Sand Pump Head
Quick Details
-
Application:
-
Mining industry, wastewater treatment, Sand pumping from the bottom of the river
-
Pressure:
-
High Pressure
-
Voltage:
-
380v/As customer request
-
Warranty:
-
1 years
-
Brand Name:
-
Daewoo
-
Model Number:
-
NB
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
15hp
-
Cable Length:
-
10m/As customer request
-
Outlet Size:
-
1 inch/As customer request
-
Power:
-
15w/As customer request
-
motor:
-
Pure Copper Motor
-
Product name:
-
sand pump
-
Keywords:
-
mud pump
-
Flow:
-
50 m3/h
-
Name:
-
Horizontal Sand Pump Head
Product Description

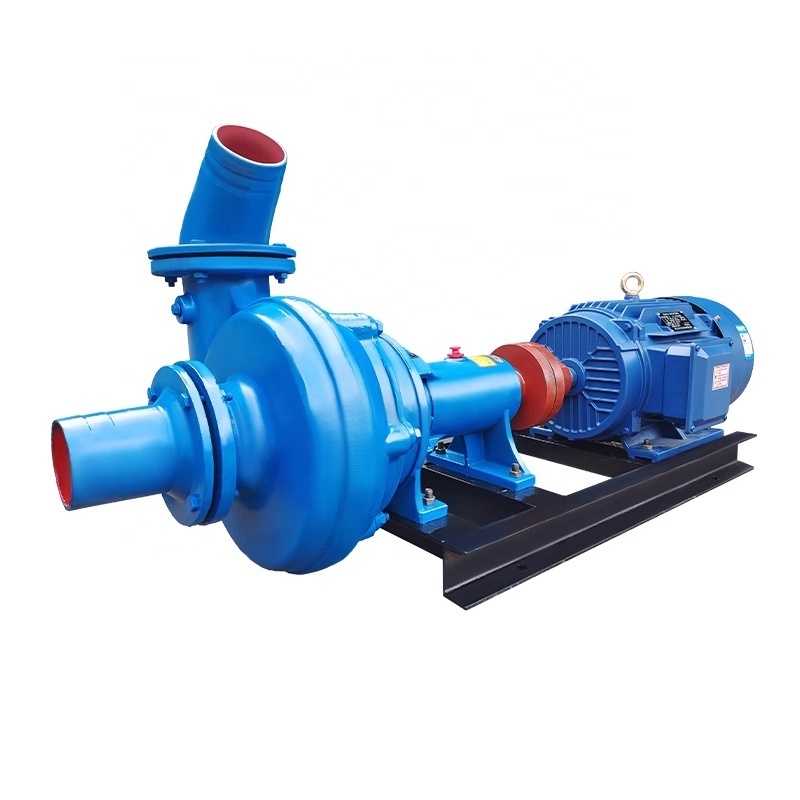

Sand suction machine is the powerful equipment to pump sand and gravel equipped on dredger ship or boat. Our sand suction machine is passed through the trial test and industrial operation test. sand suction machine has the
characteristics of high qaulity,energy saving, high hydraulic efficiency, good wear resistance and reliable operation in the delivery of solid particles. The sand suction machine is suitable for inland river dredging, coastal embankment , coal mines, power plants and other enterprises to transport solid particles containing slurry, medium particles up to 50-80 mm. The sand suction machine is also used to pump sand or slurry in the river, lake, sea and reservoir, land reclamation, pumping iron ore, gold sand.
Details Images
Apply for sand suction and dredging, extracting mud for ship, marine reclamation land, wharf building electric power and metallurgical industry for conveying tailing, and in coal washing industry for filtering coal slime.
Product Paramenters
|
model number
|
inlet
（inch）
|
exits
（inch）
|
Flow rate
(m3/h)
|
Head
(m)
|
Motor power
(kw)
|
Rotational speed
(r/min)
|
|
65NB-12
|
3
|
2.5
|
40
|
12
|
4
|
1480
|
|
80NB-9
|
3
|
3
|
60
|
9
|
4
|
1480
|
|
80NB-15
|
3
|
3
|
70
|
15
|
5.5
|
1480
|
|
80NB-20
|
4
|
3
|
100
|
20
|
11
|
1480
|
|
100NB-15
|
4
|
3
|
100
|
15
|
7.5
|
1480
|
|
100NB-15
|
4
|
4
|
120
|
15
|
11
|
1480
|
|
100NB-20
|
4
|
4
|
120
|
20
|
18.5
|
1480
|
|
100NB-16
|
4
|
4
|
180
|
16
|
15
|
1500
|
|
100NB-30
|
4
|
4
|
150
|
30
|
22
|
1700
|
|
150NB-22
|
6
|
6
|
250
|
22
|
30
|
1470
|
|
150NB-25
|
6
|
6
|
230
|
25
|
30
|
1450
|
|
150NB-30
|
6
|
6
|
250
|
30
|
45
|
1500
|
|
150NB-28
|
8
|
8
|
400
|
25
|
55
|
980
|
SThe performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
