Quick Details
-
Span:
-
4m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongye
-
Weight (KG):
-
500 kg
-
Product name:
-
Standing Jib Crane
-
Type:
-
JIB Arm Crane
-
Lifting mechanism:
-
Electric Chain Hoist
-
Crane feature:
-
Easy Operated JIB Crane
-
Control method:
-
Pendant control or remote control
-
Hoisting mechanism:
-
Hoist Electric
-
Color:
-
Yellow
-
Lifting capacity:
-
1t-16t
-
Lifting height:
-
3~10m
Quick Details
-
Rated Loading Capacity:
-
500kg-5000kg
-
Rated Lifting Moment:
-
180(kN.m)
-
Max. Lifting Height:
-
3-10m
-
Span:
-
4m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongye
-
Weight (KG):
-
500 kg
-
Product name:
-
Standing Jib Crane
-
Type:
-
JIB Arm Crane
-
Lifting mechanism:
-
Electric Chain Hoist
-
Crane feature:
-
Easy Operated JIB Crane
-
Control method:
-
Pendant control or remote control
-
Hoisting mechanism:
-
Hoist Electric
-
Color:
-
Yellow
-
Lifting capacity:
-
1t-16t
-
Lifting height:
-
3~10m

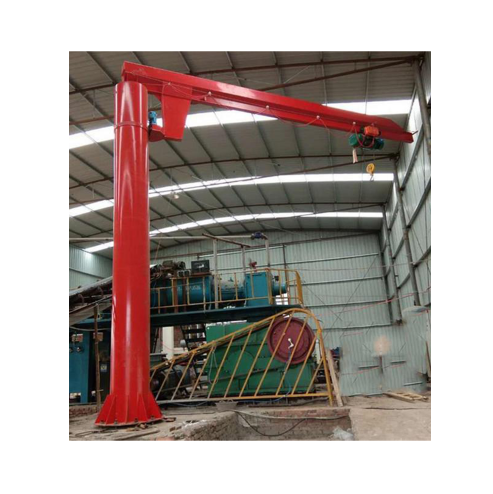

Pillar Jib Crane is widely used in machining workshop, product storage and dispatch warehouse, plastic injection molds changing, finished steel product industries, especially in the production lines, column mounted jib crane a type of crane that uses a mounted arm to lift, move and lower material. The jib crane installed and fixed on ground. The arm, mounted either perpendicular to or an acute angle upwards from a column(pillar), may rotate along its central axis through a limited arc or a full circle. This kind of jib crane is composed by column, beam, rotation structure , electric hoist and fixing parts, etc.
Product parameters:
| Model | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | |
| Rated capacity | t | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | m | 3 | 4 | |||
| Max. working range | m | 4 | 3 | |||
| Max. turning radius | m | 5 | 4.5 | |||
| Max. lifting torque | tm | 3 | 5.2 | 8.5 | 12.2 | 18.8 |
| Rotation angle | ° | ≤360 | ||||
| Lifting speed | m/min | 8;8/0.8 | ||||
| Trolley travelling speed | m/min | 20 | ||||
| Rotation speed | r/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
| Weight | kg | 1000 | 1150 | 1350 | 3500 | 4500 |
1.Free Standing column mounted on concrete foundation, erection and assembly and operation easily.
2.Pillar Jib Crane can rotate 360, 270 and 180 degree, matched with electric wire rope hoist or electric chain hoist.
3.Take up small space, easy installation and operation, simple structure, it is a perfect handling equipment used in small workshop.
4.Customized design for clients:Customized design according to the workshop or column size to satisfy clients’ different demand. Clients also can choose their favorite color for the jib crane
