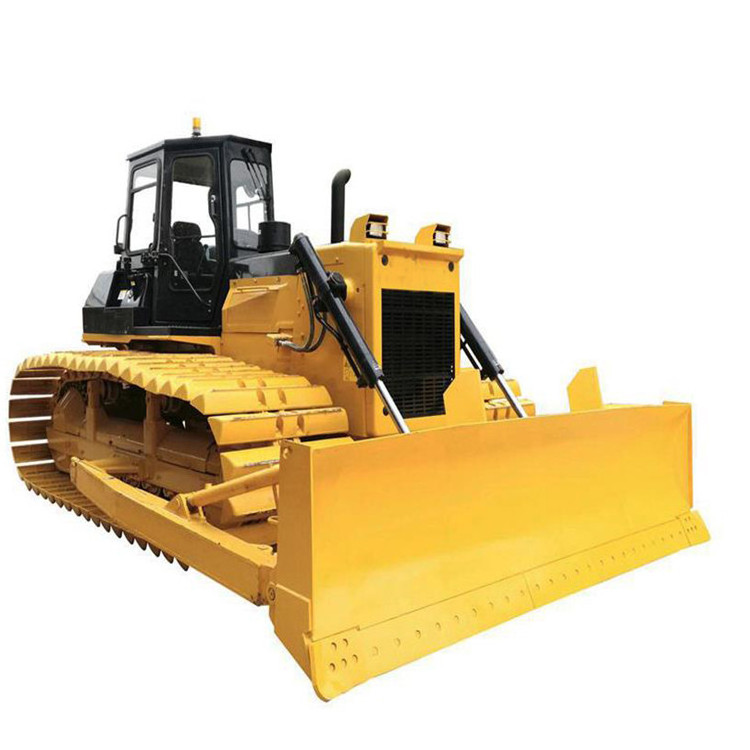

Cheap bulldozer price with Weichai engine

Cheap bulldozer price with Weichai engine

FOB Reference Price: Get Latest Price

≥1 Sets

US $65000

≥5 Sets

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HD16

Dimension(Long * Breadth * High):: 5140*3388*3032mm

After-sales Service Provided:: No overseas service provided

Product name:: bulldozer price,cheap bulldozer price,bulldozer with Weichai engine,

Color:: Yellow

Engine:: Weichai WD10G178E355

Model:: HD16

Type:: Bullldozer

Rated power:: 131/1850kW/rpm

Discharge:: 213L/min

Max pressure:: 14Mpa

Operating weight:: 17000Kg

Displacement:: 9.726L

Quick Details

Machine Weight:: 17000kg

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HD16

Dimension(Long * Breadth * High):: 5140*3388*3032mm

After-sales Service Provided:: No overseas service provided

Product name:: bulldozer price,cheap bulldozer price,bulldozer with Weichai engine,

Color:: Yellow

Engine:: Weichai WD10G178E355

Model:: HD16

Type:: Bullldozer

Rated power:: 131/1850kW/rpm

Discharge:: 213L/min

Max pressure:: 14Mpa

Operating weight:: 17000Kg

Displacement:: 9.726L

Cheap bulldozer price with Weichai engine ,

PRODUCT DESCRIPTION

HD16 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and

other characteristic, can adapt for severe working conditions,such as highway, railway, mining, airport construction.

1.Weichai WP10G178E355 engine,features the advantages of robust power, easy maintenance, and high combustion

efficiency.closed cooling system, forced air supply to enhance the cooling effect.

2.The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward.

It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and backwards.

transmission power and high productivity. 3 elements, single stage and single phase torque convertor features high

efficiency and capacity.

3.The rear axle adopts robot welding and numerical control machining technology to ensure the welding strength and sealing

4.The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling

system to transmit the working load and impact load to the main frame during working, which effectively improves the

stability of bulldozers.

5.Hydraulic power steering, which adopts wet, multi-leaf spring compression, hydraulic separation structure, steering

brake adopts hydraulic power, for wet, floating belt type.

6.The electrical system adopts the water-proof type connector and the new type relay injection molding instrument to

guarantee the reliability of the electrical system.

TECHNOLOGY PARAMETER

Items	HD16
Type	160HP Hydraulic standard
Engine model	Weichai WP10G178E355
Displacement	9.726 L9.726 L
Rated power	131/1850 kw/rpm
Max.torque	830/1000-1200 N.m/rpm
Operating weight	17000 Kg
Dimension(no ripper)	5140×3388×3032 mm
Min ground clearance	405 mm
Ground pressure	0.067 MPa
Track gauge	1880 mm
Dozing capacity	4.55 m³
Blade width	3390 mm
Blade height	1150 mm
Max drop below ground	540 mm
Track shoe width	510 mm
Pitch	203.2 mm
Quantity of track link	37
Quantity of Carrier rollers	4
Quantity of Track rollers	12
Max pressure	14 MPa
Discharge	213 L/min
Max tractor force	146 KN
Grade ability	30°
Gear 1st speed	3.29 km/h
Max speed	9.63 km/h
Main clutch force	145 N
Steering clutch force	80 N
Mechnical transmission force	112 N
Hydraulic transmission force	46 N
