Gauge:one outlet gauge (1000PSI pressure gauge range)
Material:ss304
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RW75
-
Material:
-
316L SS
-
Maximum inlet pressure:
-
2000PSI
-
Adjustable pressure:
-
0-150, 0-300, 0-600, 0-800, 0-1500psig
-
Body ports:
-
1/4NPT F
-
Body material:
-
ss316L,brass
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AFKLOK
-
Model Number:
-
RW75
-
Material:
-
316L SS
-
Maximum inlet pressure:
-
2000PSI
-
Adjustable pressure:
-
0-150, 0-300, 0-600, 0-800, 0-1500psig
-
Body ports:
-
1/4NPT F
-
Body material:
-
ss316L,brass
Product Description
RW75 series medium-high back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.
Technical parameters
|
Maximum Inlet Pressure
|
2000PSI
|
|
|
||
|
Ajustable pressure
|
0-150,0-300,0-600,0-800,0-1500psig
|
|
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
|
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
|
|
||
|
Leakage Rate
|
no gas leakage
|
|
|
||
|
Cv value
|
0.08
|
|
|
||
Material of Parts
|
Body
|
316L
|
|
|
||
|
Seat
|
PCTFE, PTFE,Vespel
|
|
|
||
|
Bonnet
|
ss316L, brass
|
|
|
||
|
diaphragm
|
ss31L, ELgiloy
|
|
|
||
Detailed Image

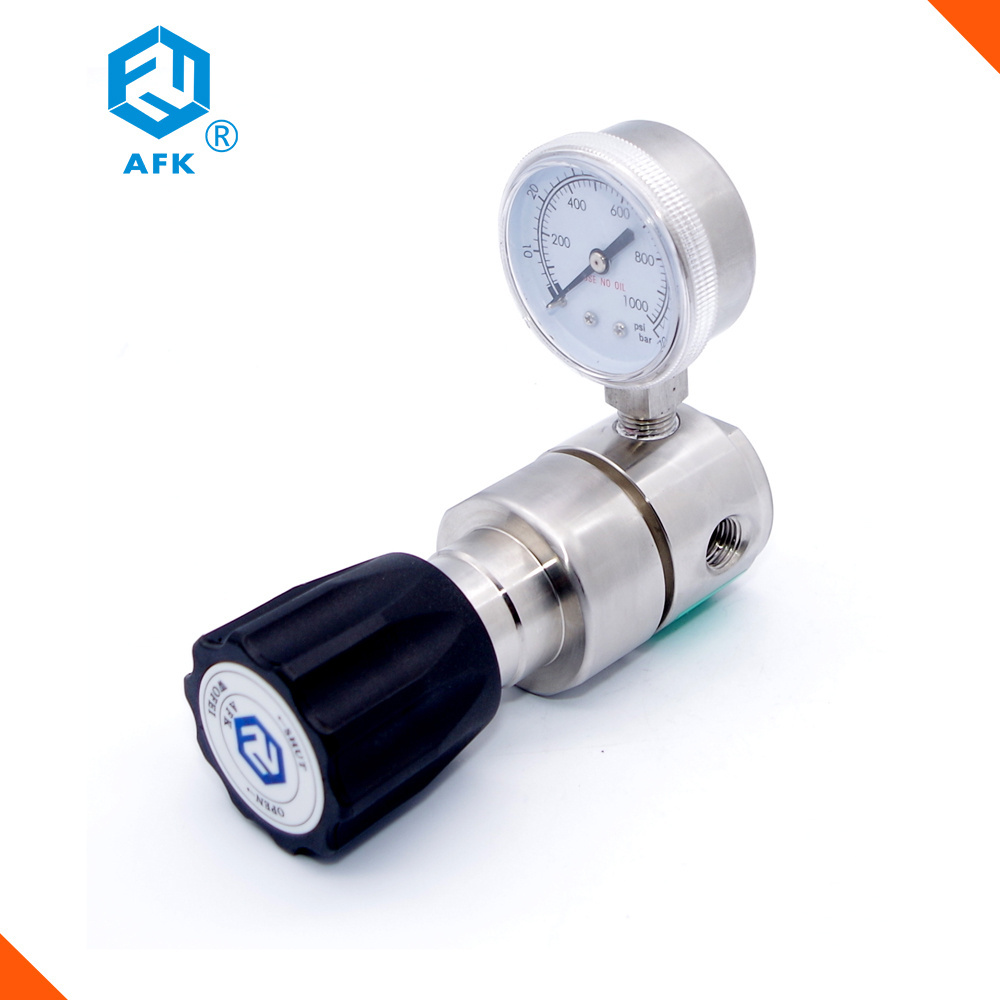

RW75 Back Pressure Regulator
Brand: AFK
RW75 Back Pressure Regulator
Body ports : three
Structure: piston
Body thread:1/4"NPT (F) ~3/4"NPT(F)
Mount: Panel mout and wall mount are available
Ordering Information
Once you send the inquiry, pls send order code e.g.RW75-L-B-G-G-00-00-P, or send following information to us:
1.What media is used for?
2. What is atual inlet pressure not pressure gauge range?
3. Material: ss316L or nickel plated brass?
4.Quantity?
|
|
|
|
|
|
|
|
|
|||||||
|
RW75
|
L:L:ss316L
|
A
|
G:0-150psi
|
G:Mpa
|
00:1/4"NPT F
|
00:1/4"NPT F
|
P:panel mount
|
|||||||
|
|
B:brass
|
A
|
I:0-300psi
|
P:PSI/bar
|
01:1/4"NPT M
|
01:1/4"NPT M
|
|
|||||||
|
|
|
B
|
K:0-600psi
|
W:none
|
02:3/8"NPT F
|
02:3/8"NPT F
|
|
|||||||
|
|
|
|
L:0-800psi
|
|
04:1/2"NPT F
|
04:1/2"NPT F
|
|
|||||||
|
|
|
|
H:0-1500psi
|
|
06:3/4NPT F
|
06:3/4NPT F
|
|
|||||||
|
Other connections are available
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||
Flow Chart
Application
Laboratory
Electronic factory
Laser
Semiconductor
The quality of metrology institute
Aquarium
FAQ
Q: What is a backpressure valve? What does it do?
A: A backpressure valve is a device used to control fluid pressure. It stabilises the back pressure of a fluid system by adjusting the opening of the valve and ensures that the system works within safe operating limits. It is primarily used to protect piping, equipment and systems from damage caused by excessive pressure.
Q: How is a backpressure valve different from other types of valves?
A: Back pressure valves are different from other types of valves (e.g. safety valves, regulating valves, etc.). The primary function of a backpressure valve is to maintain a certain level of backpressure on a pipeline or system, not to regulate flow or relieve overpressure. It is typically used in specific applications where back pressure control is required.
Q: How does a back pressure valve work?
A: Back pressure valves control back pressure by restricting the passage of fluid by adjusting the opening of the valve. When the back pressure is too high, the valve automatically opens to reduce fluid resistance and lower the back pressure. When the back pressure is too low, the valve automatically closes to increase the resistance of the fluid and increase the back pressure.
Q: What industries or applications are back pressure valves used in?
A: Back pressure valves are widely used in many industries and applications, including chemical, oil and gas, power, pharmaceutical, food and beverage. They are often used to control reactor pressure, steam systems, gas pipework, water treatment systems and more.
Q: How do I choose the right back pressure valve?
A: Selecting the right backpressure valve requires consideration of several factors, such as fluid type, operating pressure range, flow requirements, temperature range, material requirements, and more. We recommend contacting our team of engineers with specific application parameters and requirements in order to provide you with the best solution.
Q: What are the maintenance and service requirements for backpressure valves?
A: Backpressure valves typically require regular maintenance and servicing to ensure proper operation and extended service life. This includes cleaning the valve and seat, checking that seals are in good condition, lubricating moving parts, etc. We provide detailed maintenance manuals and operating instructions to help you properly maintain your back pressure valve.
