Quick Details
-
Output Speed:
-
0-150rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
25 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KILOMEGA
-
Color:
-
blue
-
Type:
-
TA
-
Packing:
-
Wooden Box
-
Keyword:
-
gearbox
-
Brand:
-
kilomega
-
Quality:
-
High Qaulity
-
Logo:
-
customized
-
Size:
-
50*50*40cm
-
Application:
-
Mining Factory
Quick Details
-
Gearing Arrangement:
-
PTO Shaft
-
Output Torque:
-
7840n.m-18000n.m
-
Input Speed:
-
1500rpm
-
Output Speed:
-
0-150rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
25 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KILOMEGA
-
Color:
-
blue
-
Type:
-
TA
-
Packing:
-
Wooden Box
-
Keyword:
-
gearbox
-
Brand:
-
kilomega
-
Quality:
-
High Qaulity
-
Logo:
-
customized
-
Size:
-
50*50*40cm
-
Application:
-
Mining Factory
|

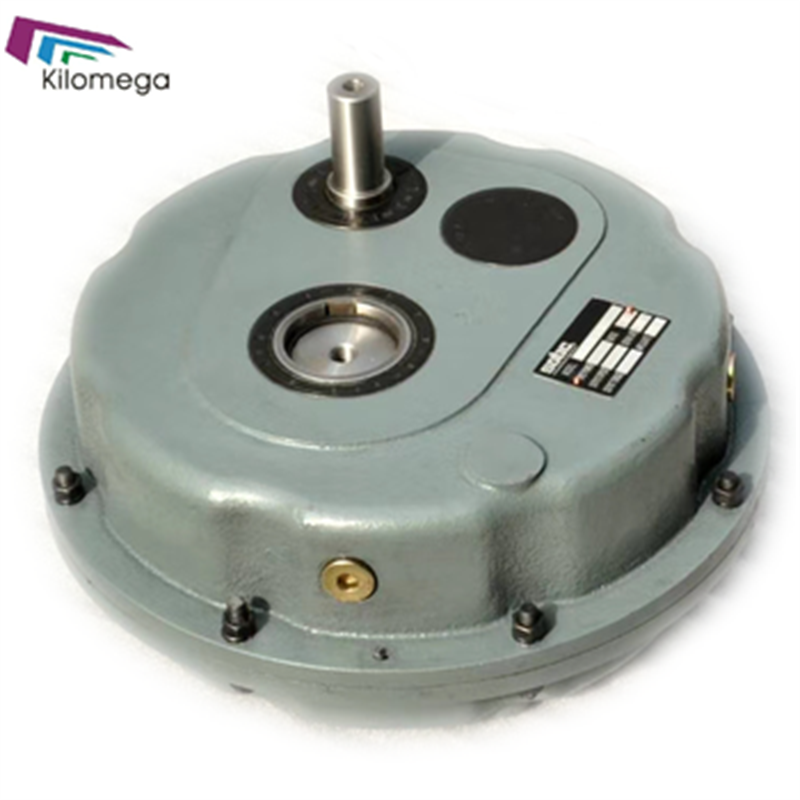

TA Shaft Mounted Reducer
|
Output Shaft Bore [mm]
|
Ratio(i)
|
Rated torque
|
|
|
KTA30
|
Φ30
|
7.10,12.5
|
180N.m
|
|
|
KTA35
|
Φ35
|
5,10,15,20,25
|
420N.m
|
|
|
KTA40
|
Φ40
|
5,10,12.5,15.20,25
|
900N.m
|
|
|
|
Φ45
|
|
|
|
|
KTA45
|
Φ45
|
5,10,12.5,15.20,25
|
UOON.m
|
|
|
|
Φ50
|
|
|
|
|
|
Φ55
|
|
|
|
|
KTA50
|
Φ50
|
5,10,12.5,15,20,25
|
2300N.m
|
|
|
|
Φ55
|
|
|
|
|
|
Φ60
|
|
|
|
|
KTA60
|
Φ60
|
5,10,12.5,15,20,25
|
3600N.m
|
|
|
|
Φ70
|
|
|
|
|
KTA70
|
Φ70
|
5,10,125,15,20,25,31
|
5100N.m
|
|
|
|
Φ85
|
|
|
|
|
KTA80
|
Φ80
|
5,10,12.5,15,20,25,31
|
7000N.m
|
|
|
|
Φ100
|
|
|
|
|
KTA100
|
Φ100
|
5,10,12.5,15,20,25,31
|
11000N.m
|
|
|
|
Φ125
|
|
|
|
|
KTA125
|
Φ125
|
5,10,12.5,15.20,25,31
|
17000N.m
|
|
|
|
Φ135
|
|
|
|
|
SMR Model NO.
|
Ouipui Shaft Bore [mm]
|
|
Ratio(i)
|
|
|
|
Standard
|
Alternative
|
5：1
13：1
20：1
|
|
|
B
|
Φ30
|
Φ40
|
|
|
|
C
|
Φ40
|
Φ50
|
|
|
|
D
|
Φ50
|
Φ55
|
|
|
|
E
|
Φ55
|
Φ65
|
|
|
|
F
|
Φ65
|
Φ75
|
|
|
|
G
|
Φ75
|
Φ85
|
|
|
|
H
|
Φ85
|
Φ100
|
|
|
|
J
|
Φ100
|
Φ120
|
|
|
Exporting to Saudi, UAE, Jordan, Oman, Syria, Yemen, Kuwait, Egypt, Libya, Algeria, Morocco, Tunisia, Tanzania, Sudan, Kenya, Uganda, Ethiopia, Burkina Faso, Ecuador, Columbia, Venezuela, Peru, Brazil, Chile, Uruguay, Argentina, Bolivia, Malaysia, Indonesia, Vietnam, Thailand, Srilanka, and so on more than 70 countries.
KTA series shaft mounted gearbox(speed reducer) with helical hardened gears has the characteristics of high carrying capacity, smooth transmission, light weight, low energy consumption and so on. Input shaft of KTA speed reducer is connected with gear motor by belt pulley, hollow output shaft is linked with a key. It can be replaced by electric drum as power for belt conveyors and lifting equipments. KTA series shaft mounted gearbox could be attached with back-stop to avoid the working machine back skating, and conveniently mounted by tie rod. KTA series shaft mounted speed reducer is widely applied in the mining equipments, concrete mixing batching plant, stone crushers, sand making production line and other belt conveyors, mechanical transmission areas.
Mechanical belt conveyors drive system is composed of KTA shaft mounted speed reducer, torque arm, pulleys and gear motors, whose power transmission from the gear motor to the gearbox through the pulley, and then speed reducer passed to the drive pulley through the hollow output shaft and the gearbox is fixed by torque arm, anti-slip device can be configured. The system is convenient to install,use and maintain.
FAQ >>>
1. What can we buy from you?
Conveyor belt, roller, screen mesh, crusher spares, all kinds of poer transmission parts
2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
3. Do you have any MOQ limit for orders?
Low MOQ, 50m for conveyor belt/10pc for rollers
4. Is it OK to print my logo on product?
Yes. Please inform us your logo or design before mass production
5. How to guarantee your quality?
We are one of the top suppliers of International famous mining company over years. Excellent quality is well accepted.
Conveyor belt, roller, screen mesh, crusher spares, all kinds of poer transmission parts
2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
3. Do you have any MOQ limit for orders?
Low MOQ, 50m for conveyor belt/10pc for rollers
4. Is it OK to print my logo on product?
Yes. Please inform us your logo or design before mass production
5. How to guarantee your quality?
We are one of the top suppliers of International famous mining company over years. Excellent quality is well accepted.
