Quick Details
-
Product name:
-
Ventilation Tunnel Blower Fan
-
Keywords:
-
DK Axial Flow Fan
-
Fan model:
-
DK40-6
-
mine security certificate:
-
FBCDZNo15/2*37
-
Machine number:
-
15
-
Speed r/min:
-
980
-
Power (kW):
-
2*37
-
Air volume m3/s:
-
18.2-43.6
-
Full pressure Pa:
-
382-1690
-
Application:
-
mining axial flow fan
Quick Details
-
Weight (KG):
-
20
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yimei
-
Product name:
-
Ventilation Tunnel Blower Fan
-
Keywords:
-
DK Axial Flow Fan
-
Fan model:
-
DK40-6
-
mine security certificate:
-
FBCDZNo15/2*37
-
Machine number:
-
15
-
Speed r/min:
-
980
-
Power (kW):
-
2*37
-
Air volume m3/s:
-
18.2-43.6
-
Full pressure Pa:
-
382-1690
-
Application:
-
mining axial flow fan
Products Description
Introduction of DK Series Mine Axial Flow Fan Underground Mining Industrial Ventilation Fan Battery Operated Mining Fan
When the DK series mine energy-saving axial flow fan is used as the main fan and the machine station fan, it should be equipped with a special diffuser. The main fan of the surface is equipped with a diffuser to convert part of the dynamic pressure into static pressure and reduce the dynamic pressure loss at the outlet to achieve energy saving. The fan installed in the well is equipped with a diffuser, which can reduce the local resistance coefficient and reduce the dynamic pressure value of the diffuser outlet, thereby greatly reducing the local resistance of the fan device and saving ventilation power consumption: DK series mine energy-saving axial ventilation The machine has a special matching diffuser, and the diffuser inlet flange is bolted to the fan outlet flange.
zmwm02
Product Paramenters
Parameters of DK Series Mine Axial Flow Fan Underground Mining Industrial Ventilation Fan Battery Operated Mining Fan
Contact Us For More Product Details!
|
Fan model
|
Corresponding to the name of the mine security certificate
|
Machine number
|
Speed r/min
|
Power (kW)
|
Air volume m3/s
|
Full pressure Pa
|
|
DK40-6
|
FBCDZNo15/2*37
|
15
|
980
|
2*37
|
18.2-43.6
|
382-1690
|
|
DK40-6
|
FBCDZNo16/2*55
|
16
|
980
|
2*55
|
22.1-52.9
|
435-1923
|
|
DK40-6
|
FBCDZNo17/2*75
|
17
|
980
|
2*75
|
26.5-63.5
|
491-2171
|
|
DK40-6
|
FBCDZNo18/2*90
|
18
|
980
|
2*90
|
31.5-75.4
|
551-2433
|
|
DK40-6
|
FBCDZNo19/2*132
|
19
|
980
|
2*132
|
37.0-88.6
|
614-2711
|
|
DK40-6
|
FBCDZNo20/2*160
|
20
|
980
|
2*160
|
43.2-103.4
|
680-3004
|
|
DK40-6
|
FBCDZNo21/2*200
|
21
|
980
|
2*200
|
50.0-119.7
|
750-3312
|
|
DK40-8
|
FBCDZNo18/2*37
|
18
|
730
|
2*37
|
23.5-56.1
|
306-1350
|
|
DK40-8
|
FBCDZNo19/2*55
|
19
|
730
|
2*55
|
27.6-66.0
|
341-1504
|
|
DK40-8
|
FBCDZNo20/2*75
|
20
|
730
|
2*75
|
32.2-77.0
|
377-3334
|
|
DK40-8
|
FBCDZNo21/2*90
|
21
|
730
|
2*90
|
37.3-89.1
|
416-1838
|
|
DK40-8
|
FBCDZNo22/2*110
|
22
|
730
|
2*110
|
42.8-102.5
|
457-2017
|
|
DK40-8
|
FBCDZNo23/2*132
|
23
|
730
|
2*132
|
48.9-117.1
|
499-2204
|
|
DK40-8
|
FBCDZNo24/2*160
|
24
|
730
|
2*160
|
55.6-133.0
|
543-2400
|
|
DK40-8
|
FBCDZNo25/2*200
|
25
|
730
|
2*200
|
62.9-150.4
|
589-2605
|
Details Images

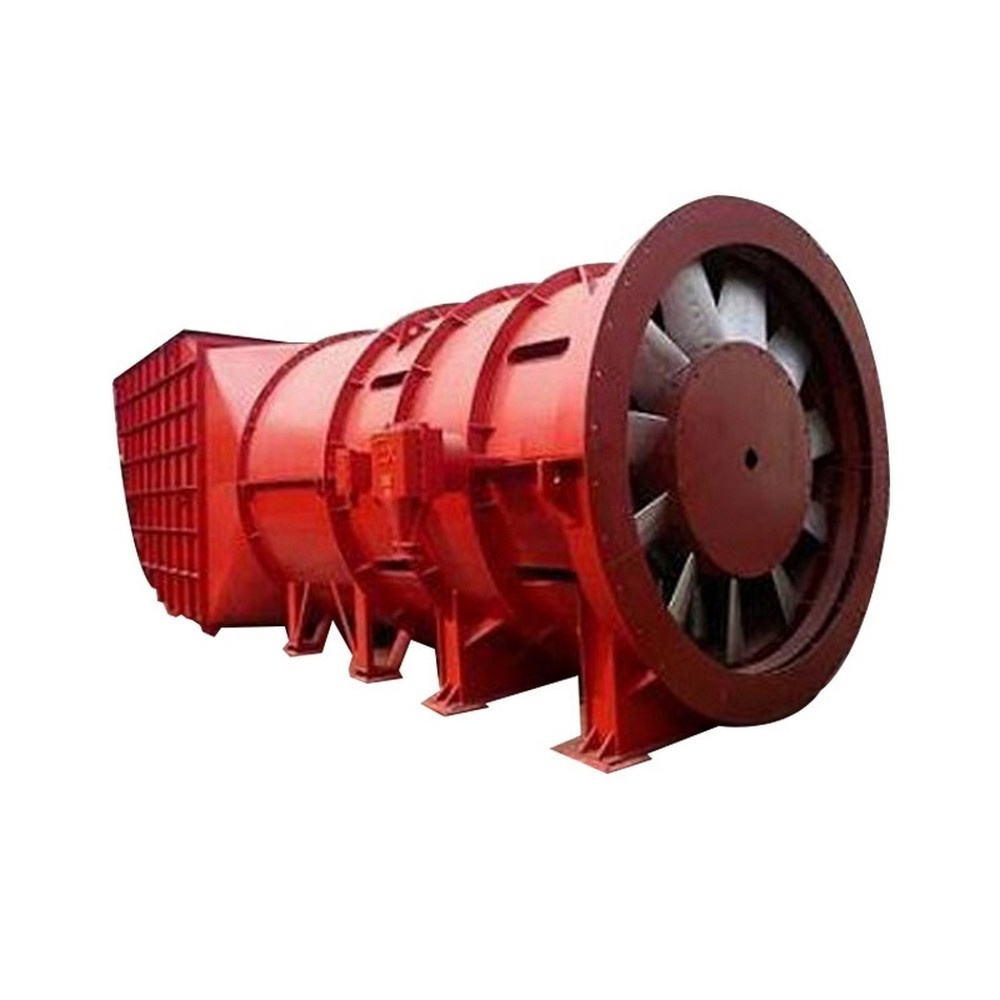

Photos of DK Series Mine Axial Flow Fan Underground Mining Industrial Ventilation Fan Battery Operated Mining Fan
FAQ
Are you the manufacuturer or trade company ?
We are the manufacturer for producing
coal mine ventilation fan
,
mining fan blower
,and verious attachments With brand name of Yimei.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order?
The producing time fast to 15-20 workings if you will customerized machine.The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before shipping. If the machines in stock, pay 100% then delivery.
