Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
3050*2000*1620mm
-
Power (kW):
-
3
-
Weight (KG):
-
1150
-
Core Components:
-
Machine
-
Z-axis worksize:
-
200mm
-
Control system:
-
Mach3-USB
-
Cooling way:
-
Water cooling
-
Motor:
-
Stepper
-
Transmission way:
-
XY gear rack and Z ballscrew
-
Working Speed:
-
0-15000mm/min
-
Command code:
-
HPGL, G code
-
Compatible Software:
-
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 etc
-
Rail guide:
-
Square rail guide Hiwin
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
12000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
3050*2000*1620mm
-
Power (kW):
-
3
-
Weight (KG):
-
1150
-
Core Components:
-
Machine
-
Z-axis worksize:
-
200mm
-
Control system:
-
Mach3-USB
-
Cooling way:
-
Water cooling
-
Motor:
-
Stepper
-
Transmission way:
-
XY gear rack and Z ballscrew
-
Working Speed:
-
0-15000mm/min
-
Command code:
-
HPGL, G code
-
Compatible Software:
-
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 etc
-
Rail guide:
-
Square rail guide Hiwin

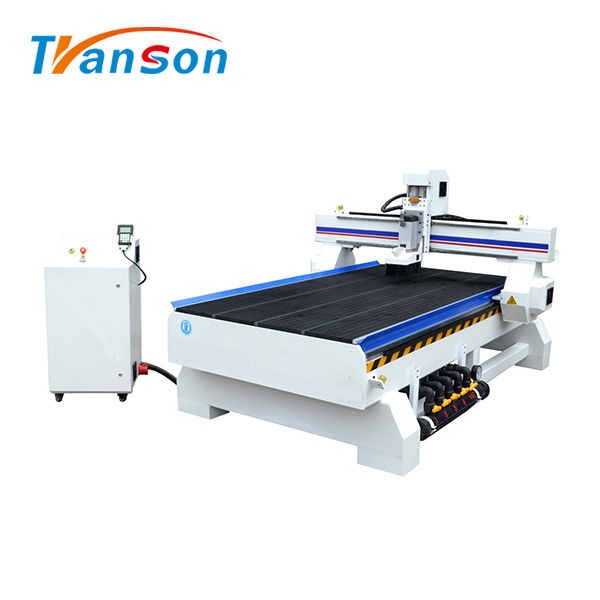

Factory Sale CNC RouterTSW1325B Wood Carving Machine
FEATURES:
1. The whole machine body is cast aluminum, which has strong bearing and makes the machine work stably
2. It adopts high precision rack and linear guide which can eliminate the gap automatically,Advertising CNC Router takes ballscrew structure, which guarantees the precision
3. High-power water-cooled brushless frequency conversion spindle, which is durable and has a strong cutting power
4. Using high-speed driver, stepping motor, which improves work efficiency.
5. Unique dustproof, waterproof device, which effectively keep mechanical transmission part clean, rustless, and makes the maintenance more easily
6. Table moving design, more precision.
7. Strong compatibility, suitable for all kinds of numerical control software: Artcam type3, Pore, Castmate, and various CAD/CAM software. It can easily make anaglyph, gravure and three-dimensional art words, etc
8. Provide with power off protection.
9. Very easy operate for begginer.
Parameter:
|
Model |
TSW1325B |
|
|
Machine body |
whole cast iron or cast aluminum |
|
|
Work dimensions |
1300x2500mm |
|
|
Body dimensions |
3050x2000x1620mm |
|
|
Z-axis working area |
200mm |
|
|
Max feeding height |
60mm |
|
|
Max Cut thickness of material |
30mm |
|
|
Max.speed |
15000mm/min |
|
|
Working speed |
0-15000mm/min |
|
|
Mechanical precision |
0.05mm |
|
|
Software |
type3,Artcut,Artcam software |
|
|
Power |
3000W |
|
|
Working voltage |
AC 220V/50Hz |
|
|
Drive type |
stepper motor |
|
|
Spindle |
1500W variable speed |
|
|
Spindle speed |
0-24,000rpm |
|
|
Blade diameter |
1-6mm |
|
|
Control system |
Ncstudio |
|
|
Command |
HPGL.G code,u00,mmg,plt |
|
SUITABLE FOR INDUSTRY:
For metal processing industry, advertisement engraving and cutting, billboard industry, cutting plate production, LED/ neon light through, literally shaped hole cut, stone processing,mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting,light equipment mold processing,sign manufacturing, acrylic board processing
Beside above the Transon CNC Router also can be widely use for architechrural models schools, companies and governments.
SUITABLE FOR MATERIALS:
This machine special design for metal processing, like gold, silver, brass, aluminum, etc. Samples show you below:
