- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
GUA
-
Brand Name:
-
Sembsun
-
Dimension(L*W*H):
-
3770*670*1450mm
-

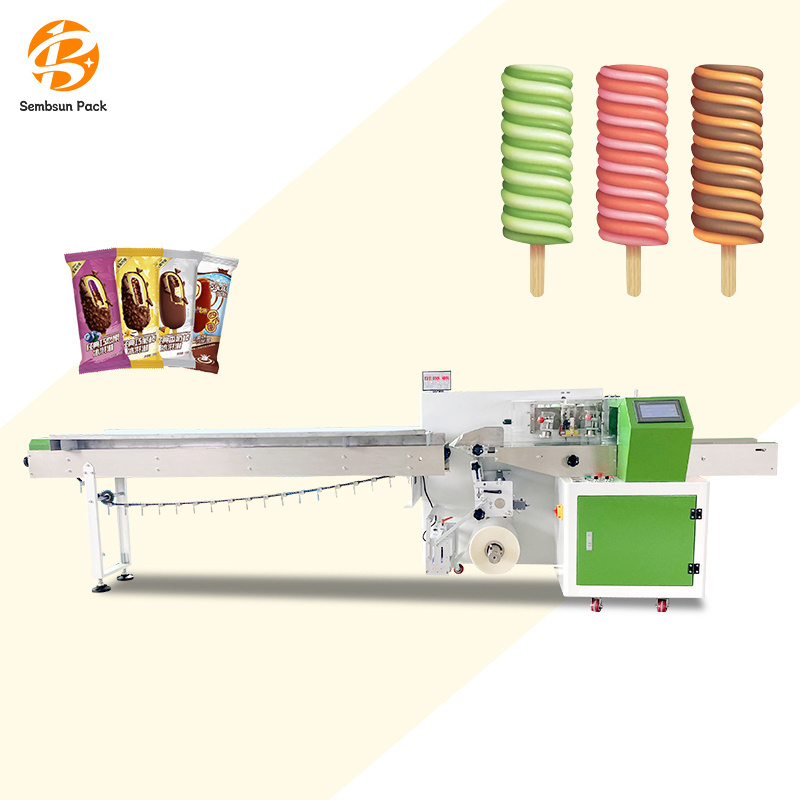

Product name:
-
Flow packing machine
-
Material:
-
Stianless Steel
-
Packing Film Material:
-
OPP/CPP PT/PE KOP/CPP ALU-FOIL
-
Bag length:
-
45-330 mm
-
Bag width:
-
25-110 mm
-
Bag type:
-
Pillow Bag
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Shape of sealed bag:
-
Back sealing(central sealing )
-
Sealing type:
-
Hot Sealing
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING, counting
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Weight (KG):
-
400
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
GUA
-
Brand Name:
-
Sembsun
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Product name:
-
Flow packing machine
-
Material:
-
Stianless Steel
-
Packing Film Material:
-
OPP/CPP PT/PE KOP/CPP ALU-FOIL
-
Bag length:
-
45-330 mm
-
Bag width:
-
25-110 mm
-
Bag type:
-
Pillow Bag
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Shape of sealed bag:
-
Back sealing(central sealing )
-
Sealing type:
-
Hot Sealing
Main Features：
1.Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2.High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3.Positioned stop function ,without sticking knife or wasting film.
4.Simple driving system,reliable working ,convenient maintenance.
5.All control is realized through software ,easy for function adjusting and technical upgrade .
2.High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3.Positioned stop function ,without sticking knife or wasting film.
4.Simple driving system,reliable working ,convenient maintenance.
5.All control is realized through software ,easy for function adjusting and technical upgrade .
|
Model
|
D-250(X)
|
D-320
|
D-350(X)
|
D-400
|
D-450(X/W)
|
D-600(X/W)
|
|||||
|
Capacity(B/M)
|
40-330
|
40-230
|
40-230
|
30-180
|
20-80
|
20-80
|
|||||
|
Bag width(mm)
|
30-110
|
50-160
|
50-160
|
50-180
|
50-160
|
50-200
|
|||||
|
Bag length(mm)
|
45-280
|
65-330
|
30-160
|
130-400
|
120-450
|
120-450
|
|||||
|
Film width
|
Max25mm
|
Max320mm
|
Max350mm
|
Max400mm
|
Max450mm
|
Max600mm
|
|||||
|
Packing volume
|
3.6m³
|
4.5m³
|
4.6m³
|
4.7m³
|
5.5m³
|
6.2m³
|
|||||
|
Powder supply
|
220V 50/60Hz
|
|
|
|
|
|
|||||
|
Powder
|
1.5KW
|
1.7KW
|
2KW
|
2KW
|
2.3KW
|
3KW
|
|||||
|
Machine weight
|
300kg
|
380kg
|
400kg
|
420kg
|
450kg
|
500kg
|
|||||
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: How does your factory do regarding quality control?
A: We pay much attention on quality controlling and strictly follow the Professional standard forms from getting order, parts
procession,assembly for whole set of machine and debug to the shipment.
Q: Where is your factory located? How can I visit there?
A: Our factory located at Guangdong province ,China.You can fly to Guangzhou Baiyun air port.We will arrange to pick you up from
the airport ;it is Around 30 mins from the airport to our factory by car.Or you can take fast Train to Guangzhou from other
countries in China.We will pick you up from the station.
Q: What’s the service and guarantee can you offer?
A: One year guarantee for main parts of machine like PLC,touch screen,ect;Machine installation and worker training service;Free
technical support for lifelong;Material support.
A: We are a factory and manufacturer.
Q: How does your factory do regarding quality control?
A: We pay much attention on quality controlling and strictly follow the Professional standard forms from getting order, parts
procession,assembly for whole set of machine and debug to the shipment.
Q: Where is your factory located? How can I visit there?
A: Our factory located at Guangdong province ,China.You can fly to Guangzhou Baiyun air port.We will arrange to pick you up from
the airport ;it is Around 30 mins from the airport to our factory by car.Or you can take fast Train to Guangzhou from other
countries in China.We will pick you up from the station.
Q: What’s the service and guarantee can you offer?
A: One year guarantee for main parts of machine like PLC,touch screen,ect;Machine installation and worker training service;Free
technical support for lifelong;Material support.
