Quick Details
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
400*300*300
-
Weight:
-
35 KG
-
The regular time:
-
999s
-
Outside dimension:
-
400*300*(300+50*N)mm
-
Vibrating frequency:
-
1440n/min
-
Model:
-
QZ-200
-
Package:
-
Wooden Case
-
Noise:
-
<50dB
-
Power:
-
0.125kw
-
Amplitude:
-
0-3MM
-
Screen diameter:
-
200, 100, 75 MM
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Qianzhen
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
400*300*300
-
Weight:
-
35 KG
-
The regular time:
-
999s
-
Outside dimension:
-
400*300*(300+50*N)mm
-
Vibrating frequency:
-
1440n/min
-
Model:
-
QZ-200
-
Package:
-
Wooden Case
-
Noise:
-
<50dB
-
Power:
-
0.125kw
-
Amplitude:
-
0-3MM
-
Screen diameter:
-
200, 100, 75 MM
Products Description

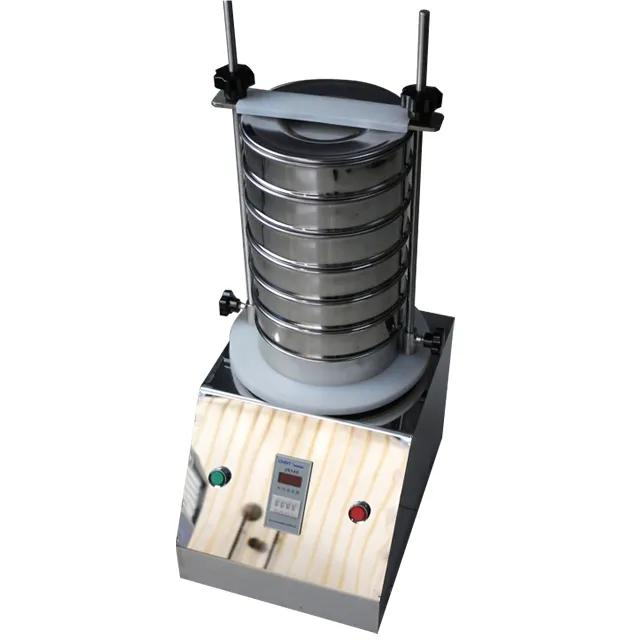

Standard test sieve
Standard test sieves are equipment that integrates powder grading and liquid filtration, also known as analytical sieves,inspection sieves, etc; Widely used in laboratories and quality inspection rooms for precise analysis of particle size structure of particles and powder materials, as well as testing and analysis of liquid solid content, it has the characteristics of low noise, high efficiency, and high accuracy. The general diameter is Φ 200, Φ 300, Φ 400, can also be customized according to your requirements.
Product Paramenters
|
Name
|
|
unit
|
Data
|
|
Standard sieve
|
|
piece
|
1-7
|
|
Sieve diameter
|
|
mm
|
200,300,400
|
|
Sieve size
|
|
mm
|
0.038-3
|
|
noise
|
|
db
|
<50
|
|
One-time feeding quantity
|
|
g
|
>200
|
|
Amplitude
|
|
mm
|
<5
|
|
electric machinery
|
voltage
|
v
|
220
|
|
electric machinery
|
speed
|
r/min
|
1420
|
|
|
power
|
kw
|
0.18
|
|
Overall dimension
|
|
mm
|
360*300*736
|
|
Weight
|
|
kg
|
35
|
